| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

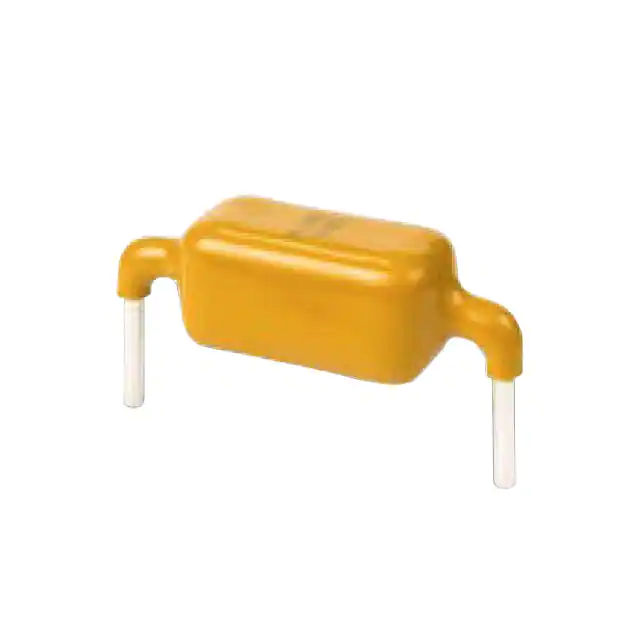

PTVS1-380C-THTVS DIODE 380VWM 520VC |
2,755 | 28.49 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 380V | 401V | 520V (Typ) | 1000A (1kA) (8/20µs) | - | No | General Purpose | 120pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
PTVS15-058C-SHTVS DIODE 58VWM 110VC |
3,121 | 30.67 |
RFQ |
Datasheet |
2-SMD | Bulk | - | Active | Zener | - | 1 | 58V | 64V | 110V | 15000A (15kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | Surface Mount |
|
PTVS15-076C-SHTVS DIODE 76VWM 150VC |
3,779 | 36.49 |
RFQ |
Datasheet |
2-SMD | Bulk | - | Active | Zener | - | 1 | 76V | 85V | 150V | 15000A (15kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
PTVS1-066C-THTVS DIODE 66VWM 86VC AXIAL |
3,591 | 39.08 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 66V | 71V | 86V (Typ) | 1000A (1kA) (8/20µs) | - | No | General Purpose | 744pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|

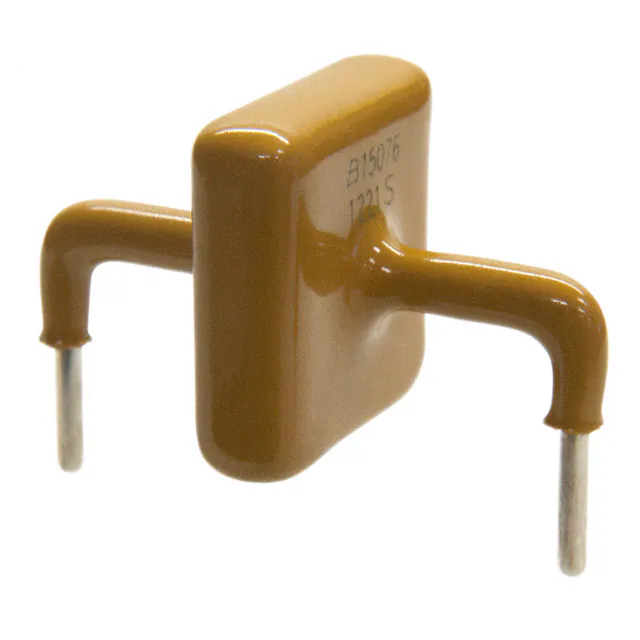

PTVS15-058C-THTVS DIODE 58VWM 110VC AXIAL |
3,530 | 45.93 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 58V | 64V | 110V | 15000A (15kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | Through Hole |
|
SM8S36A-QTVS DIODE 36VWM 58.1VC DO218 |
750 | 3.12 |
RFQ |
Datasheet |
DO-218AB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SM8SF-Q | Active | Zener | 1 | - | 36V | 40V | 58.1V | 114A | 6600W (6.6kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount |
|

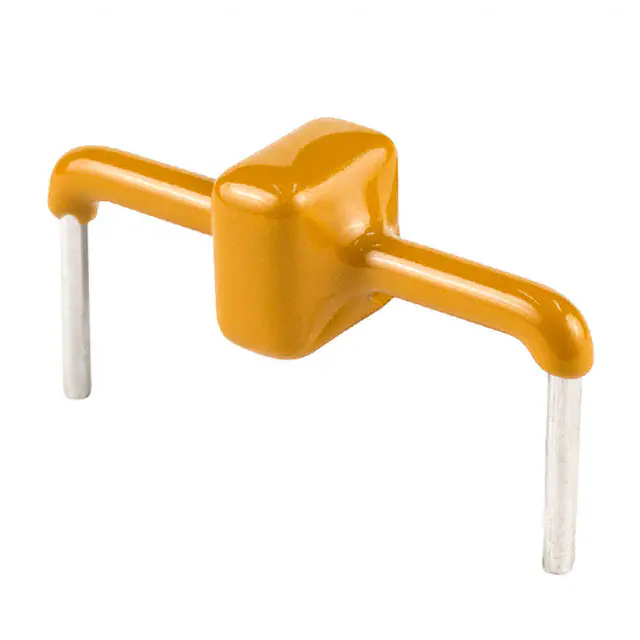

PTVS3-076C-THTVS DIODE 76VWM 140VC AXIAL |
3,779 | 21.68 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 76V | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | Through Hole |
|

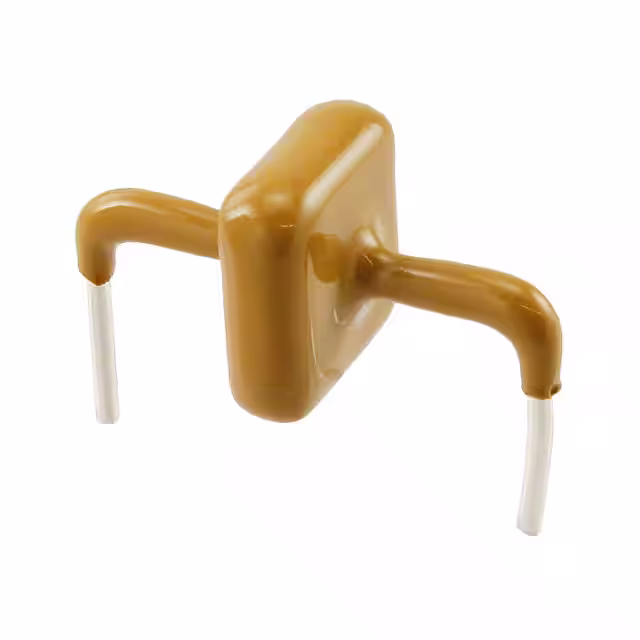

PTVS10-076C-THTVS DIODE 76VWM 140VC AXIAL |
2,343 | 27.73 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 76V | 85V | 140V | 10000A (10kA) (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | Through Hole |
|
PTVS10-470C-THTVS DIODE 470VWM 630VC |
2,833 | 152.90 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 470V | 470V | 630V | 10000A (10kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | Through Hole |
|
CDSOT23-T24CAN-QTVS DIODE 24VWM 40VC SOT23-3 |
755 | 0.38 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 24V | 26.2V | 40V | 8A (8/20µs) | - | No | Automotive, CAN | 22pF @ 1MHz | -40°C ~ 150°C (TJ) | Surface Mount |
|
SMBJ54CATVS DIODE 54VWM 87.1VC SMB |
775 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 54V | 60V | 87.1V | 6.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ15CATVS DIODE 15VWM 24.4VC SMB |
775 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
P6SMB6.8CATVS DIODE 5.8VWM 10.5VC DO214AA |
688 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | P6SMB | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 58.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ7.0CATVS DIODE 7VWM 12VC SMB |
2,442 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 7V | 7.78V | 12V | 50A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ7.5CATVS DIODE 7.5VWM 12.9VC SMB |
360 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ75CATVS DIODE 75VWM 121VC SMB |
240 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 75V | 83.3V | 121V | 5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ11CATVS DIODE 11VWM 18.2VC SMB |
200 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 33A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ18CATVS DIODE 18VWM 29.2VC SMB |
2,855 | 0.39 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
P6SMB15CATVS DIODE 12.8VWM 21.2VC DO214AA |
820 | 0.40 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 28.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ160CATVS DIODE 160VWM 259VC SMB |
910 | 0.41 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 160V | 178V | 259V | 2.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
