| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDR0524SMUTAGTVS DIODE 5VWM 15VC 10UDFN |
9,911 | 0.44 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5V (Max) | 5.5V | 15V | 1A (8/20µs) | - | No | HDMI | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMF05T1GTVS DIODE 5VWM 12.5VC SC88A |
8,906 | 0.44 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5V | 6V | 12.5V | 12A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

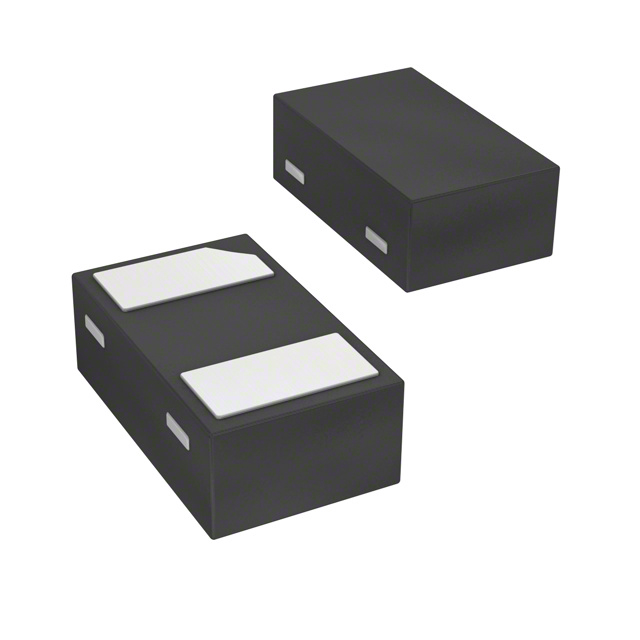

SZESD7451N2T5GTVS DIODE 3.3VWM 2XDFN |
35,187 | 0.49 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 3.3V (Max) | 6V (Typ) | - | - | - | No | Automotive, RF Antenna | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
SZESD9X3.3ST5GTVS DIODE 3.3VWM 10.4VC SOD923 |
24,374 | 0.51 |
RFQ |
Datasheet |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 3.3V (Max) | 5V | 10.4V | 9.8A (8/20µs) | 102W | No | Automotive | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
NUP2301MW6T1GTVS DIODE 70VWM SC88/SC70-6 |
30,590 | 0.52 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 2 | - | 70V | 70V | - | - | - | No | Automotive | 1.6pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|

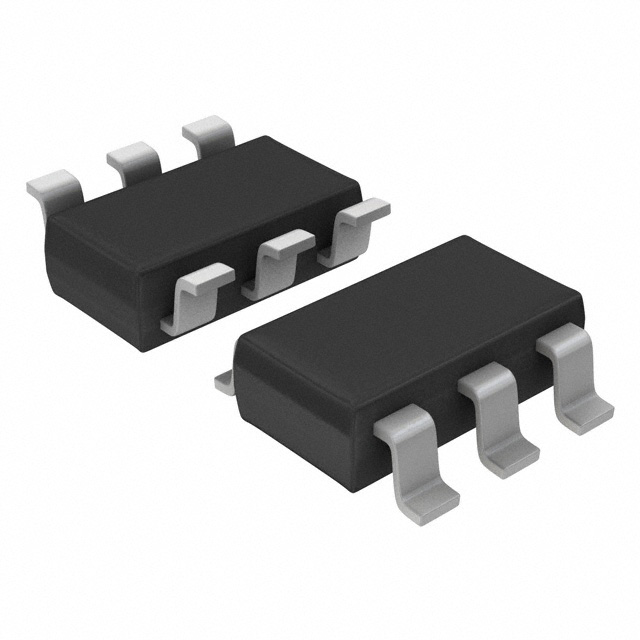

NUP2114UCMR6T1GTVS DIODE 5VWM 10VC 6TSOP |
12,200 | 0.55 |
RFQ |
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 5.5V | 10V (Typ) | 8A (8/20µs) | - | Yes | General Purpose | 0.8pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|

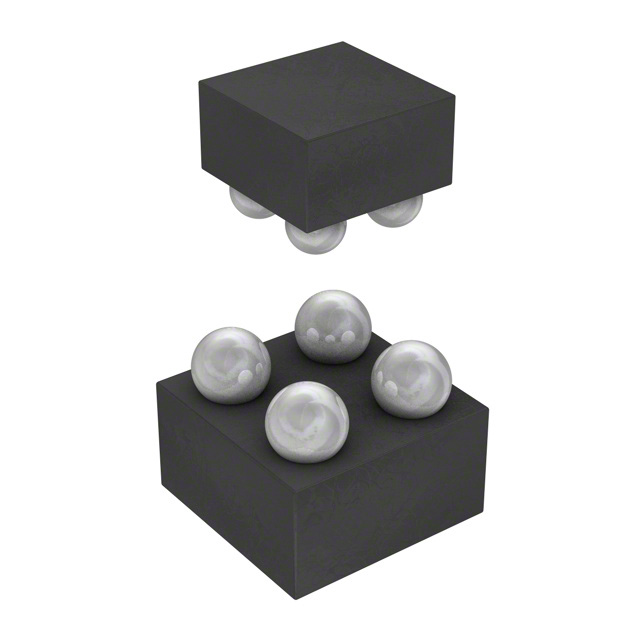

ESD7383NCTBGTVS DIODE 3VWM 10VC 4WLCSP |
17,342 | 0.64 |
RFQ |
Datasheet |
4-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 3 | - | 3V | 6V | 10V | 2.5A (8/20µs) | 50W | Yes | USB OTG | - | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
SZNUP2301MW6T1GTVS DIODE SC88/SC70-6/SOT363 |
7,491 | 0.66 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 2 | - | - | 70V | - | - | - | No | Automotive | 1.6pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
SZESD8006MUTAGTVS DIODE 3.3VWM 9.5VC 8-UDFN |
20,235 | 0.65 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 6 | - | 3.3V (Max) | 5.5V | 9.5V (Typ) | 16A | - | No | Automotive, USB | 0.32pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
NUP2115LT1GTVS DIODE 24VWM 50VC SOT23-3 |
7,465 | 0.78 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 24V (Min) | 26.2V | 50V | 3A (8/20µs) | 200W | No | Automotive | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
CM1213A-04S7TVS DIODE 3.3VWM 10V SC88/SC70-6 |
5,210 | 0.90 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
CM1223-02SRTVS DIODE 3.3VWM 8.8VC SOT143-4 |
4,791 | 0.93 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | Steering (Rail to Rail) | 2 | - | 3.3V | 6V | 8.8V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
PACDN006MRTVS DIODE 5.5VWM 8-MSOP |
4,325 | 0.91 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | Steering (Rail to Rail) | 6 | - | 5.5V (Max) | - | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ESD8006MUTAGTVS DIODE 3.3VWM 8.4VC 8-UDFN |
5,805 | 0.96 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 6 | - | 3.3V (Max) | 5.5V | 8.4V (Typ) | 16A | - | No | USB | 0.32pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

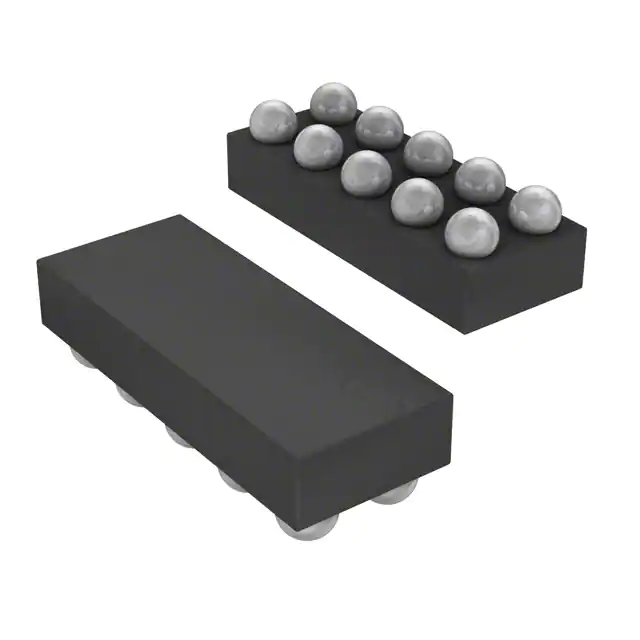

CM1230-08CPTVS DIODE 3.3VWM 9.8VC 10WLCSP |
65,878 | 1.02 |
RFQ |
Datasheet |
10-WFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 8 | - | 3.3V | 6V | 9.8V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
NUP4201DR2GTVS DIODE 5VWM 25VC 8-SOIC |
19,114 | 1.53 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 25A (8/20µs) | 500W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD5Z2.5T5GTVS DIODE 2.5VWM 10.9VC SOD523 |
31,380 | 0.19 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 2.5V (Max) | 4V | 10.9V | 11A (8/20µs) | 120W | No | General Purpose | 145pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESD5Z6.0T5GTVS DIODE 6VWM 20.5VC SOD523 |
12,290 | 0.22 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 6V (Max) | 6.8V | 20.5V | 8.8A (8/20µs) | 181W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD5581MXT5GTVS DIODE 5VWM 12VC 2X3DFN |
24,877 | 0.29 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 5.2V | 12V | 6A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMBZ27VAWT1GTVS DIODE 22VWM 40VC SC70-3 |
14,249 | 0.34 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | 1 | 22V | 25.65V | 40V | 1A | 40W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
