| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.0SMCJ22CATVS DIODE 18VWM 29.2VC SMC |
1,518 | 1.58 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 3.0SMCJ | Active | Zener | - | 1 | 18V | 20V | 29.2V | 102.8A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|

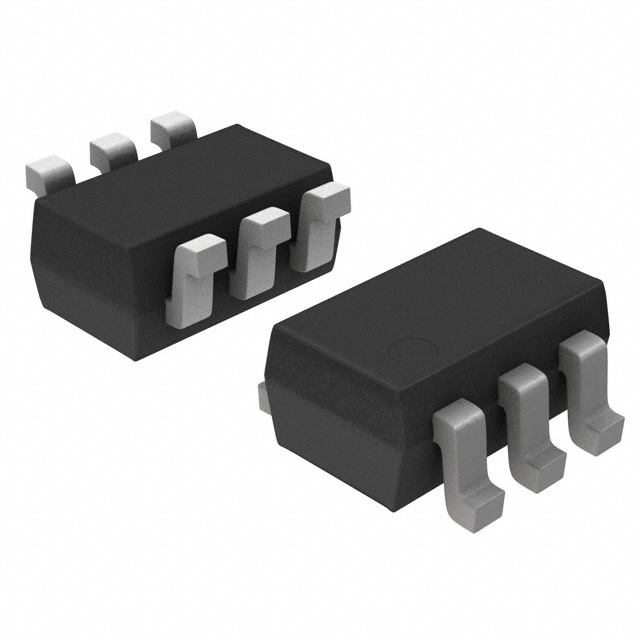

EGUARD0504FTVS DIODE 5VWM 25VC SOT363 |
1,074 | 1.64 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 6A (8/20µs) | 150W | Yes | DVI, HDMI, USB 2.0, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
S16LCC05-8TVS DIODE 5VWM 9.8VC 16SO |
3,055 | 1.72 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | S16LCCXX-8 | Active | Zener | - | 8 | 5V (Max) | 6V | 9.8V | 1A | 300W | No | Automotive, Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
S16LCC24-8TVS DIODE 24VWM 43VC 16SO |
2,253 | 1.72 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | S16LCCXX-8 | Active | Zener | - | 8 | 24V (Max) | 26.7V | 43V | 1A | 300W | No | Automotive, Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMDB05LCCTVS DIODE 5VWM 9.8VC 8-SO |
2,240 | 1.72 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 5V (Max) | 6V | 9.8V | 1A (8/20µs) | 500W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
S16LCC15-8TVS DIODE 15VWM 24VC 16SO |
1,420 | 1.72 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | S16LCCXX-8 | Active | Zener | - | 8 | 15V (Max) | 16.7V | 24V | 1A | 300W | No | Automotive, Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
S16LCC12-8TVS DIODE 12VWM 19VC 16SO |
1,382 | 1.72 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | S16LCCXX-8 | Active | Zener | - | 8 | 12V (Max) | 13.3V | 19V | 1A | 300W | No | Automotive, Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMDB03LCCTVS DIODE 3.3VWM 7VC 8-SO |
5,000 | 1.74 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 3.3V (Max) | 4V | 7V | 1A | 500W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMDB36LCCTVS DIODE 36VWM 51VC 8-SO |
2,408 | 1.79 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | SMDB36LCC | Active | Zener | - | 4 | 36V (Max) | 40V | 51V | 1A (8/20µs) | 500W | No | General Purpose | 15pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMDB15LCCTVS DIODE 15VWM 24VC 8-SO |
1,594 | 1.80 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 15V (Max) | 16.7V | 24V | 1A | 500W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMP1255PUTGTVS DIODE 4VWM 8.5VC 6UDFN |
2,969 | 1.92 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 3 | - | 4V (Max) | 4.5V | 8.5V | 4A (8/20µs) | - | Yes | USB OTG | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
5.0SMCJ12ATVS DIODE 12VWM 19.9VC SMC |
2,934 | 2.24 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ13ATVS DIODE 13VWM 21.5VC SMC |
2,912 | 2.24 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ24ATVS DIODE 24VWM 38.9VC SMC |
2,696 | 2.24 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 129A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ30ATVS DIODE 30VWM 48.4VC SMC |
2,241 | 2.24 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ26ATVS DIODE 26VWM 42.1VC SMC |
1,482 | 2.24 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 119A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ26CATVS DIODE 26VWM 42.1VC SMC |
2,387 | 2.33 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 119A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ16CATVS DIODE 16VWM 26VC SMC |
1,581 | 2.33 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | - | 1 | 16V | 17.8V | 26V | 193A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
5.0SMCJ45CATVS DIODE 45VWM 72.7VC SMC |
2,471 | 2.40 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | 5.0SMCJ | Active | Zener | - | 1 | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
15KPA160ATVS DIODE 160VWM 258.6VC P600 |
3,200 | 2.46 |
RFQ |
Datasheet |
P600, Axial | Tape & Reel (TR) | 15KPA | Active | Zener | 1 | - | 160V | 178.7V | 258.6V | 58.4A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
