| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMA4F36AYTVS DIODE 36VWM 76VC SMAFLAT |
10,000 | 0.43 |
RFQ |
DO-221AC, SMA Flat Leads | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SMB6FxxAY | Active | Zener | 1 | - | 36V (Max) | 40V | 76V | 30A (8/20µs) | 400W | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
P6KE150ATVS DIODE 128VWM 265VC DO15 |
6,900 | 0.62 |
RFQ |
Datasheet |
DO-204AC, DO-15, Axial | Cut Tape (CT),Tape & Box (TB) | P6KE, TRANSIL™ | Active | Zener | 1 | - | 128V | 143V | 265V | 15A (8/20µs) | 600W | No | General Purpose | 400pF @ 1MHz | - | Through Hole |
|
BZW06-58BRLTVS DIODE 58.1VWM 121VC DO15 |
11,970 | 0.63 |
RFQ |
Datasheet |
DO-204AC, DO-15, Axial | Tape & Reel (TR),Cut Tape (CT) | BZW06, TRANSIL™ | Active | Zener | - | 1 | 58.1V | 64.6V | 121V | 33A (8/20µs) | 600W | No | General Purpose | 312.5pF @ 1MHz | - | Through Hole |
|

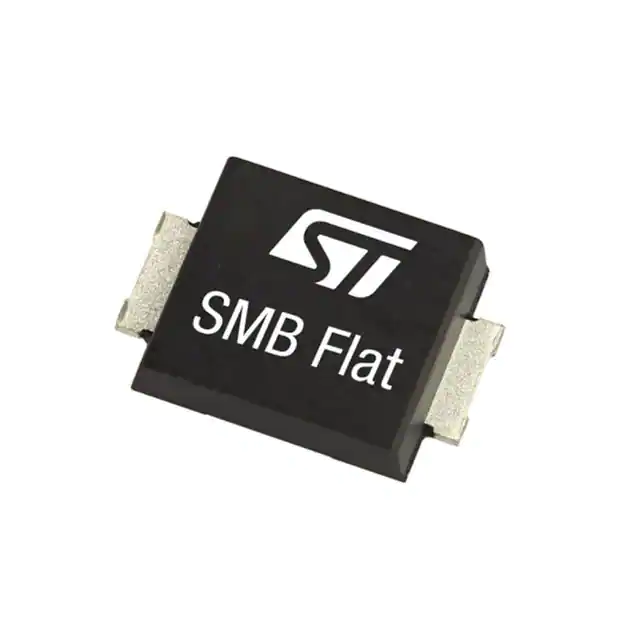

SMB15F23ATVS DIODE 23VWM 49.2VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 23V (Max) | 25.7V | 49.2V | 202A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F64ATVS DIODE 64VWM 134VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 64V (Max) | 71.1V | 134V | 75A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F6.5ATVS DIODE 6.5VWM 14.5VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 6.5V (Max) | 7.2V | 14.5V | 690A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F48ATVS DIODE 48VWM 100VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 48V (Max) | 53.2V | 100V | 100A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F40ATVS DIODE 40VWM 84VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 40V (Max) | 44.4V | 84V | 119A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F15ATVS DIODE 15VWM 32.5VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 15V (Max) | 16.7V | 32.5V | 308A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F8.5ATVS DIODE 8.5VWM 19.5VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 8.5V (Max) | 9.4V | 19.5V | 512A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F14ATVS DIODE 14VWM 29VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 14V (Max) | 15.7V | 29V | 338A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F36ATVS DIODE 36VWM 76VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 36V (Max) | 40V | 76V | 131A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F11ATVS DIODE 11VWM 24.2VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 11V (Max) | 12.3V | 24.2V | 413A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
SMCJ188A-TRTVS DIODE 188VWM 388VC SMC |
4,112 | 0.75 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMCJ, TRANSIL™ | Active | Zener | 1 | - | 188V | 209V | 388V | 26A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMB15F48AYTVS DIODE 48VWM 100VC SMBFLAT |
5,000 | 0.88 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SMB15F | Active | Zener | 1 | - | 48V (Max) | 53.2V | 100V | 100A (8/20µs) | 1500W (1.5kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F28AYTVS DIODE 28VWM 59VC SMBFLAT |
5,000 | 0.88 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SMB15F | Active | Zener | 1 | - | 28V (Max) | 31.1V | 59V | 169A (8/20µs) | 1500W (1.5kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
1.5KE180ATVS DIODE 154VWM 317VC DO201 |
7,100 | 0.79 |
RFQ |
Datasheet |
DO-201AA, DO-27, Axial | Cut Tape (CT),Tape & Box (TB) | 1.5KE, TRANSIL™ | Active | Zener | 1 | - | 154V | 171V | 317V | 31.5A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 725pF @ 1MHz | - | Through Hole |
|
SMC50J5.0A5000 W, 5 V TVS IN SMC |
2,500 | 1.76 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMC50JxxA | Active | Zener | 1 | - | 5V (Max) | 6.4V | 9.2V | 544A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
ESDARF02-1BU2TVS DIODE 3VWM 30VC ST0201 |
27,520 | 0.44 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | - | 1 | 3V | 6V | 30V | 1A (8/20µs) | 30W | No | General Purpose | 0.24pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | Surface Mount |
;;2.jpg)
|
SMA4F23ATVS DIODE 23VWM 49.2VC SMAFLAT |
10,000 | 0.46 |
RFQ |
Datasheet |
DO-221AC, SMA Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMA4F, TRANSIL™ | Active | Zener | 1 | - | 23V | 25.7V | 49.2V | 10.6A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount |
