| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPDZC3V3HT-HFAUTOMOTIVE DIODE ESD 3.3VWM 5.5V |
10,000 | 0.45 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 3.3V (Max) | 3.7V | 7V (Typ) | 17A (8/20µs) | 119W | No | Automotive | 38pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
CPDW5V0UHT-HFDIODE ESD 5VWM 10.5VC SOD-123 |
3,000 | 0.39 |
RFQ |
Datasheet |
SOD-123 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6V | 14V | 60A (8/20µs) | 840W | No | General Purpose | 1100pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CPDA10C60VB-HFDIODE ESD ARRAY 60VWM 198W DFN25 |
3,000 | 0.48 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 60V (Max) | 65V | 110V | 1.8A (8/20µs) | 198W | No | General Purpose | 6pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ASMBJ58CA-HFTVS DIODE 58V 93.6V SMB |
3,000 | 0.08 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 6.4A | 600W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
CPDQC12V-HFTVS DIODE 12VWM 25V 0402C/SOD923 |
19,900 | 0.39 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V (Max) | 13V | 25V | 1A (8/20µs) | 25W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
TV04A300JB-HFTVS DIODE 30VWM 48.4VC SMA |
10,000 | 0.10 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR) | - | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.26A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CPDU12VTVS DIODE 12VWM 25V 0603/SOD523F |
4,000 | 0.10 |
RFQ |
Datasheet |
2-SMD, No Lead | Tape & Reel (TR) | - | Active | Zener | - | 1 | 12V | 13V | 25V | 1A (8/20µs) | 25W | No | General Purpose | 12pF @ 1MHz | - | Surface Mount |
|
CPDT-5V0SRTVS DIODE 5VWM 10VC SOT23-3 |
28,219 | 0.40 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 5V | 6.1V | 10V | 8A (8/20µs) | 80W | No | General Purpose | - | - | Surface Mount |
|
CPDQT5V0HE-HFDIODE ESD 5VWM 65W 0402/SOD-923F |
9,860 | 0.16 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V | 6.8V | 8.6V | 7A (8/20µs) | 65W | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
TV06B260JB-GTVS DIODE 26VWM 42.1VC DO214AA |
11,700 | 0.49 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.25A | 600W | No | General Purpose | - | - | Surface Mount |
|
CPDVR083V3UATVS DIODE 3.3VWM 8VC SOT383F |
3,000 | 0.22 |
RFQ |
Datasheet |

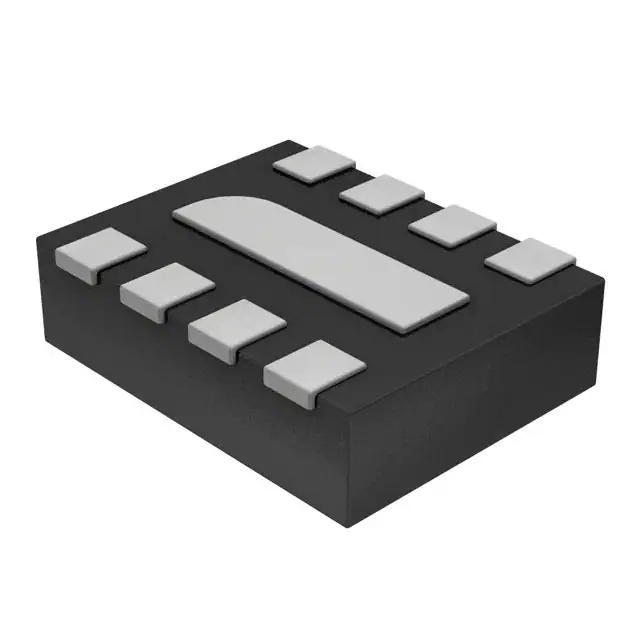

SOT-383F | Tape & Reel (TR) | - | Active | Zener | 4 | - | 3.3V (Max) | - | 8V | 5A (8/20µs) | 40W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
CPDQC5V0AU-HFTVS DIODE 5VWM 15V 0402C/SOD923F |
4,105 | 0.23 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 5.8V | 15V | 4A (8/20µs) | 60W | No | General Purpose | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMCJ24A-HFTVS DIODE 24VWM 38.9VC DO214AB |
3,000 | 0.25 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR) | - | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CPDQC3V3AU-HFTVS DIODE 3.3VWM 14VC 0402C |
1,763 | 0.30 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V (Max) | 4.2V | 14V | 4A (8/20µs) | 56W | No | General Purpose | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
CPDQC12VEU-HFTVS DIODE 12VWM 22V 0402/SOD923F |
2,663 | 0.32 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 12V (Max) | 13.5V | 22V | 5A (8/20µs) | 110W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
CPDQC3V3R-HFTVS DIODE 3.3VWM 18VC 0402C |
4,830 | 0.33 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 5V | 18V | 2A (8/20µs) | 36W | No | General Purpose | 18pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CPDQC3V3A-HFTVS DIODE 3.3VWM 25VC 0402C |
3,028 | 0.33 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 25V | 4A (8/20µs) | 100W | Yes | General Purpose | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
CPDF12V-HFTVS DIODE 12VWM 25V 1005/SOD323F |
1,086 | 0.35 |
RFQ |
Datasheet |
1005 (2512 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V | 13V | 25V | 1A (8/20µs) | 25W | No | General Purpose | 12pF @ 1MHz | - | Surface Mount |
|
CPDQR5V0UP-HFTVS DIODE 5VWM 12.5V 0402/SOD923 |
4,038 | 0.36 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
CPDQ03C5V0HP-HFTVS DIODE 5VWM 15VC 0402C-03 |
3,748 | 0.36 |
RFQ |
Datasheet |
SC-101, SOT-883 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 5V (Max) | 5.5V | 15V | 3A (8/20µs) | 45W | No | General Purpose | 6pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
