| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJP6KE82AHE3-TP600W TVS, SMB |
3,317 | 0.42 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 70.1V | 77.9V | 113V | 5.4A | 600W | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
ESD1551P4-TPESD,15V,DFN2020-3L |
2,487 | 0.53 |
RFQ |
Datasheet |
3-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 15V (Max) | 15.5V | 28V | 160A (8/20µs) | 4500W (4.5kW) | No | General Purpose | 1.25nF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD1051P4-TPESD,10V,DFN2020-3L |
2,790 | 0.53 |
RFQ |
Datasheet |
3-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 10V (Max) | 10.5V | 21V | 205A (8/20µs) | 4500W (4.5kW) | No | General Purpose | 2.15nF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESD1251P4-TPESD,12V,DFN2020-3L |
2,490 | 0.53 |
RFQ |
Datasheet |
3-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 12V (Max) | 12.5V | 24V | 200A (8/20µs) | 4500W (4.5kW) | No | General Purpose | 1.65nF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMCJ14CA-TPTVS DIODE 14VWM 23.2VC DO214AB |
3,440 | 0.72 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 64.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SMCJ1.5KE12A-TPTVS DIODE 10.2VWM 16.7VC DO214AB |
2,213 | 0.72 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 91A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount |
.jpg)
|
SMCJ1.5KE36CA-TPTVS DIODE 30.8VWM 49.9VC DO214AB |
2,745 | 0.72 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
1.5KE33A-TPTVS DIODE 28.2VWM 45.7VC DO201AE |
2,146 | 0.69 |
RFQ |
Datasheet |
DO-201AE, Axial | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
5KP9.0A-TPTVS DIODE 9VWM 15.4VC R6 |
3,786 | 1.89 |
RFQ |
Datasheet |
R-6, Axial | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 9V | 10V | 15.4V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
|
5KP85CA-TPTVS DIODE 85VWM 137VC R6 |
2,116 | 2.68 |
RFQ |
Datasheet |
R-6, Axial | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 85V | 94.4V | 137V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|

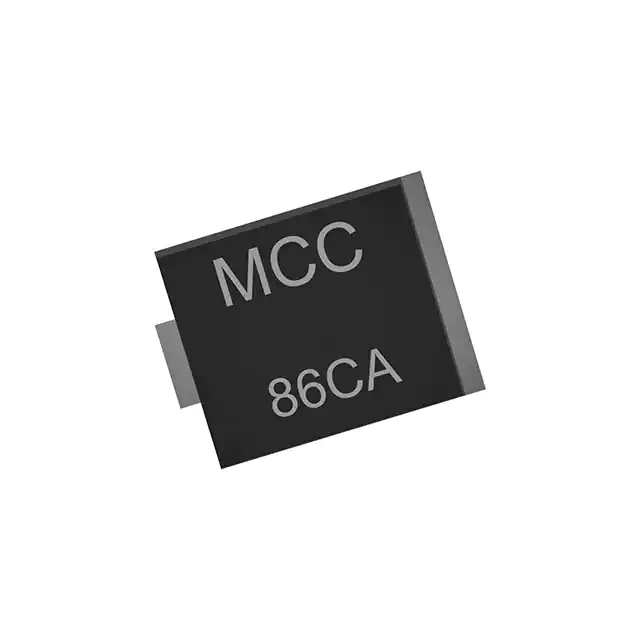

SMEJ86CA-TPTVS DIODE 86VWM 157VC SME |
3,840 | 22.30 |
RFQ |
Datasheet |
2-SMD, Flat Lead | Tape & Reel (TR),Cut Tape (CT) | SMEJ | Active | Zener | - | 1 | 86V | 96V | 157V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 6pF @ 10kHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESDLC5V0L2B-TPTVS DIODE 5VWM 15VC DFN1006-2L |
2,150 | 0.02 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR) | - | Active | Zener | - | 1 | 5V (Max) | 5.6V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESDULC5V0LB-TPTVS DIODE 5VWM 11VC DFN1006-2 |
3,587 | 0.03 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 11V | 1A (8/20µs) | - | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESDULC5V0AE2-TPTVS DIODE 5VWM 11VC 0201-A |
2,443 | 0.03 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 11V | 1A (8/20µs) | - | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESDLC3V3LB-TPTVS DIODE 3.3VWM 11VC 2DFN1006 |
3,304 | 0.29 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 4.3V | 11V | - | - | No | General Purpose | 2.6pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ESDLC3V3L-TPTVS DIODE 3.3VWM 15VC 2DFN1006 |
3,243 | 0.29 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V (Max) | - | 15V | 10A (8/20µs) | 150W | No | General Purpose | 22pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
ESDSBL5V0LTB-TPDIODE ESD PROTECTION DFN |
3,963 | 0.04 |
RFQ |
Datasheet |

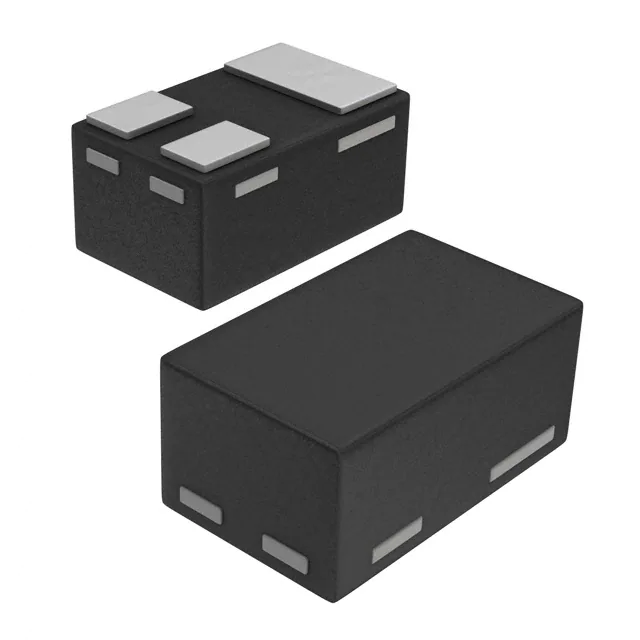

SC-101, SOT-883 | Tape & Reel (TR) | - | Active | Zener | - | 2 | 5V (Max) | 5.3V | 12V | 8A (8/20µs) | 96W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
ESDSLC3V3LB-TPTVS DIODE 3.3VWM 20VC 2DFN1006 |
3,179 | 0.40 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 5V | 20V | 5A (8/20µs) | 100W | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SRV05-4C-TPDIODE ESD PROTECTION SOT23-6 |
3,053 | 0.08 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR) | - | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 18V | 17A (8/20µs) | 300W | Yes | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMAJP4KE12CA-TPTVS DIODE 10.2VWM 16.7VC DO214AC |
3,382 | 0.41 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 24.6A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount |
