Categories
TVS - Diodes(99279)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDQC3V3AU-HFTVS DIODE 3.3VWM 14VC 0402C |
1,763 | 0.30 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V (Max) | 4.2V | 14V | 4A (8/20µs) | 56W | No | General Purpose | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
P4SMF12A12V,400WPACKAGE SOD-123FL TRANSI |
1,804 | 0.30 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | P4SMF | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
P4SMF24A24V,400WPACKAGE SOD-123FL TRANSI |
1,691 | 0.30 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | P4SMF | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
B74111G0050M060TVS DIODE 5VWM 8VC WL-CSP01005 |
19,516 | 0.31 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 8V (Typ) | 4A (8/20µs) | - | No | General Purpose | 5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
SZMMBZ15VALT3GTVS DIODE 12VWM 21VC SOT23-3 |
4,660 | 0.31 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 12V | 14.25V | 21V | 1.9A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
D15V0HA1U2LP-7BTVS DIODE 15VWM 23VC DFN1006-2 |
1,740 | 0.31 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 15V (Max) | 16V | 23V (Typ) | 20A (8/20µs) | 460W | No | General Purpose | 95pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
DF2B7PCT,L3FBI-DIRECTIONAL ESD PROTECTION DI |
7,450 | 0.32 |
RFQ |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V (Max) | 5.6V | 22V | 27A (8/20µs) | 590W | No | General Purpose | 45pF @ 1MHz | 150°C (TJ) | Surface Mount | |
|
|
ESDLC5V0D9L-TPTVS DIODE 5VWM 15VC SOD923 |
5,265 | 0.32 |
RFQ |
Datasheet |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 5.4V | 15V | 5A (8/20µs) | 75W | No | General Purpose | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
DF2B6USL,L3FTVS DIODE 5.5VWM 20VC SL2 |
4,440 | 0.32 |
RFQ |
Datasheet |
2-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V (Max) | 5.7V | 20V | 1.5A (8/20µs) | 30W | No | - | 1.5pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
|
P4SMF22CA22V,400WPACKAGE SOD-123FL TRANSI |
2,890 | 0.32 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | P4SMF | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
DF5A5.6JE,LMTVS DIODE 2.5VWM ESV |
2,808 | 0.32 |
RFQ |
Datasheet |
SOT-553 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 2.5V | 5.3V | - | - | - | No | General Purpose | 65pF @ 1MHz | - | Surface Mount |
|
CPDQC12VEU-HFTVS DIODE 12VWM 22V 0402/SOD923F |
2,663 | 0.32 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 12V (Max) | 13.5V | 22V | 5A (8/20µs) | 110W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
DF5A6.8JE,LMTVS DIODE 5VWM ESV |
1,357 | 0.32 |
RFQ |
Datasheet |
SOT-553 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5V | 6.4V | - | - | - | No | General Purpose | 45pF @ 1MHz | - | Surface Mount |
|
MMBZ24VALFHT116TVS DIODE 20VWM 32VC SSD3 |
2,289 | 0.32 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 20V (Max) | 22.8V | 32V | 1.25A | 40W | No | Automotive | 46pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
SD05TVS ARRAY 5V SOD-323 |
2,225 | 0.32 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | SDxx | Active | Zener | 1 | - | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 350pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
P4SMF40CA40V,400WPACKAGE SOD-123FL TRANSI |
2,200 | 0.32 |
RFQ |
Datasheet |
SOD-123F | Tape & Reel (TR),Cut Tape (CT) | P4SMF | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
VS3V3BB1EST15RTVS DIODE 3.3VWM 8.2VC DSN0603-2 |
1,981 | 0.32 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 4V | 8.2V | 5.5A (8/20µs) | 45W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DF2S5M5SL,L3FTVS DIODE 3.3VWM 16VC SL2 |
1,851 | 0.32 |
RFQ |
Datasheet |
2-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 3.3V (Max) | 3.6V | 16V (Typ) | 2.5A (8/20µs) | 37W | No | General Purpose | 0.6pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
CEZ24V,L3FTVS DIODE 24VWM 36.5VC ESC |
1,850 | 0.32 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | CEZ | Active | Zener | 1 | - | 24V | 22.8V | 36.5V (Typ) | 4.5A (8/20µs) | 200W | No | General Purpose | 26pF @ 1MHz | 150°C (TJ) | Surface Mount |
|

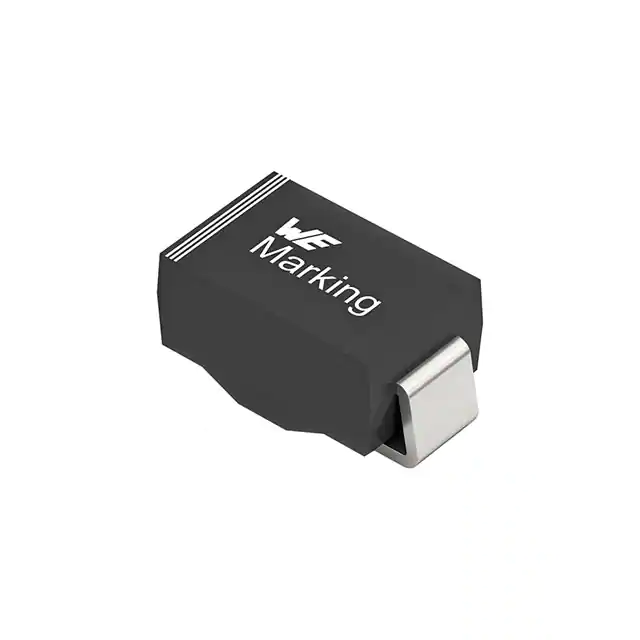

824500151TVS DIODE 15VWM 24.4VC DO214AC |
1,786 | 0.32 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | WE-TVSP | Active | Zener | 1 | - | 15V (Max) | 17.6V | 24.4V | 16.4A | 400W | No | General Purpose | - | -65°C ~ 150°C (TA) | Surface Mount |
