| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPD4S012DRYRTVS DIODE 5.5VWM 6SON |
2,740 | 0.85 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | 3A (8/20µs) | 60W | Yes | USB | - | -40°C ~ 85°C (TA) | Surface Mount |
|
TPD4E05U06QDQARQ1TVS DIODE 5.5VWM 14VC 10USON |
26,844 | 0.86 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.4V | 14V | 2.5A (8/20µs) | 40W | Yes | Automotive, HDMI, USB | - | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPD4S009DRYRTVS DIODE 5.5VWM 6SON |
2,681 | 0.95 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 9V | - | - | 25W | Yes | Ethernet, HDMI | - | -40°C ~ 85°C (TA) | Surface Mount |
|
TPD1E04U04DPLTTVS DIODE 3.6VWM 8.9VC 2X2SON |
3,199 | 0.94 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 1 | - | 3.6V (Max) | 4.5V | 8.9V | 2.5A (8/20µs) | 16W | Yes | HDMI | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPD1E01B04DPYTTVS DIODE 3.6VWM 15VC 2X1SON |
4,420 | 0.99 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.6V (Max) | 6.4V (Typ) | 15V | 2.5A (8/20µs) | 27W | No | General Purpose | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPD1E04U04DPYRTVS DIODE 3.6VWM 8.9VC 2X1SON |
2,869 | 0.42 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 1 | - | 3.6V (Max) | 4.5V | 8.9V | 2.5A (8/20µs) | 19W | Yes | HDMI | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TPD1E10B06DYAR12-PF, 5.5V, 30-KV ESD PROTECTIO |
2,473 | 0.44 |
RFQ |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5.5V (Max) | 6V | 14V | 6A (8/20µs) | 90W | No | USB | 12pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TPD1E01B04DPYRQ1AUTOMOTIVE 0.18-PF, 3.6-V, 15-KV |
3,638 | 0.49 |
RFQ |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 3.6V (Max) | 6.4V | 15V (Typ) | 2.5A (8/20µs) | 27W | No | Automotive, Ethernet, HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
TPD4E002DRLRTVS DIODE 3VWM SOT5 |
500 | 0.45 |
RFQ |
Datasheet |
SOT-553 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 4 | - | 3V | 6.1V | - | - | 35W | No | General Purpose | - | -40°C ~ 125°C (TA) | Surface Mount |
|
TPD8E003DQDRTVS DIODE 10VC 8-WSON |
2,354 | 0.55 |
RFQ |
Datasheet |
8-WFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | 8 | - | - | 6V | 10V | 2A (8/20µs) | 55W | No | General Purpose | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ESDS302DBVRTVS DIODE 3.6VWM 3VC SOT23-5 |
2,098 | 0.56 |
RFQ |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 3.6V (Max) | 4.5V | 3V (Typ) | 12A (8/20µs) | 85W | No | General Purpose | 2.3pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
ESDS304DBVRTVS DIODE 3.6VWM 3VC SOT23-5 |
14,402 | 0.56 |
RFQ |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 3.6V (Max) | 4.5V | 3V (Typ) | 12A (8/20µs) | 85W | No | General Purpose | 2.3pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
ESDS314DBVRTVS DIODE 3.6VWM 6.5VC SOT23-5 |
2,923 | 0.58 |
RFQ |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 3.6V (Max) | 4.5V | 6.5V (Typ) | 25A (8/20µs) | 170W | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TPD2E1B06DRLRTVS DIODE 5.5VWM 15VC 6SOT |
377,133 | 0.60 |
RFQ |
Datasheet |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Steering (Rail to Rail) | - | 2 | 5.5V (Max) | 7V | 15V (Typ) | 2.5A (8/20µs) | 35W | No | General Purpose | - | -40°C ~ 125°C (TA) | Surface Mount |
|

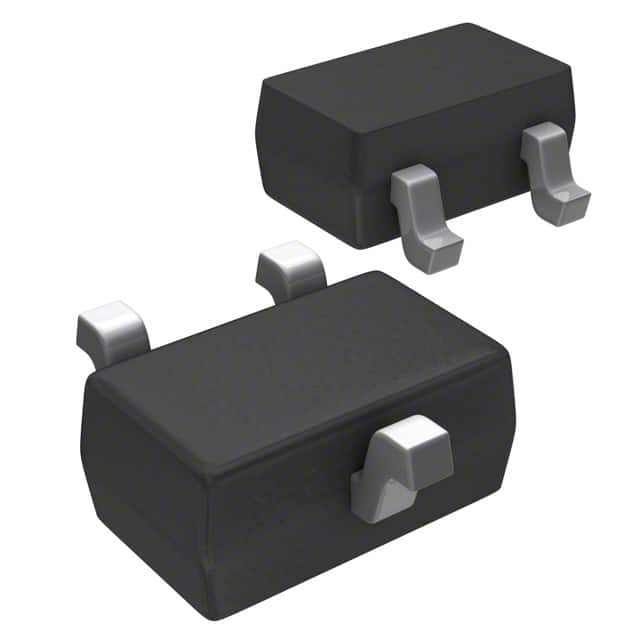

TPD2E2U06DCKRTVS DIODE 5.5VWM 12.4VC SC70-3 |
3,082 | 0.61 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6.5V | 12.4V (Typ) | 5.5A (8/20µs) | 75W | No | Ethernet, USB 2.0 | 1.5pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TPD2E001DRSRTVS DIODE 5.5VWM 6SON |
3,078 | 0.56 |
RFQ |
Datasheet |
6-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 11V | - | - | - | Yes | Ethernet | - | -40°C ~ 85°C (TA) | Surface Mount |
|
TVS1400DRVRTVS DIODE 14VWM 19.3VC 6WSON |
3,351 | 0.65 |
RFQ |
Datasheet |
6-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 14V (Max) | 16.2V | 19.3V | 8A | 140W | No | General Purpose | 120pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TPD2E009DRTRTVS DIODE 5.5VWM 8VC SOT9X3 |
2,908 | 0.65 |
RFQ |
Datasheet |
3-SMD, SOT-23-3 Variant | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 7V | 8V | 1A (8/20µs) | 45W | Yes | Ethernet, HDMI | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPD2E001IDRLRQ1TVS DIODE 5.5VWM SOT5 |
3,073 | 0.66 |
RFQ |
Datasheet |
SOT-553 | Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100 | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 11V | - | - | - | Yes | Automotive, Ethernet | - | -40°C ~ 85°C (TA) | Surface Mount |
|
TPD4E001RDBVRTVS DIODE 5.5VWM 17VC SOT23-6 |
2,034 | 0.64 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 11V | 17V (Typ) | 5.5A (8/20µs) | 100W | Yes | Automotive, Ethernet, USB | 1.5pF @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
