TVS - Diodes(99279)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMB15F14ATVS DIODE 14VWM 29VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 14V (Max) | 15.7V | 29V | 338A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F36ATVS DIODE 36VWM 76VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 36V (Max) | 40V | 76V | 131A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
SMB15F11ATVS DIODE 11VWM 24.2VC SMBFLAT |
5,000 | 0.71 |
RFQ |
DO-221AA, SMB Flat Leads | Tape & Reel (TR),Cut Tape (CT) | SMB15F | Active | Zener | 1 | - | 11V (Max) | 12.3V | 24.2V | 413A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
LCE40ATVS DIODE 40VWM 64.5VC DO201 |
2,380 | 0.71 |
RFQ |
Datasheet |
DO-201AA, DO-27, Axial | Tape & Reel (TR),Cut Tape (CT) | LCE | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 23.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Through Hole |
|
CDSOD323-T24C-DSLQTVS DIODE 24VWM 56VC SOD323 |
11,396 | 0.80 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 24V | 26.7V | 56V | 6A (8/20µs) | - | No | Automotive, Telecom | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
SMCJ188A-TRTVS DIODE 188VWM 388VC SMC |
4,112 | 0.75 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMCJ, TRANSIL™ | Active | Zener | 1 | - | 188V | 209V | 388V | 26A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SMBJ28CAHM3_A/HTVS DIODE 28VWM 45.4VC DO214AA |
6,000 | 0.61 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 13.2A | 600W | No | Automotive, Telecom | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
RCLAMP03354P.ATVS DIODE |
5,000 | 0.33 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR) | RailClamp® | Active | Zener | 4 | - | 3.3V (Max) | 5.5V | 7V | 10A (8/20µs) | 70W | No | HDMI2, USB 3.2 | 0.03pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
;;2.jpg)
|
SMBJ30CAHE3_A/HTVS DIODE 30VWM 48.4VC DO214AA |
6,000 | 0.62 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ36CAHE3_A/HTVS DIODE 36VWM 58.1VC DO214AA |
5,250 | 0.62 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ28CAHE3_A/HTVS DIODE 28VWM 45.5VC DO214AA |
4,500 | 0.62 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 28V | 31.1V | 45.5V | 13.2A | 600W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMBJ18CAHE3_A/HTVS DIODE 18VWM 29.2VC DO214AA |
3,000 | 0.62 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.5A | 600W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMCJ60CA-QTVS DIODE 60VWM 125.8VC DO214AB |
14,994 | 0.86 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SMCJ-Q | Active | Zener | - | 1 | 60V | 66.7V | 125.8V | 77.5A (8/20µs) | 1500W (1.5kW) | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SMDB12CTVS DIODE 12VWM 19VC 8-SO |
2,500 | 0.86 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 4 | 12V (Max) | 13.3V | 19V | 1A | 500W | No | General Purpose | 94pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

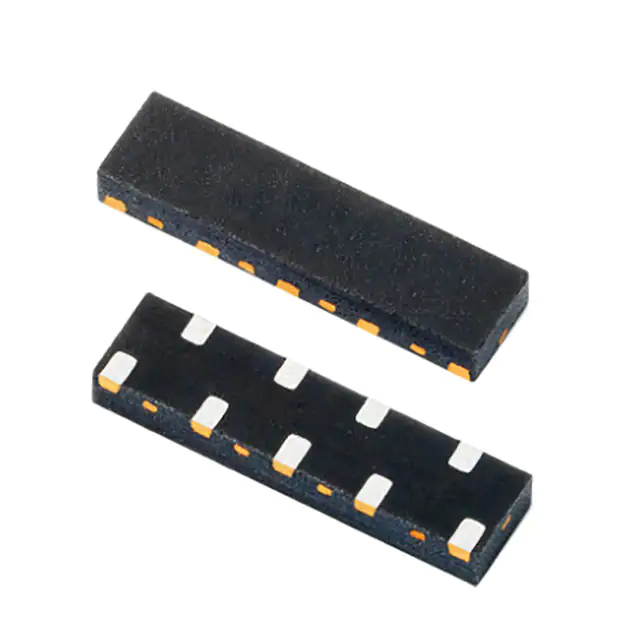

SC7520-08UTG3.3V 6A 12KV DFN3810-9L DIODES A |
3,001 | 0.87 |
RFQ |
Datasheet |
9-UDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 8 | - | 3.3V (Max) | 6.5V | 6V | 6A (8/20µs) | - | No | Telecom, USB | 0.32pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
SMCJE350ATVS DIODE 350VWM 567VC SMC |
3,000 | 0.87 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | SMCJE | Active | Zener | 1 | - | 350V | 391V | 567V | 2.7A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
STS234050U150TVS DIODE 5VWM 18VC SOT23-6 |
4,738 | 0.87 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | BUSSMANN | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 18V | 24A (8/20µs) | 500W | Yes | DVI, Ethernet, USB | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SA14ATVS DIODE 14VWM 23.2VC DO204AC |
1,987 | 0.34 |
RFQ |
Datasheet |
DO-204AC, DO-15, Axial | Bulk | SA | Obsolete | Zener | 1 | - | 14V | 15.6V | 23.2V | 22A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
TGL41-300TVS DIODE 243VWM 430VC MELF |
5,000 | 0.36 |
RFQ |
Datasheet |
DO-213AB, MELF | Tape & Reel (TR) | - | Active | Zener | 1 | - | 243V | 270V | 430V | 900mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | Surface Mount |
|
|
TGL41-250ATVS DIODE 214VWM 344VC MELF |
5,000 | 0.36 |
RFQ |
Datasheet |
DO-213AB, MELF | Tape & Reel (TR) | - | Active | Zener | 1 | - | 214V | 237V | 344V | 1.2A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | Surface Mount |
