| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMC3K75CAHM3_A/H3KW, 75V 5%,BIDIR,SMC TVS |
1,750 | 1.33 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 75V | 83.3V | 121V | 24.8A | 3000W (3kW) | No | Automotive, Telecom | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SMC3K24CAHM3_A/H3KW, 24V 5%,BIDIR,SMC TVS |
1,750 | 1.33 |
RFQ |
Datasheet |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TransZorb® | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | Automotive, Telecom | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
XMC7K24CA-M3/ITVS DIODE 24VWM 24VC DO214AB |
6,869 | 1.71 |
RFQ |
DO-214AB, SMC | Tape & Reel (TR),Cut Tape (CT) | XClampR™ | Active | Zener | - | 1 | 24V | 26.7V | 24V | 180A | 7000W (7kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Surface Mount | |
|
XLD5A24CAHM3/IPPPM=4600W AND IPPM=120A WITH 10 |
1,520 | 2.83 |
RFQ |
Datasheet |

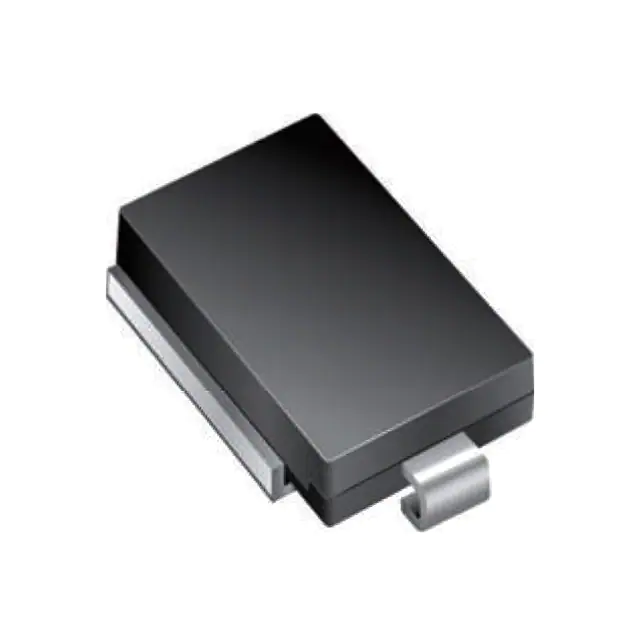

DO-218AB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, XClampR™ | Active | Zener | - | 1 | 24V | 26.7V | 26V | 120A | 7700W (7.7kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
SM6S30AHE3_A/ITVS DIODE 30VWM 48.4VC DO218AB |
750 | 3.63 |
RFQ |
Datasheet |
DO-218AB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PAR® | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 95A | 4600W (4.6kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SM8S11AHE3_A/ITVS DIODE 11VWM 18.2VC DO218AB |
750 | 4.13 |
RFQ |
Datasheet |
DO-218AB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PAR® | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 363A | 6600W (6.6kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SM8A27HE3/2DTVS DIODE 22VWM 40VC DO218AB |
4,225 | 4.70 |
RFQ |
Datasheet |
DO-218AB | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PAR® | Active | Zener | 1 | - | 22V | 24V | 40V | 75A (8/20µs) | 6600W (6.6kW) | No | Automotive | - | -55°C ~ 175°C (TJ) | Surface Mount |
|

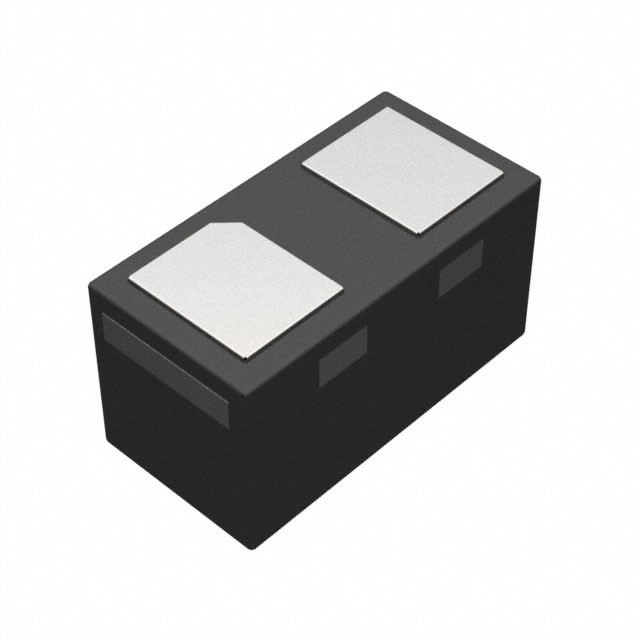

VCUT05F1-HD0-G4-08TVS DIODE 5.5VWM 14VC LLP0603-2L |
30,000 | 0.37 |
RFQ |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | - | 1 | 5.5V (Max) | 5.5V | 14V | 4A (8/20µs) | 60W | No | General Purpose | 14pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount | |
|
SMAJ530-M3/61TVS DIODE 188VWM 328VC DO214AC |
5,400 | 0.24 |
RFQ |
Datasheet |
DO-214AC, SMA | Tape & Reel (TR) | TransZorb® | Active | Zener | 1 | - | 188V | 209V | 328V | 910mA | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
VCUT0714BHD1-G3-08TVS DIODE 7VWM 14VWM 2DFN |
5,255 | 0.35 |
RFQ |
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 7V, 14V | 7.3V, 14.5V | 15V, 30V | 3.6A (8/20µs), 2A (8/20µs) | 50W, 61W | No | Automotive | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
VCUT03E1-SD0-G4-08TVS DIODE 3.3VWM 13VC CLP0603 |
1,528 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 6.5V | 13V | 6A (8/20µs) | 78W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
VCAN36A2-03S-E3-18TVS DIODE 36VWM 63VC SOT23-3 |
8,849 | 0.36 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 36V (Max) | 39V | 63V | 2.4A (8/20µs) | 150W | No | CAN | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
GL12T-E3-08TVS DIODE 12VWM 24VC SOT23-3 |
2,427 | 0.36 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 1 | - | 12V (Max) | 13.3V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
GL24T-E3-08TVS DIODE 24VWM 55VC SOT23-3 |
1,473 | 0.36 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Zener | 1 | - | 24V (Max) | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
VESD26A5-06GHG3-08TVS DIODE 26VWM 48VC SOT363 |
2,995 | 0.37 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | Zener | 5 | - | 26V (Max) | 27.6V | 48V | 2.1A (8/20µs) | 100W | No | Automotive | 17.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VESD26A5-06G-G3-08TVS DIODE 26VWM 48VC SOT363 |
2,405 | 0.37 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | Zener | 5 | - | 26V (Max) | 27.6V | 48V | 2.1A (8/20µs) | 100W | No | Automotive | 17.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VESD12A5-06GHG3-08TVS DIODE 12VWM 22.7VC SOT363 |
1,500 | 0.37 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | Zener | 5 | - | 12V (Max) | 13.9V | 22.7V | 4.4A (8/20µs) | 100W | No | Automotive | 33pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
MSMP15A-M3/89ATVS DIODE 15VWM 24.4VC MICROSMP |
1,280 | 0.37 |
RFQ |
Datasheet |
MicroSMP | Tape & Reel (TR),Cut Tape (CT) | TransZorb® | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 6.2A | 150W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
VESD33A2-03S-G3-08TVS DIODE 33VWM 62.5VC SOT323 |
14,739 | 0.38 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 33V (Max) | 35.5V | 62.5V | 1.6A (8/20µs) | 100W | No | Automotive | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VCAN36A2-03SHE3-18TVS DIODE 36VWM 63VC SOT23-3 |
8,650 | 0.38 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 2 | 36V (Max) | 39V | 63V | 2.4A (8/20µs) | 150W | No | Automotive, CAN | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
