Trimmers, Variable Capacitors(2268)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CapacitanceRange | AdjustmentType | Voltage-Rated | DielectricMaterial | Q@Freq | Size/Dimension | Height-Seated(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

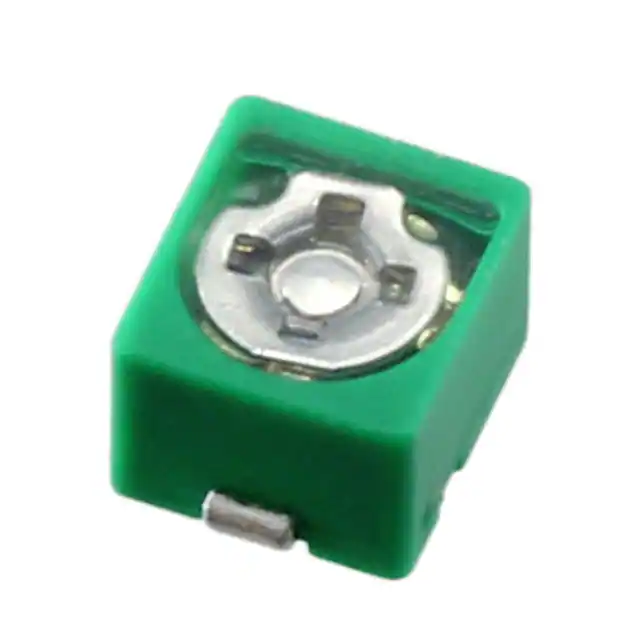

GKG30086-05CAP TRIM 6.5-30PF 100V SMD |
556 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SURFTRIM® GKG | Active | 6.5 ~ 30pF | Top | 100 V | - | 300 @ 1MHz | 0.177 L x 0.157 W (4.50mm x 4.00mm) | 0.106 (2.70mm) | -25°C ~ 85°C | Surface Mount |
|
|
GKG20086-05CAP TRIM 4.5-20PF 100V SMD |
146 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SURFTRIM® GKG | Active | 4.5 ~ 20pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177 L x 0.157 W (4.50mm x 4.00mm) | 0.114 (2.90mm) | -25°C ~ 85°C | Surface Mount |
|
GXE18002CAP TRIMMER 2.6-18PF 200V TH |
2,832 | 5.27 |
RFQ |
Datasheet |
Bulk | FILMTRIM® | Obsolete | 2.6 ~ 18pF | Top and Bottom | 200 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.335 L x 0.295 W (8.50mm x 7.50mm) | 0.402 (10.20mm) | -40°C ~ 125°C | Through Hole |
|
ER-530-016CAP TRIMMER 0.25-1.5PF 1250V TH |
3,272 | 14.25 |
RFQ |
Datasheet |
Bulk | ER | Obsolete | 0.25 ~ 1.5pF | Side | 1250 V | Polytetrafluoroethylene (PTFE) | 2000 @ 1MHz | 0.140 Dia (3.56mm) | - | -55°C ~ 125°C | Through Hole |
|
GGC4R500CAP TRIMMER 0.8-4.5PF 750V TH |
2,166 | 23.92 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 4.5pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 0.312 (7.92mm) | -55°C ~ 125°C | Through Hole |
|
GHC16000CAP TRIMMER 0.8-16PF 750V TH |
2,674 | 27.60 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 16pF | Side | 750 V | Glass | 800 @ 20MHz | 0.312 Dia (7.92mm) | 0.766 (19.46mm) | -55°C ~ 125°C | Through Hole |
|
AT 27268CAP TRIMMER 0.3-1.2PF 500V SMD |
3,619 | 28.00 |
RFQ |
Datasheet |
Bulk | Sapphire Trimmers | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Surface Mount |
|
AT 27263+CAPCAP TRIMMER 0.3-1.2PF 500V SMD |
2,556 | 28.00 |
RFQ |
Datasheet |
Bulk | Sapphire Trimmers | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Surface Mount |
|
AT 27269CAP TRIMMER 0.3-1.2PF 500V TH |
3,472 | 28.00 |
RFQ |
Datasheet |
Bulk | Sapphire Trimmers | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
AT 27260CAP TRIMMER 0.3-1.2PF 500V TH |
2,566 | 28.00 |
RFQ |
Datasheet |
Bulk | Sapphire Trimmers | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
GGN8R533CAP TRIMMER 0.8-8.5PF 750V SMD |
2,629 | 28.71 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 8.5pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 0.673 (17.10mm) | -55°C ~ 125°C | Surface Mount |
|
GUR1R200CAP TRIMMER 0.3-1.2PF 500V TH |
2,789 | 29.17 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
GUN1R200CAP TRIMMER 0.3-1.2PF 500V TH |
2,258 | 29.17 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
GUF1R250CAP TRIMMER 0.3-1.2PF 500V TH |
3,308 | 29.17 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
GUF1R200CAP TRIMMER 0.3-1.2PF 500V TH |
3,489 | 29.17 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.3 ~ 1.2pF | - | 500 V | Sapphire | 4000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
GGN12000CAP TRIMMER 0.8-12PF 750V TH |
2,533 | 29.17 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 12pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 0.797 (20.24mm) | -55°C ~ 125°C | Through Hole |
|

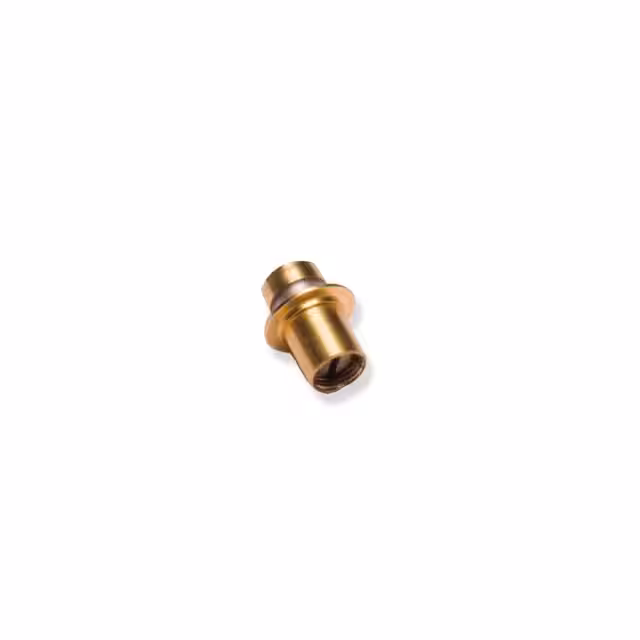

AT 27285CAP TRIMMER 0.4-2.5PF 500V TH |
3,496 | 30.00 |
RFQ |
Datasheet |
Tray | Sapphire Trimmers | Active | 0.4 ~ 2.5pF | Top | 500 V | Sapphire | 4000 @ 250MHz | 0.118 Dia (3.00mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole |
|
GEP14000CAP TRIMMER 1-14PF 750V TH |
100 | 30.57 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 1 ~ 14pF | Top | 750 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 0.375 (9.53mm) | -55°C ~ 125°C | Through Hole |
|
GFC16000CAP TRIMMER 1-16PF 750V TH |
2,614 | 31.02 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 1 ~ 16pF | Side | 750 V | Glass | 750 @ 20MHz | 0.312 Dia (7.92mm) | 0.391 (9.93mm) | -55°C ~ 125°C | Through Hole |
|
GGP18000CAP TRIMMER 0.8-18PF 750V |
2,487 | 31.25 |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 18pF | Top | 750 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 0.984 (24.99mm) | -55°C ~ 125°C | User Defined |
