| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RJH60F5DPK-00#T0IGBT 600V 80A 260.4W TO-3P |
2,129 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Trench | 600 V | 80 A | - | 1.8V @ 15V, 40A | 260.4 W | - | Standard | - | 53ns/105ns | 400V, 30A, 5Ohm, 15V | 140 ns | 150°C (TJ) | Through Hole |
|

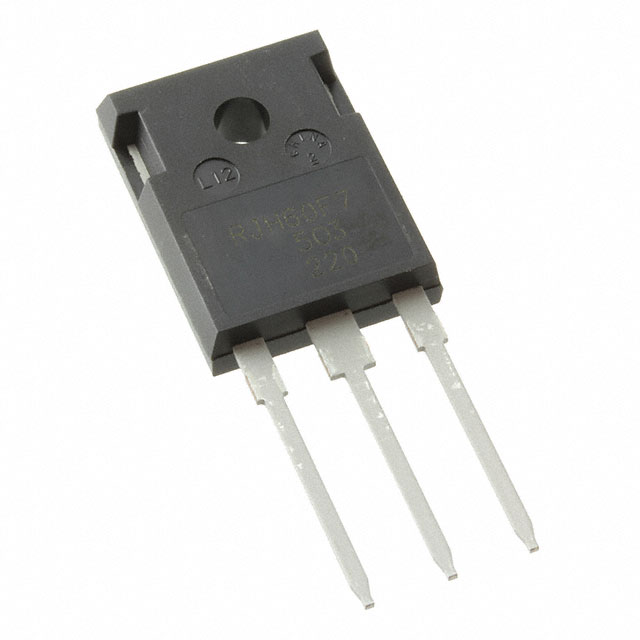

RJH60F6BDPQ-A0#T0IGBT 600V 85A 297.6W TO-247A |
2,981 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Trench | 600 V | 85 A | - | 1.75V @ 15V, 45A | 297.6 W | - | Standard | - | 58ns/131ns | 400V, 30A, 5Ohm, 15V | 25 ns | 150°C (TJ) | Through Hole |
|
|
RJH60F6DPK-00#T0IGBT 600V 85A 297.6W TO-3P |
2,519 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Trench | 600 V | 85 A | - | 1.75V @ 15V, 45A | 297.6 W | - | Standard | - | 58ns/131ns | 400V, 30A, 5Ohm, 15V | 140 ns | 150°C (TJ) | Through Hole |
|
|
RJH60F7ADPK-00#T0IGBT 600V 90A 328.9W TO-3P |
3,651 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Trench | 600 V | 90 A | - | 1.75V @ 15V, 50A | 328.9 W | - | Standard | - | 63ns/142ns | 400V, 30A, 5Ohm, 15V | 140 ns | 150°C (TJ) | Through Hole |
|
|
RJH60F7BDPQ-A0#T0IGBT 600V 90A 328.9W TO-247A |
2,697 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Trench | 600 V | 90 A | - | 1.75V @ 15V, 50A | 328.9 W | - | Standard | - | 63ns/142ns | 400V, 30A, 5Ohm, 15V | 25 ns | 150°C (TJ) | Through Hole |
|
|
RJH1BF6RDPQ-80#T2IGBT 1100V 55A 227.2W TO247 |
2,240 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | - | 1100 V | 55 A | - | 2.7V @ 15V, 55A | 227.2 W | - | Standard | - | - | - | - | 150°C (TJ) | Through Hole |
|
|
RJH1CF4RDPQ-80#T2IGBT 1200V 40A 156.2W TO247 |
2,722 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | - | 1200 V | 40 A | - | 2.5V @ 15V, 20A | 156.2 W | - | Standard | - | - | - | - | 150°C (TJ) | Through Hole |
|
|
RJH1CF5RDPQ-80#T2IGBT 1200V 50A 192.3W TO247 |
2,891 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | - | 1200 V | 50 A | - | 2.4V @ 15V, 25A | 192.3 W | - | Standard | - | - | - | - | 150°C (TJ) | Through Hole |
|
|
RJH1CM5DPQ-E0#T2IGBT 1200V 30A 245W TO247 |
2,288 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | - | 1200 V | 30 A | - | 2.7V @ 15V, 15A | 245 W | 1.6mJ (on), 700µJ (off) | Standard | 74 nC | 40ns/100ns | 600V, 15A, 5Ohm, 15V | 200 ns | 150°C (TJ) | Through Hole |
|
|
RJH1CV7DPQ-E0#T2IGBT TRENCH 1200V 70A TO247 |
2,769 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Trench | 1200 V | 70 A | - | 2.3V @ 15V, 35A | 320 W | 3.2mJ (on), 2.5mJ (off) | Standard | 166 nC | 53ns/185ns | 600V, 35A, 5Ohm, 15V | 200 ns | 150°C (TJ) | Through Hole |
|
RJP4010AGE-00#P5IGBT 400V 1.6W TSOJ8 |
2,979 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | - | 400 V | - | 150 A | 9V @ 3V, 150A | 1.6 W | - | Standard | - | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
RJP5001APP-M0#T2IGBT 500V TO-220FN |
3,911 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | - | 500 V | - | 300 A | 10V @ 12V, 300A | 45 W | - | Standard | - | 100ns/200ns | 300V, 300A, 30Ohm, 12V | - | -40°C ~ 150°C (TJ) | Through Hole |
|
|
RJH1BG7RDPK-00#T0IGBT 1100V 60A 250W TO247 |
2,510 | 0.00 |
RFQ |
Tube | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RJH60A01RDPD-A0#J2IGBT 600V 5A |
3,398 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Trench | 600 V | 10 A | - | 2.3V @ 15V, 5A | 29.4 W | 130µJ (on), 70µJ (off) | Standard | 11 nC | 30ns/40ns | 300V, 5A, 5Ohm, 15V | 100 ns | 150°C (TJ) | Surface Mount |
|
|
RJH60A81RDPD-A0#J2IGBT 600V 5A |
3,462 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Trench | 600 V | 10 A | - | 2.4V @ 15V, 5A | 29.4 W | 130µJ (on), 60µJ (off) | Standard | 11 nC | 30ns/40ns | 300V, 5A, 5Ohm, 15V | 100 ns | 150°C (TJ) | Surface Mount |
|
|
RJH60A83RDPD-A0#J2IGBT 600V 10A |
3,115 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Trench | 600 V | 20 A | - | 2.6V @ 15V, 10A | 51 W | 230µJ (on), 160µJ (off) | Standard | 19.7 nC | 31ns/54ns | 300V, 10A, 5Ohm, 15V | 130 ns | 150°C (TJ) | Surface Mount |
|
RJH60D1DPP-E0#T2IGBT 600V 10A |
3,190 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Trench | 600 V | 20 A | - | 2.5V @ 15V, 10A | 30 W | 100µJ (on), 130µJ (off) | Standard | 13 nC | 30ns/42ns | 300V, 10A, 5Ohm, 15V | 70 ns | 150°C (TJ) | Through Hole |
|
|
RJH65D27BDPQ-A0#T0IGBT 650V |
2,603 | 0.00 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RJP4009ANS-01#Q6IGBT 400V |
3,445 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | - | 400 V | - | 150 A | 9V @ 2.5V, 150A | 1.8 W | - | Standard | - | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
RJP4301APP-M0#T2IGBT 430V TO200FL |
3,415 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | - | 430 V | - | 200 A | 10V @ 26V, 200A | 30 W | - | Standard | - | 50ns/100ns | 300V, 200A, 30Ohm, 26V | - | -40°C ~ 150°C (TJ) | Through Hole |
