| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT35GA90BD15IGBT 900V 63A 290W TO247 |
2,632 | 6.44 |
RFQ |
Datasheet |
Tube | - | Active | PT | 900 V | 63 A | 105 A | 3.1V @ 15V, 18A | 290 W | 642µJ (on), 382µJ (off) | Standard | 84 nC | 12ns/104ns | 600V, 18A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
APT25GR120SIGBT 1200V 75A 521W D3PAK |
2,116 | 6.59 |
RFQ |
Datasheet |
Bulk | - | Active | NPT | 1200 V | 75 A | 100 A | 3.2V @ 15V, 25A | 521 W | 742µJ (on), 427µJ (off) | Standard | 203 nC | 16ns/122ns | 600V, 25A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
APT40GR120B2D30IGBT 1200V 88A 500W TO247 |
2,642 | 9.72 |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1200 V | 88 A | 160 A | 3.2V @ 15V, 40A | 500 W | 1.38mJ (on), 906µJ (off) | Standard | 210 nC | 22ns/163ns | 600V, 40A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
APT33GF120B2RDQ2GIGBT 1200V 64A 357W TMAX |
3,423 | 18.19 |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1200 V | 64 A | 75 A | 3V @ 15V, 25A | 357 W | 1.315mJ (on), 1.515mJ (off) | Standard | 170 nC | 14ns/185ns | 800V, 25A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
APT50GF120LRGIGBT 1200V 135A 781W TO264 |
2,424 | 21.71 |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1200 V | 135 A | 150 A | 3V @ 15V, 50A | 781 W | 3.6mJ (on), 2.64mJ (off) | Standard | 340 nC | 25ns/260ns | 800V, 50A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT45GP120B2DQ2GIGBT 1200V 113A 625W TMAX |
2,779 | 21.80 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | 1200 V | 113 A | 170 A | 3.9V @ 15V, 45A | 625 W | 900µJ (on), 905µJ (off) | Standard | 185 nC | 18ns/100ns | 600V, 45A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT65GP60L2DQ2GIGBT 600V 198A 833W TO264 |
2,555 | 21.94 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | 600 V | 198 A | 250 A | 2.7V @ 15V, 65A | 833 W | 605µJ (on), 895µJ (off) | Standard | 210 nC | 30ns/90ns | 400V, 65A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT70GR65BIGBT 650V 134A 595W TO-247 |
3,084 | 7.46 |
RFQ |
Datasheet |
Tube | - | Active | NPT | 650 V | 134 A | 260 A | 2.4V @ 15V, 70A | 595 W | 1.51mJ (on), 1.46mJ (off) | Standard | 305 nC | 19ns/170ns | 433V, 70A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT75GN60SDQ2GIGBT FIELDSTOP COMBI 600V 75A TO |
2,327 | 10.68 |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 600 V | 155 A | 225 A | 1.85V @ 15V, 75A | 536 W | 2.5mJ (on), 2.14mJ (off) | Standard | 485 nC | 47ns/385ns | 400V, 75A, 1Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
APT50GT60BRDQ2GIGBT 600V 110A 446W TO247 |
2,337 | 11.50 |
RFQ |
Datasheet |
Tube | Thunderbolt IGBT® | Active | NPT | 600 V | 110 A | 150 A | 2.5V @ 15V, 50A | 446 W | 995µJ (on), 1070µJ (off) | Standard | 240 nC | 14ns/240ns | 400V, 50A, 5Ohm, 15V | 22 ns | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT25GT120BRGIGBT 1200V 54A 347W TO247 |
3,601 | 6.51 |
RFQ |
Datasheet |
Tube | Thunderbolt IGBT® | Active | NPT | 1200 V | 54 A | 75 A | 3.7V @ 15V, 25A | 347 W | 930µJ (on), 720µJ (off) | Standard | 170 nC | 14ns/150ns | 800V, 25A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT30GT60BRDQ2GIGBT 600V 64A 250W TO247 |
3,578 | 0.00 |
RFQ |
Datasheet |
Tube | Thunderbolt IGBT® | Active | NPT | 600 V | 64 A | 110 A | 2.5V @ 15V, 30A | 250 W | 80µJ (on), 605µJ (off) | Standard | 7.5 nC | 12ns/225ns | 400V, 30A, 10Ohm, 15V | 22 ns | -55°C ~ 150°C (TJ) | Through Hole |
|

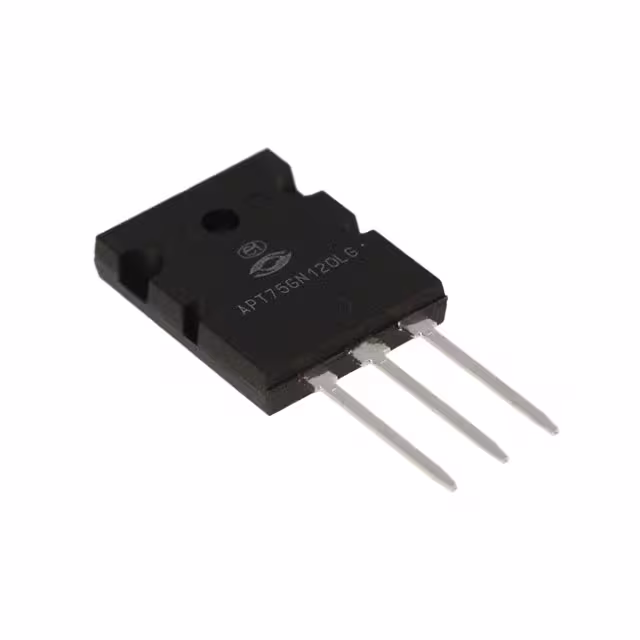

APT75GN120LGIGBT 1200V 200A 833W TO264 |
3,697 | 16.36 |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 1200 V | 200 A | 225 A | 2.1V @ 15V, 75A | 833 W | 8620µJ (on), 11400µJ (off) | Standard | 425 nC | 60ns/620ns | 800V, 75A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT36GA60BD15IGBT 600V 65A 290W TO-247 |
2,359 | 6.88 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | PT | 600 V | 65 A | 109 A | 2.5V @ 15V, 20A | 290 W | 307µJ (on), 254µJ (off) | Standard | 18 nC | 16ns/122ns | 400V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT40GR120BIGBT 1200V 88A 500W TO247 |
3,240 | 7.43 |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1200 V | 88 A | 160 A | 3.2V @ 15V, 40A | 500 W | 1.38mJ (on), 906µJ (off) | Standard | 210 nC | 22ns/163ns | 600V, 40A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT25GN120SGIGBT 1200V 67A 272W D3PAK |
2,634 | 7.89 |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 1200 V | 67 A | 75 A | 2.1V @ 15V, 25A | 272 W | - | Standard | 155 nC | 22ns/280ns | 800V, 25A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
APT43GA90BD30IGBT 900V 78A 337W TO247 |
3,346 | 7.95 |
RFQ |
Datasheet |
Tube | - | Active | PT | 900 V | 78 A | 129 A | 3.1V @ 15V, 47A | 337 W | 875µJ (on), 425µJ (off) | Standard | 116 nC | 12ns/82ns | 600V, 25A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT35GN120BGIGBT 1200V 94A 379W TO247 |
2,095 | 8.47 |
RFQ |
Datasheet |
Tube | - | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT95GR65B2IGBT 650V 208A 892W T-MAX |
3,829 | 8.94 |
RFQ |
Datasheet |
Tube | - | Active | NPT | 650 V | 208 A | 400 A | 2.4V @ 15V, 95A | 892 W | 3.12mJ (on), 2.55mJ (off) | Standard | 420 nC | 29ns/226ns | 433V, 95A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT35GN120SGIGBT FIELDSTOP SINGLE 1200V 35A |
2,880 | 9.57 |
RFQ |
Datasheet |
Tube | - | Active | NPT, Trench Field Stop | 1200 V | 94 A | 105 A | 2.1V @ 15V, 35A | 379 W | -, 2.315mJ (off) | Standard | 220 nC | 24ns/300ns | 800V, 35A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | Surface Mount |
