| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSID100A120S5C1IGBT MOD 1200V 170A 650W |
2,657 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Phase Inverter | 1200 V | 170 A | 650 W | 2.1V @ 15V, 100A | 1 mA | 13.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
GSID150A120S5C1IGBT MOD 1200V 285A 1087W |
2,870 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Phase Inverter | 1200 V | 285 A | 1087 W | 2.1V @ 15V, 150A | 1 mA | 21.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
GSID200A120S5C1IGBT MODULE 1200V 335A |
2,381 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Phase Inverter | 1200 V | 335 A | - | 2.1V @ 15V, 200A | 1 mA | 22.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
GSID300A120S5C1IGBT MOD 1200V 430A 1630W |
3,296 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Phase Inverter | 1200 V | 430 A | 1630 W | 2.25V @ 15V, 300A | 1 mA | 30 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

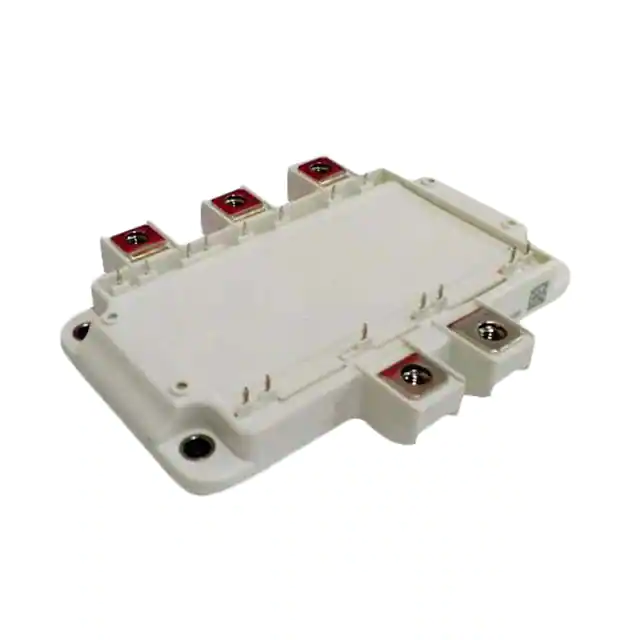

GSID300A125S5C1IGBT MOD 1250V 600A 2500W |
3,276 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Trench Field Stop | 3 Phase Inverter | 1250 V | 600 A | 2500 W | 2.4V @ 15V, 300A | 1 mA | 30.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
GSID080A120B1A5IGBT MOD 1200V 160A 1710W |
3,050 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Single | 1200 V | 160 A | 1710 W | 2V @ 15V, 80A | 1 mA | 7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|

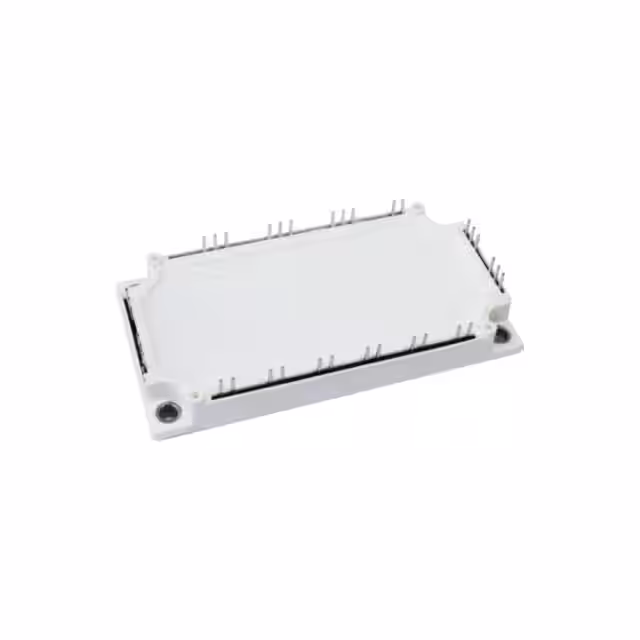

GSID100A120T2C1IGBT MOD 1200V 200A 640W |
3,421 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Three Phase Inverter | 1200 V | 200 A | 640 W | 2.1V @ 15V, 100A | 1 mA | 13.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
GSID100A120T2C1AIGBT MOD 1200V 200A 800W |
3,958 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Three Phase Inverter | 1200 V | 200 A | 800 W | 2.1V @ 15V, 100A | 1 mA | 13.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
GSID100A120T2P2IGBT MOD 1200V 200A 710W |
3,525 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Three Phase Inverter | 1200 V | 200 A | 710 W | 2.1V @ 15V, 100A | 1 mA | 13.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
|

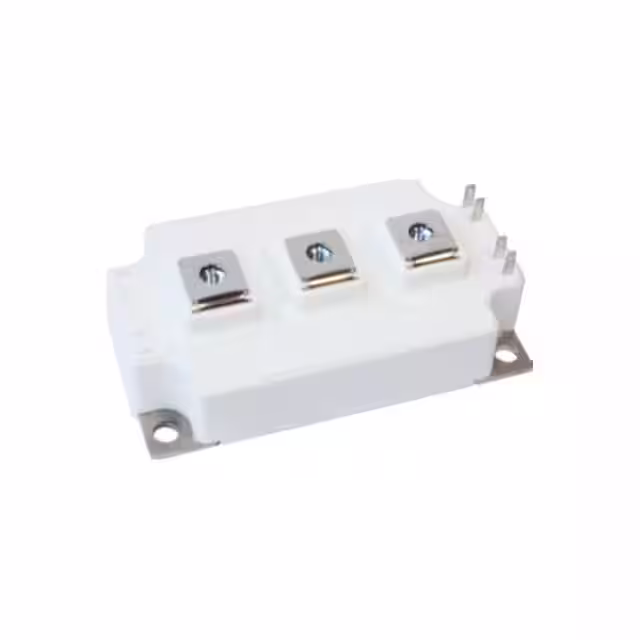

GSID150A120S3B1IGBT MODULE 1200V 300A 940W D3 |
3,752 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | 2 Independent | 1200 V | 300 A | 940 W | 2V @ 15V, 150A | 1 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|

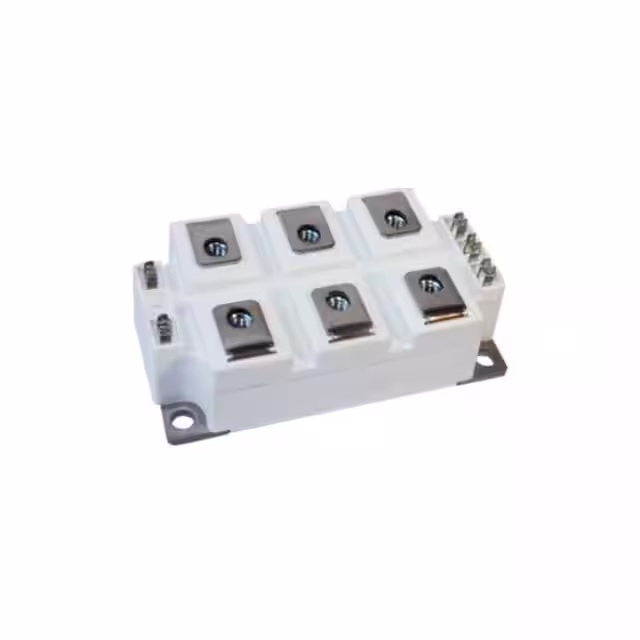

GSID150A120S6A4IGBT MOD 1200V 275A 1035W |
2,187 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Single | 1200 V | 275 A | 1035 W | 1.9V @ 15V, 150A | 1 mA | 20.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
GSID150A120T2C1IGBT MOD 1200V 285A 1087W |
3,677 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Three Phase Inverter | 1200 V | 285 A | 1087 W | 2.1V @ 15V, 150A | 1 mA | 21.2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
GSID200A120S3B1IGBT MODULE 1200V 400A 1595W D3 |
3,823 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | 2 Independent | 1200 V | 400 A | 1595 W | 2V @ 15V, 200A | 1 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
GSID200A170S3B1IGBT MODULE 1200V 400A 1630W D3 |
2,087 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | 2 Independent | 1200 V | 400 A | 1630 W | 1.9V @ 15V, 200A | 1 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|

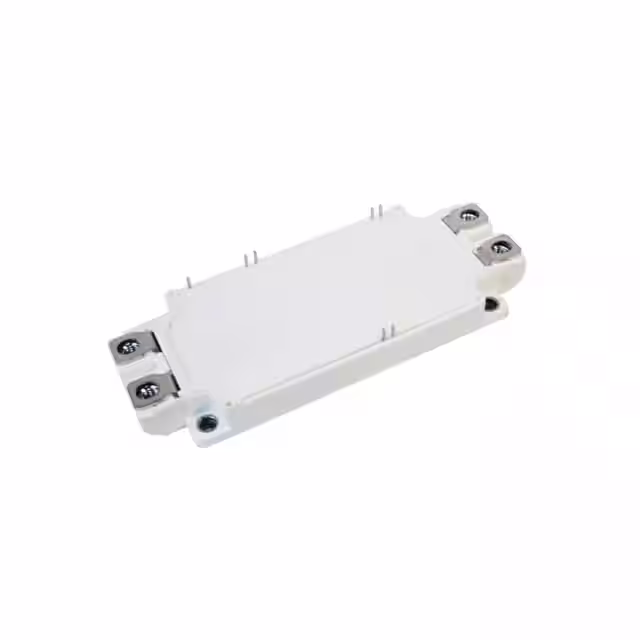

GSID600A120S4B1IGBT MOD 1200V 1130A 3060W |
2,963 | 0.00 |
RFQ |
Datasheet |
Bulk | Amp+™ | Obsolete | - | Half Bridge | 1200 V | 1130 A | 3060 W | 2.1V @ 15V, 600A | 1 mA | 51 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
