| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

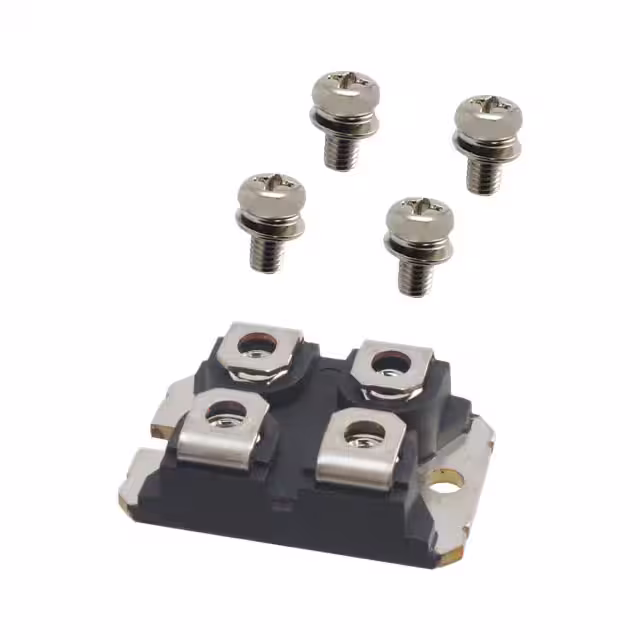

APT46GA90JD40IGBT MODULE 900V 87A 284W ISOTOP |
3,557 | 30.80 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | PT | Single | 900 V | 87 A | 284 W | 3.1V @ 15V, 47A | 350 µA | 4.17 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
APT75GT120JU3IGBT MOD 1200V 100A 416W SOT227 |
3,968 | 31.34 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT40GP60JIGBT 600V 86A 284W SOT227 |
3,170 | 31.87 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 86 A | 284 W | 2.7V @ 15V, 40A | 250 µA | 4.61 nF @ 25 V | Standard | No | - | Chassis Mount |
|
APT47GA60JD40IGBT 600V 87A 283W SOT-227 |
3,947 | 31.94 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | PT | Single | 600 V | 87 A | 283 W | 2.5V @ 15V, 47A | 275 µA | 6.32 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT150GN60JIGBT MOD 600V 220A 536W ISOTOP |
2,224 | 32.43 |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | Single | 600 V | 220 A | 536 W | 1.85V @ 15V, 150A | 25 µA | 9.2 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount |
|
|
APT50GP60JIGBT MOD 600V 100A 329W ISOTOP |
2,749 | 34.06 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 100 A | 329 W | 2.7V @ 15V, 50A | 500 µA | 5.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT50GP60JDQ2IGBT MOD 600V 100A 329W ISOTOP |
3,390 | 34.37 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 100 A | 329 W | 2.7V @ 15V, 50A | 525 µA | 5.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT50GR120JD30IGBT MOD 1200V 84A 417W SOT227 |
3,176 | 36.18 |
RFQ |
Datasheet |
Tube | - | Active | NPT | Single | 1200 V | 84 A | 417 W | 3.2V @ 15V, 50A | 1.1 mA | 5.55 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT25GLQ120JCU2IGBT MOD 1200V 45A 170W SOT227 |
2,432 | 37.45 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 45 A | 170 W | 2.4V @ 15V, 25A | 250 µA | 1.43 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis, Stud Mount |
|
|
APT100GN120JIGBT MOD 1200V 153A 446W ISOTOP |
2,015 | 37.51 |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | Single | 1200 V | 153 A | 446 W | 2.1V @ 15V, 100A | 100 µA | 6.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT35GP120JIGBT MOD 1200V 64A 284W ISOTOP |
2,915 | 37.87 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 1200 V | 64 A | 284 W | 3.9V @ 15V, 35A | 250 µA | 3.24 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
APT65GP60JIGBT MOD 600V 130A 431W ISOTOP |
3,851 | 38.21 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 130 A | 431 W | 2.7V @ 15V, 65A | 1 mA | 7.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 |
3,033 | 38.70 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT40GP90JIGBT MODULE 900V 68A 284W ISOTOP |
3,772 | 39.41 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 900 V | 68 A | 284 W | 3.9V @ 15V, 40A | 250 µA | 3.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT65GP60JDQ2IGBT 600V 130A 431W SOT227 |
3,993 | 40.09 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 130 A | 431 W | 2.7V @ 15V, 65A | 1.25 mA | 7.4 nF @ 25 V | Standard | No | - | Chassis Mount |
|
|
APT40GLQ120JCU2IGBT MOD 1200V 80A 312W SOT227 |
2,975 | 40.20 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 80 A | 312 W | 2.4V @ 15V, 40A | 25 µA | 2.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis, Stud Mount |
|
|
APT40GP60JDQ2IGBT MODULE 600V 86A 284W ISOTOP |
3,268 | 42.31 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 86 A | 284 W | 2.7V @ 15V, 40A | 500 µA | 4.61 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT40GP90JDQ2IGBT MODULE 900V 64A 284W ISOTOP |
2,737 | 42.47 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 900 V | 64 A | 284 W | 3.9V @ 15V, 40A | 350 µA | 3.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT45GP120JIGBT MOD 1200V 75A 329W ISOTOP |
3,881 | 42.58 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 500 µA | 3.94 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 |
3,193 | 43.84 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | Standard | No | - | Chassis Mount |
