| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPC2218GANFET N-CH 100V DIE |
62,985 | 4.75 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 60A (Ta) | 5V | 3.2mOhm @ 25A, 5V | 2.5V @ 7mA | 16.3 nC @ 5 V | +6V, -4V | 2703 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | |
|
EPC2001CGANFET N-CH 100V 36A DIE OUTLINE |
168,709 | 4.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 36A (Ta) | 5V | 7mOhm @ 25A, 5V | 2.5V @ 5mA | 9 nC @ 5 V | +6V, -4V | 900 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2215GAN TRANS 200V 8MOHM BUMPED DIE |
33,623 | 6.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | GaNFET (Gallium Nitride) | 200 V | 32A (Ta) | 5V | 8mOhm @ 20A, 5V | 2.5V @ 6mA | 17.7 nC @ 5 V | +6V, -4V | 1790 pF @ 100 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2010CGANFET N-CH 200V 22A DIE OUTLINE |
13,065 | 6.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 200 V | 22A (Ta) | 5V | 25mOhm @ 12A, 5V | 2.5V @ 3mA | 5.3 nC @ 5 V | +6V, -4V | 540 pF @ 100 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2206GANFET N-CH 80V 90A DIE |
105,383 | 6.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 80 V | 90A (Ta) | 5V | 2.2mOhm @ 29A, 5V | 2.5V @ 13mA | 19 nC @ 5 V | +6V, -4V | 1940 pF @ 40 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2031GANFET NCH 60V 31A DIE |
17,540 | 6.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 60 V | 31A (Ta) | - | 2.6mOhm @ 30A, 5V | 2.5V @ 15mA | 17 nC @ 5 V | - | 1800 pF @ 300 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
EPC2029GANFET N-CH 80V 48A DIE |
28,994 | 6.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 80 V | 48A (Ta) | 5V | 3.2mOhm @ 30A, 5V | 2.5V @ 12mA | 13 nC @ 5 V | +6V, -4V | 1410 pF @ 40 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2021GANFET N-CH 80V 90A DIE |
11,586 | 7.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 80 V | 90A (Ta) | 5V | 2.5mOhm @ 29A, 5V | 2.5V @ 14mA | 15 nC @ 5 V | +6V, -4V | 1650 pF @ 40 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
EPC2032GANFET N-CH 100V 48A DIE |
19,635 | 7.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 48A (Ta) | 5V | 4mOhm @ 30A, 5V | 2.5V @ 11mA | 15 nC @ 5 V | +6V, -4V | 1530 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
EPC2022GANFET N-CH 100V 90A DIE |
8,873 | 8.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 90A (Ta) | 5V | 3.2mOhm @ 25A, 5V | 2.5V @ 12mA | - | +6V, -4V | 1500 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
EPC2024GANFET NCH 40V 60A DIE |
4,893 | 7.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 40 V | 90A (Ta) | 5V | 1.5mOhm @ 37A, 5V | 2.5V @ 19mA | - | +6V, -4V | 2100 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
EPC2034CGANFET N-CH 200V 48A DIE |
19,433 | 7.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 200 V | 48A (Ta) | 5V | 8mOhm @ 20A, 5V | 2.5V @ 7mA | 11 nC @ 5 V | +6V, -4V | 1140 pF @ 100 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
EPC2033GANFET N-CH 150V 48A DIE |
13,878 | 8.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 150 V | 48A (Ta) | - | 7mOhm @ 25A, 5V | 2.5V @ 9mA | 10 nC @ 5 V | - | 1140 pF @ 75 V | - | - | - | Surface Mount |
|
EPC8004GANFET N-CH 40V 4A DIE |
2,523 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 40 V | 4A (Ta) | 5V | 110mOhm @ 500mA, 5V | 2.5V @ 250µA | 0.45 nC @ 5 V | +6V, -4V | 52 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2035GANFET N-CH 60V 1.7A DIE |
18,372 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 60 V | 1.7A (Ta) | 5V | 45mOhm @ 1A, 5V | 2.5V @ 800µA | 1.15 nC @ 5 V | +6V, -4V | 115 pF @ 30 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|

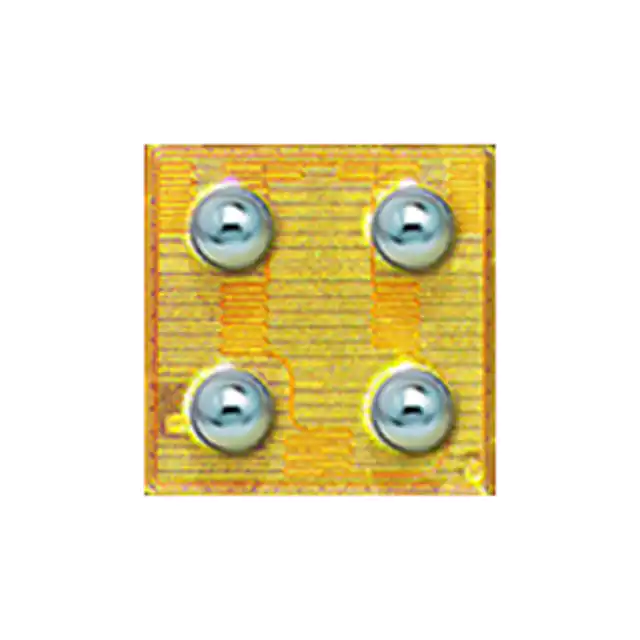

EPC2203GANFET N-CH 80V 1.7A DIE |
38,941 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 80 V | 1.7A (Ta) | 5V | 80mOhm @ 1A, 5V | 2.5V @ 600µA | 0.83 nC @ 5 V | +5.75V, -4V | 88 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2216GANFET N-CH 15V 3.4A DIE |
46,933 | 1.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 15 V | 3.4A (Ta) | 5V | 26mOhm @ 1.5A, 5V | 2.5V @ 1mA | 1.1 nC @ 5 V | +6V, -4V | 118 pF @ 7.5 V | Standard | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2051GANFET N-CH 100V 1.7A DIE |
28,852 | 1.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 100 V | 1.7A (Ta) | 5V | 25mOhm @ 3A, 5V | 2.5V @ 1.5mA | 2.1 nC @ 5 V | +6V, -4V | 258 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2219TRANS GAN 65V AECQ101 3.3OHM DIE |
9,290 | 1.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | GaNFET (Gallium Nitride) | 65 V | 500mA (Ta) | 5V | 3.3Ohm @ 59mA, 5V | 2.5V @ 100µA | 0.064 nC @ 5 V | - | 10 pF @ 32.5 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
EPC2214GANFET N-CH 80V 10A DIE |
35,566 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | GaNFET (Gallium Nitride) | 80 V | 10A (Ta) | 5V | 20mOhm @ 6A, 5V | 2.5V @ 2mA | 2.2 nC @ 5 V | +6V, -4V | 238 pF @ 40 V | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
