| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

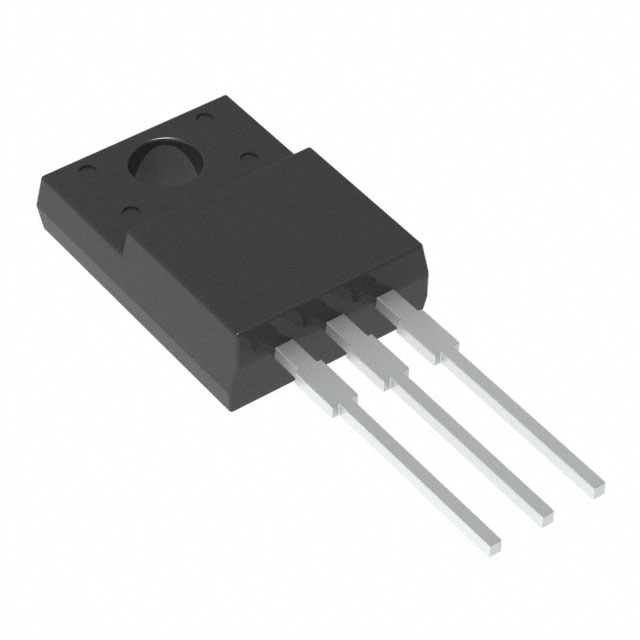

TSM13ND50CIMOSFET N-CH 500V 13A ITO220 |
3,875 | 4.70 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 13A (Tc) | 10V | 480mOhm @ 3.3A, 10V | 3.8V @ 250µA | 39 nC @ 10 V | ±30V | 1877 pF @ 50 V | - | 57W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
TSM70N380CP ROGMOSFET N-CHANNEL 700V 11A TO252 |
14,991 | 6.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 11A (Tc) | 10V | 380mOhm @ 3.3A, 10V | 4V @ 250µA | 18.8 nC @ 10 V | ±30V | 981 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
TSM60NB190CI C0GMOSFET N-CH 600V 18A ITO220AB |
3,874 | 8.49 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 190mOhm @ 6A, 10V | 4V @ 250µA | 31 nC @ 10 V | ±30V | 1273 pF @ 100 V | - | 33.8W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
TSM60NB900CP ROGMOSFET N-CHANNEL 600V 4A TO252 |
12,681 | 3.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 900mOhm @ 1.2A, 10V | 4V @ 250µA | 9.6 nC @ 10 V | ±30V | 315 pF @ 100 V | - | 36.8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
TSM4NB65CH C5GMOSFET N-CHANNEL 650V 4A TO251 |
10,528 | 2.34 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3.37Ohm @ 2A, 10V | 4.5V @ 250µA | 13.46 nC @ 10 V | ±30V | 549 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
TSM7ND60CIMOSFET N-CH 600V 7A ITO220 |
3,970 | 3.53 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 1.2Ohm @ 2A, 10V | 3.8V @ 250µA | 25 nC @ 10 V | ±30V | 1108 pF @ 50 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
TSM7ND65CIMOSFET N-CH 650V 7A ITO220 |
3,916 | 3.53 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 1.35Ohm @ 1.8A, 10V | 3.8V @ 250µA | 25 nC @ 10 V | ±30V | 1124 pF @ 50 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
TSM70N380CH C5GMOSFET N-CH 700V 11A TO251 |
2,754 | 7.16 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 11A (Tc) | 10V | 380mOhm @ 3.3A, 10V | 4V @ 250µA | 18.8 nC @ 10 V | ±30V | 981 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TSM60NB190CZ C0GMOSFET N-CHANNEL 600V 18A TO220 |
3,921 | 7.84 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 190mOhm @ 6A, 10V | 4V @ 250µA | 31 nC @ 10 V | ±30V | 1273 pF @ 100 V | - | 33.8W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TSM60NB041PW C1GMOSFET N-CHANNEL 600V 78A TO247 |
2,489 | 29.60 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 78A (Tc) | 10V | 41mOhm @ 21.7A, 10V | 4V @ 250µA | 139 nC @ 10 V | ±30V | 6120 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TSM650P03CX RFGMOSFET P-CHANNEL 30V 4.1A SOT23 |
10,995 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.1A (Tc) | 2.5V, 10V | 65mOhm @ 4A, 10V | 900mV @ 250µA | 6.4 nC @ 4.5 V | ±12V | 810 pF @ 15 V | - | 1.56W (Tc) | 150°C (TJ) | Surface Mount |
|
TSM2N7002AKCU RFG60V, 0.24A, SINGLE N-CHANNEL POW |
5,910 | 0.39 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 240mA (Ta) | 4.5V, 10V | 2.5Ohm @ 240mA, 10V | 2.5V @ 250µA | 0.68 nC @ 4.5 V | ±20V | 30 pF @ 30 V | - | 298mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
.JPG)
|
TSM070NB04CR RLGMOSFET N-CH 40V 15A/75A 8PDFN |
7,331 | 2.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta), 75A (Tc) | 10V | 7mOhm @ 15A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±20V | 2403 pF @ 20 V | - | 3.1W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
TSM070NH04CR RLG40V, 54A, SINGLE N-CHANNEL POWER |
5,000 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 15A (Ta), 54A (Tc) | 7V, 10V | 7mOhm @ 27A, 10V | 3.6V @ 250µA | 19 nC @ 10 V | ±20V | 1337 pF @ 25 V | - | 46.8W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
TQM110NB04CR RLGMOSFET N-CH 40V 12A/54A 8PDFNU |
4,738 | 2.69 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta), 54A (Tc) | 7V, 10V | 11mOhm @ 12A, 10V | 3.8V @ 250µA | 25 nC @ 10 V | ±20V | 1352 pF @ 20 V | - | 3.1W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank | |
|
TSM070NH04LCV RGG40V, 54A, SINGLE N-CHANNEL POWER |
5,000 | 2.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 14A (Ta), 54A (Tc) | 4.5V, 10V | 7mOhm @ 27A, 10V | 2.2V @ 250µA | 24 nC @ 10 V | ±16V | 1376 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TSM60NC1R5CP ROG600V, 3A, SINGLE N-CHANNEL POWER |
4,900 | 3.08 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3A (Tc) | 10V | 1.5Ohm @ 1A, 10V | 5.5V @ 1mA | 8.1 nC @ 10 V | ±20V | 242 pF @ 25 V | - | 55W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
TSM500N15CS RLG150V, 11A, SINGLE N-CHANNEL POWE |
3,965 | 3.08 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 4A (Ta), 11A (Tc) | 10V | 50mOhm @ 4A, 10V | 4V @ 250µA | 20.5 nC @ 10 V | ±20V | 1123 pF @ 80 V | - | 12.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
TSM056NH04CR RLG40V, 54A, SINGLE N-CHANNEL POWER |
5,000 | 3.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 54A (Tc) | 7V, 10V | 5.6mOhm @ 27A, 10V | 3.6V @ 250µA | 27.3 nC @ 10 V | ±20V | 1942 pF @ 25 V | - | 78.9W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
TSM056NH04LCR RLG40V, 54A, SINGLE N-CHANNEL POWER |
5,000 | 3.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PerFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 54A (Tc) | 4.5V, 10V | 5.6mOhm @ 27A, 10V | 2.2V @ 250µA | 30.4 nC @ 10 V | ±16V | 1940 pF @ 25 V | - | 78.9W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
