| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SK1058-EMOSFET N-CH 160V 7A TO3P |
2,178 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 160 V | 7A (Ta) | - | - | - | - | ±15V | 600 pF @ 10 V | - | 100W (Tc) | 150°C (TJ) | Through Hole |
|
|
2SK2221-EMOSFET N-CH 200V 8A TO3P |
3,600 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 8A (Ta) | - | - | - | - | ±20V | 600 pF @ 10 V | - | 100W (Tc) | 150°C (TJ) | Through Hole |
|
2SK2315TYTR-EMOSFET N-CH 60V 2A UPAK |
3,465 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 3V, 4V | 450mOhm @ 1A, 4V | - | - | ±20V | 173 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
HAF1002-90STL-EMOSFET P-CH 60V 15A 4LDPAK |
3,428 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 15A (Ta) | 4V, 10V | 90mOhm @ 7.5A, 10V | - | - | +3V, -16V | - | - | 50W (Tc) | 150°C (TJ) | Surface Mount |
|
HAT2088R-EL-EMOSFET N-CH 200V 2A 8SOP |
2,002 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 2A (Ta) | 10V | 440mOhm @ 1A, 10V | - | 13 nC @ 10 V | ±30V | 450 pF @ 25 V | - | 2.5W (Ta) | 150°C (TJ) | Surface Mount |
|
HAT2140H-EL-EMOSFET N-CH 100V 25A LFPAK |
3,727 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Ta) | 7V, 10V | 16mOhm @ 12.5A, 10V | - | 105 nC @ 10 V | ±20V | 6500 pF @ 10 V | - | 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2143H-EL-EMOSFET N-CH 30V 40A LFPAK |
2,630 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4.5V, 10V | 6.1mOhm @ 20A, 10V | - | 40 nC @ 10 V | ±20V | 2450 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2164H-EL-EMOSFET N-CH 30V 60A LFPAK |
3,968 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Ta) | 4.5V, 10V | 3.1mOhm @ 30A, 10V | - | 50 nC @ 4.5 V | ±20V | 7600 pF @ 10 V | - | 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2171H-EL-EMOSFET N-CH 40V 40A LFPAK |
3,949 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Ta) | 7V, 10V | 4.8mOhm @ 20A, 10V | - | 52 nC @ 10 V | ±20V | 3750 pF @ 10 V | - | 25W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2174H-EL-EMOSFET N-CH 100V 20A LFPAK |
3,843 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Ta) | 8V, 10V | 27mOhm @ 10A, 10V | - | 33.5 nC @ 10 V | ±20V | 2280 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|
HAT2261H-EL-EMOSFET N-CH 30V 45A 5LFPAK |
3,368 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Ta) | 4.5V, 10V | 3.8mOhm @ 22.5A, 10V | - | 27 nC @ 4.5 V | ±20V | 4400 pF @ 10 V | - | 25W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2267H-EL-EMOSFET N-CH 80V 25A LFPAK |
3,310 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 25A (Ta) | 6V, 10V | 16mOhm @ 12.5A, 10V | - | 30 nC @ 10 V | ±20V | 2150 pF @ 10 V | - | 25W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2175H-EL-EMOSFET N-CH 100V 15A LFPAK |
3,065 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Ta) | 8V, 10V | 42mOhm @ 7.5A, 10V | - | 21 nC @ 10 V | ±20V | 1445 pF @ 10 V | - | 15W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2197R-EL-EMOSFET N-CH 30V 16A 8SOP |
3,342 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 6.7mOhm @ 8A, 10V | - | 18 nC @ 4.5 V | ±20V | 2650 pF @ 10 V | - | 2.5W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RJK0349DSP-00#J0MOSFET N-CH 30V 20A 8SOP |
2,576 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 3.8mOhm @ 10A, 10V | - | 25 nC @ 4.5 V | ±20V | 3850 pF @ 10 V | - | 2.5W (Ta) | 150°C (TJ) | Surface Mount |
|
|
HAT2141H-EL-EMOSFET N-CH 100V 15A LFPAK |
3,647 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Ta) | 7V, 10V | 27.5mOhm @ 7.5A, 10V | - | 46 nC @ 10 V | ±20V | 3200 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT1072H-EL-EMOSFET P-CH 30V 40A LFPAK |
2,020 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4.5V, 10V | 4.5mOhm @ 20A, 10V | - | 155 nC @ 10 V | +10V, -20V | 9500 pF @ 10 V | - | 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2170H-EL-EMOSFET N-CH 40V 45A LFPAK |
3,593 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 45A (Ta) | 7V, 10V | 4.2mOhm @ 22.5A, 10V | 3V @ 1mA | 62 nC @ 10 V | ±20V | 4650 pF @ 10 V | - | 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
HAT2172H-EL-EMOSFET N-CH 40V 30A LFPAK |
3,906 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 30A (Ta) | 7V, 10V | 7.5mOhm @ 15A, 10V | 3V @ 1mA | 32 nC @ 10 V | ±20V | 2420 pF @ 10 V | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|

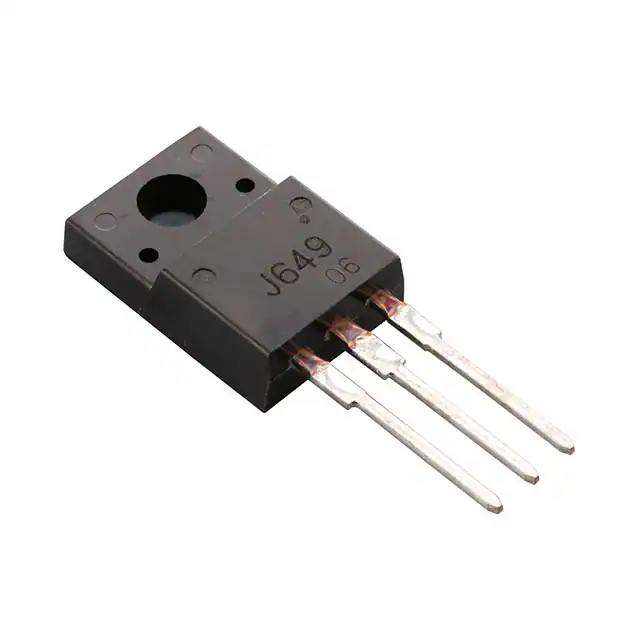

2SJ649-AZMOSFET P-CH 60V 20A TO220 |
2,435 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4V, 10V | 48mOhm @ 10A, 10V | - | 38 nC @ 10 V | ±20V | 1900 pF @ 10 V | - | 2W (Ta), 25W (Tc) | 150°C (TJ) | Through Hole |
