| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDFS2P753ZMOSFET P-CH 30V 3A 8SOIC |
425,327 | 0.27 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | - | 115mOhm @ 3A, 10V | 3V @ 250µA | 9.3 nC @ 10 V | ±25V | 455 pF @ 10 V | Schottky Diode (Isolated) | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ISL9N312AD3N-CHANNEL POWER MOSFET |
211,233 | 0.27 |
RFQ |
Datasheet |
Bulk | UltraFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 12mOhm @ 50A, 10V | 3V @ 250µA | 38 nC @ 10 V | ±20V | 1450 pF @ 15 V | - | 75W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDZ202PMOSFET P-CH 20V 5.5A 12BGA |
155,615 | 0.27 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.5A (Ta) | 2.5V, 4.5V | 45mOhm @ 5.5A, 4.5V | 1.5V @ 250µA | 13 nC @ 4.5 V | ±12V | 884 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ISL9N312AD3STN-CHANNEL POWER MOSFET |
138,810 | 0.27 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 12mOhm @ 50A, 10V | 3V @ 250µA | 38 nC @ 10 V | ±20V | 1450 pF @ 15 V | - | 75W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDZ493PMOSFET P-CH 20V 4.6A 9BGA |
47,700 | 0.27 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Ta) | 2.5V, 4.5V | 46mOhm @ 4.6A, 4.5V | 1.5V @ 250µA | 11 nC @ 4.5 V | ±12V | 754 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDFME2P823ZT2.6A, 20V, P-CHANNEL MOSFET |
40,000 | 0.27 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.8V, 4.5V | 142mOhm @ 2.3A, 4.5V | 1V @ 250µA | 7.7 nC @ 4.5 V | ±8V | 405 pF @ 10 V | Schottky Diode (Isolated) | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFS730BN-CHANNEL POWER MOSFET |
23,487 | 0.27 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 5.5A (Tj) | 10V | 1Ohm @ 2.75A, 10V | 4V @ 250µA | 33 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

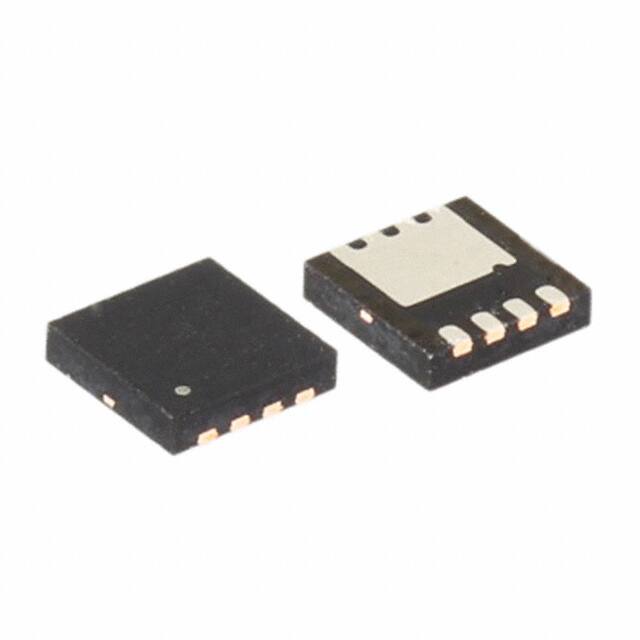

FDMC4436BZPOWER FIELD-EFFECT TRANSISTOR |
23,228 | 0.27 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FQPF4N20MOSFET N-CH 200V 2.8A TO220F |
15,902 | 0.27 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 2.8A (Tc) | 10V | 1.4Ohm @ 1.4A, 10V | 5V @ 250µA | 6.5 nC @ 10 V | ±30V | 220 pF @ 25 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SFR9224TMP-CHANNEL POWER MOSFET |
375,020 | 0.28 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 2.5A (Tc) | 10V | 2.4Ohm @ 1.3A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±30V | 540 pF @ 25 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SFU9224TUP-CHANNEL POWER MOSFET |
273,525 | 0.28 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 2.5A (Tc) | 10V | 2.4Ohm @ 1.3A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±30V | 540 pF @ 25 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SFR9224TFP-CHANNEL POWER MOSFET |
167,865 | 0.28 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 2.5A (Tc) | 10V | 2.4Ohm @ 1.3A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±30V | 540 pF @ 25 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
HUF76013D3STMOSFET N-CH 20V 20A TO252AA |
150,700 | 0.28 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Tc) | 5V, 10V | 22mOhm @ 20A, 10V | 3V @ 250µA | 17 nC @ 10 V | ±20V | 624 pF @ 20 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NDS352PMOSFET P-CH 20V 850MA SUPERSOT3 |
29,286 | 0.28 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 850mA (Ta) | 4.5V, 10V | 350mOhm @ 1A, 10V | 2.5V @ 250µA | 4 nC @ 5 V | ±12V | 125 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
HUFA76419P3MOSFET N-CH 60V 29A TO220-3 |
18,893 | 0.28 |
RFQ |
Datasheet |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 29A (Tc) | 4.5V, 10V | 35mOhm @ 29A, 10V | 3V @ 250µA | 28 nC @ 10 V | ±16V | 900 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
HUFA76413D3STMOSFET N-CH 60V 20A TO252AA |
12,343 | 0.28 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 49mOhm @ 20A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±16V | 645 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF730BN-CHANNEL POWER MOSFET |
475,473 | 0.29 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 5.5A (Tc) | 10V | 1Ohm @ 2.75A, 10V | 4V @ 250µA | 33 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 73W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDZ204PMOSFET P-CH 20V 4.5A 9BGA |
157,309 | 0.29 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4.5V | 45mOhm @ 4.5A, 4.5V | 1.5V @ 250µA | 13 nC @ 4.5 V | ±12V | 884 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDFS6N303MOSFET N-CH 30V 6A 8SOIC |
86,405 | 0.29 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 35mOhm @ 6A, 10V | 3V @ 250µA | 17 nC @ 10 V | ±20V | 350 pF @ 15 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDU8780MOSFET N-CH 25V 35A IPAK |
81,309 | 0.29 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 35A (Tc) | 4.5V, 10V | 8.5mOhm @ 35A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1440 pF @ 13 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
