| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFU9230BTUP-CHANNEL POWER MOSFET |
5,459 | 0.31 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 5.4A (Tc) | 10V | 800mOhm @ 2.7A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 2.5W (Ta), 49W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQI4N20TUMOSFET N-CH 200V 3.6A I2PAK |
5,000 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.6A (Tc) | 10V | 1.4Ohm @ 1.8A, 10V | 5V @ 250µA | 6.5 nC @ 10 V | ±30V | 220 pF @ 25 V | - | 3.13W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQD1N60TMMOSFET N-CH 600V 1A DPAK |
4,980 | 0.31 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1A (Tc) | 10V | 11.5Ohm @ 500mA, 10V | 5V @ 250µA | 6 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRL620AN-CHANNEL POWER MOSFET |
1,890 | 0.33 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 5A (Tc) | 5V | 800mOhm @ 2.5A, 5V | 2V @ 250µA | 15 nC @ 5 V | ±20V | 430 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
HUFA76619D3STMOSFET N-CH 100V 18A TO252AA |
1,688 | 0.33 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 4.5V, 10V | 85mOhm @ 18A, 10V | 3V @ 250µA | 29 nC @ 10 V | ±16V | 767 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FQPF5N30MOSFET N-CH 300V 3.9A TO220F |
1,000 | 0.42 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 3.9A (Tc) | 10V | 900mOhm @ 1.95A, 10V | 5V @ 250µA | 13 nC @ 10 V | ±30V | 430 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQI5N20TUMOSFET N-CH 200V 4.5A I2PAK |
4,195 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 4.5A (Tc) | 10V | 1.2Ohm @ 2.25A, 10V | 5V @ 250µA | 7.5 nC @ 10 V | ±30V | 270 pF @ 25 V | - | 3.13W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQI3N25TUMOSFET N-CH 250V 2.8A I2PAK |
3,648 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.8A (Tc) | 10V | 2.2Ohm @ 1.4A, 10V | 5V @ 250µA | 5.2 nC @ 10 V | ±30V | 170 pF @ 25 V | - | 3.13W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQPF7N20MOSFET N-CH 200V 4.8A TO220F |
3,159 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 4.8A (Tc) | 10V | 690mOhm @ 2.4A, 10V | 5V @ 250µA | 10 nC @ 10 V | ±30V | 400 pF @ 25 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQI13N06TUMOSFET N-CH 60V 13A I2PAK |
2,534 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 13A (Tc) | 10V | 135mOhm @ 6.5A, 10V | 4V @ 250µA | 7.5 nC @ 10 V | ±25V | 310 pF @ 25 V | - | 3.75W (Ta), 45W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FQPF13N06MOSFET N-CH 60V 9.4A TO220F |
2,334 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 9.4A (Tc) | 10V | 135mOhm @ 4.7A, 10V | 4V @ 250µA | 7.5 nC @ 10 V | ±25V | 310 pF @ 25 V | - | 24W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FQP17N08MOSFET N-CH 80V 16.5A TO220-3 |
2,331 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 16.5A (Tc) | 10V | 115mOhm @ 8.25A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±25V | 450 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SSS4N60BTTRANS MOSFET N-CH 600V 4A 3PIN(3 |
1,962 | 0.31 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tj) | 10V | 2.5Ohm @ 2A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQPF7N20LMOSFET N-CH 200V 5A TO220F |
1,711 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 5A (Tc) | 5V, 10V | 750mOhm @ 2.5A, 10V | 2V @ 250µA | 9 nC @ 5 V | ±20V | 500 pF @ 25 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQD3N50CTFMOSFET N-CH 500V 2.5A DPAK |
1,448 | 0.31 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.5A (Tc) | 10V | 2.5Ohm @ 1.25A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±30V | 365 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

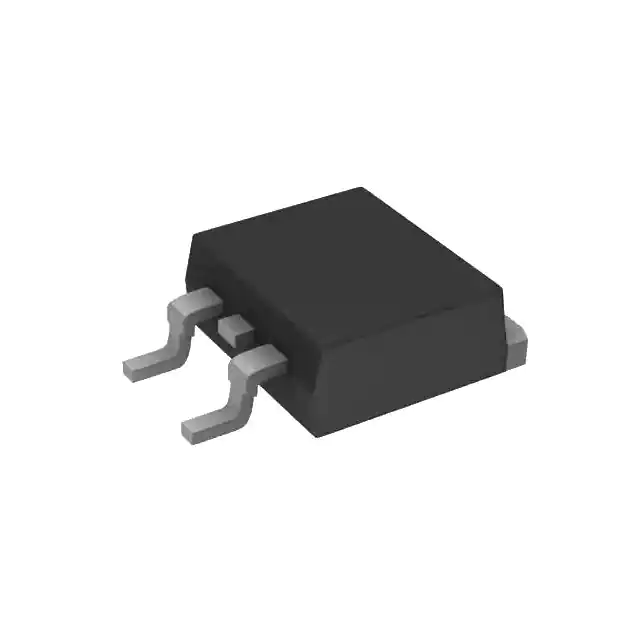

HUF75321S3STN-CHANNEL POWER MOSFET |
1,303 | 0.31 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 35A (Tc) | 10V | 34mOhm @ 35A, 10V | 4V @ 250µA | 44 nC @ 20 V | ±20V | 680 pF @ 25 V | - | 93W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FQD17N08LTFMOSFET N-CH 80V 12.9A TO252 |
1,207 | 0.31 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 12.9A (Tc) | 5V, 10V | 100mOhm @ 6.45A, 10V | 2V @ 250µA | 11.5 nC @ 5 V | ±20V | 520 pF @ 25 V | - | 2.5W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQP6N25MOSFET N-CH 250V 5.5A TO220-3 |
1,189 | 0.31 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 5.5A (Tc) | 10V | 1Ohm @ 2.75A, 10V | 5V @ 250µA | 8.5 nC @ 10 V | ±30V | 300 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQD4P25TFMOSFET P-CH 250V 3.1A DPAK |
1,000 | 0.31 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 250 V | 3.1A (Tc) | 10V | 2.1Ohm @ 1.55A, 10V | 5V @ 250µA | 14 nC @ 10 V | ±30V | 420 pF @ 25 V | - | 2.5W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SFW9530TMMOSFET P-CH 100V 10.5A D2PAK |
1,600 | 0.32 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 10.5A (Tc) | 10V | 300mOhm @ 5.3A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±30V | 1035 pF @ 25 V | - | 3.8W (Ta), 66W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
