| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDZ193PMOSFET P-CH 20V 3A 6WLCSP |
780,536 | 0.22 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.7V, 4.5V | 90mOhm @ 1A, 4.5V | 1.5V @ 250µA | 10 nC @ 10 V | ±12V | 660 pF @ 10 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
HUFA75307T3STPOWER FIELD-EFFECT TRANSISTOR, 2 |
26,380 | 0.23 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.6A (Ta) | 10V | 90mOhm @ 2.6A, 10V | 4V @ 250µA | 17 nC @ 20 V | ±20V | 250 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDFMA2P853MOSFET P-CH 20V 3A 6MICROFET |
21,841 | 0.34 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.8V, 4.5V | 120mOhm @ 3A, 4.5V | 1.3V @ 250µA | 6 nC @ 4.5 V | ±8V | 435 pF @ 10 V | Schottky Diode (Isolated) | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC0202SPOWER FIELD-EFFECT TRANSISTOR |
16,805 | 0.23 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 22.5A (Ta), 40A (Tc) | 4.5V, 10V | 3.15mOhm @ 22.5A, 10V | 3V @ 1mA | 44 nC @ 10 V | ±20V | 2705 pF @ 13 V | - | 2.3W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS6630AMOSFET N-CH 30V 6.5A 8SOIC |
59,894 | 0.24 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 38mOhm @ 6.5A, 10V | 3V @ 250µA | 7 nC @ 5 V | ±20V | 460 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS6690A-NBNP006SINGLE N-CHANNEL, LOGIC LEVEL, P |
6,321 | 0.25 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDFMA3P029ZMOSFET P-CH 30V 3.3A 6MICROFET |
2,319 | 0.25 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.3A (Ta) | - | 87mOhm @ 3.3A, 10V | 3V @ 250µA | 10 nC @ 10 V | - | 435 pF @ 15 V | Schottky Diode (Isolated) | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS8433A-GFDS8433A - MOSFET 20V 47.0 MOHM |
723,388 | 0.26 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDZ663PFDZ663P - FDZ663P - MOSFET P-CHA |
60,000 | 0.27 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.5V, 4.5V | 134mOhm @ 2A, 4.5V | 1.2V @ 250µA | 8.2 nC @ 4.5 V | ±8V | 525 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
TIP42CTU-TTRANS BJTS PNP 100V 6A TO220-3 T |
458,000 | 0.28 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

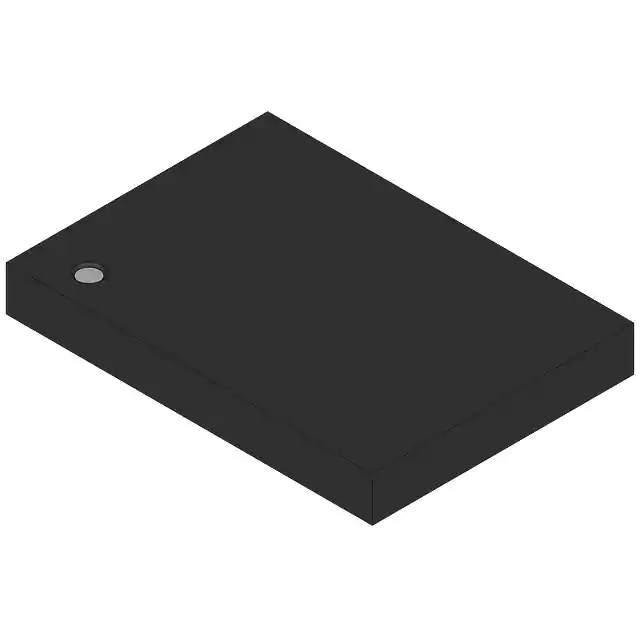

FDMA7628FDMA7628 - SINGLE N-CHANNEL 1.5 |
90,000 | 0.29 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9.4A (Ta) | 1.5V, 4.5V | 14.5mOhm @ 9.4A, 4.5V | 1V @ 250µA | 17.5 nC @ 4.5 V | ±8V | 1680 pF @ 10 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC88849A, 30V, 0.019OHM, N-CHANNEL POW |
448,778 | 0.30 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 15A (Tc) | 4.5V, 10V | 19mOhm @ 9A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 685 pF @ 15 V | - | 2.3W (Ta), 18W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDD8796POWER FIELD-EFFECT TRANSISTOR, 3 |
34,346 | 0.34 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 35A (Tc) | 4.5V, 10V | 5.7mOhm @ 35A, 10V | 2.5V @ 250µA | 52 nC @ 10 V | ±20V | 2610 pF @ 13 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD8780POWER FIELD-EFFECT TRANSISTOR, 3 |
1,003,805 | 0.38 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 35A (Tc) | 4.5V, 10V | 8.5mOhm @ 35A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1440 pF @ 13 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FQPF3N25MOSFET N-CH 250V 2.3A TO220F |
204,848 | 0.40 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.3A (Tc) | 10V | 2.2Ohm @ 1.15A, 10V | 5V @ 250µA | 5.2 nC @ 10 V | ±30V | 170 pF @ 25 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDS6294POWER FIELD-EFFECT TRANSISTOR, 1 |
28,057 | 0.45 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11.3mOhm @ 13A, 10V | 3V @ 250µA | 14 nC @ 5 V | ±20V | 1205 pF @ 15 V | - | 3W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDS8876MOSFET N-CH 30V 12.5A 8SOIC |
615,441 | 0.46 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta) | 4.5V, 10V | 8.2mOhm @ 12.5A, 10V | 2.5V @ 250µA | 36 nC @ 10 V | ±20V | 1650 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMS5361L-F085FDMS5361 - N-CHANNEL POWERTRENCH |
4,166 | 0.46 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 35A (Tc) | 4.5V, 10V | 15mOhm @ 16.5A, 10V | 3V @ 250µA | 44 nC @ 10 V | ±20V | 1980 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMS8025SMOSFET N-CH 30V 24A/49A 8PQFN |
303,536 | 0.48 |
RFQ |
Datasheet |
Bulk | PowerTrench®, SyncFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 49A (Tc) | 4.5V, 10V | 2.8mOhm @ 24A, 10V | 3V @ 1mA | 47 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD8451POWER FIELD-EFFECT TRANSISTOR, 9 |
5,302 | 0.49 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 9A (Ta), 28A (Tc) | 4.5V, 10V | 24mOhm @ 9A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 990 pF @ 20 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
