| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQPF13N50CTC003MOSFET N-CHANNEL 500V, 13A |
20,000 | 1.25 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 13A (Tj) | 10V | 480mOhm @ 6.5A, 10V | 4V @ 250µA | 56 nC @ 10 V | ±30V | 2055 pF @ 25 V | - | 48W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

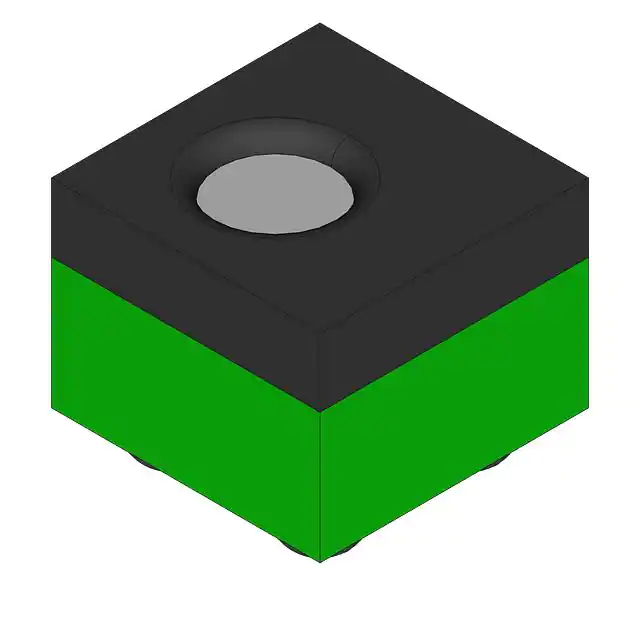

FDZ372NZMOSFET N-CH 20V 4.7A 4WLCSP |
978,110 | 1.26 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.7A (Ta) | - | 50mOhm @ 2A, 4.5V | 1V @ 250µA | 9.8 nC @ 4.5 V | - | 685 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDW6923MOSFET P-CH 20V 3.5A 8TSSOP |
767,045 | 1.28 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 2.5V, 4.5V | 45mOhm @ 3.5A, 4.5V | 1.5V @ 250µA | 16 nC @ 4.5 V | ±12V | 1030 pF @ 10 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDU6692N-CHANNEL POWER MOSFET |
62,804 | 1.28 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 54A (Ta) | 4.5V, 10V | 12mOhm @ 14A, 10V | 3V @ 250µA | 25 nC @ 5 V | ±16V | 2164 pF @ 15 V | - | 1.6W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDS6685MOSFET P-CH 30V 8.8A 8SOIC |
20,331 | 1.28 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.8A (Ta) | 4.5V, 10V | 20mOhm @ 8.8A, 10V | 3V @ 250µA | 24 nC @ 5 V | ±25V | 1604 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDZ7064SN-CHANNEL POWER MOSFET |
27,000 | 1.31 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.5A (Ta) | 4.5V, 10V | 7mOhm @ 13.5A, 10V | 3V @ 1mA | 35 nC @ 5 V | ±16V | 2840 pF @ 15 V | - | 2.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQB85N06TMN-CHANNEL POWER MOSFET |
23,961 | 1.31 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 85A (Tc) | 10V | 10mOhm @ 42.5A, 10V | 4V @ 250µA | 112 nC @ 10 V | ±25V | 4120 pF @ 25 V | - | 3.75W (Ta), 160W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

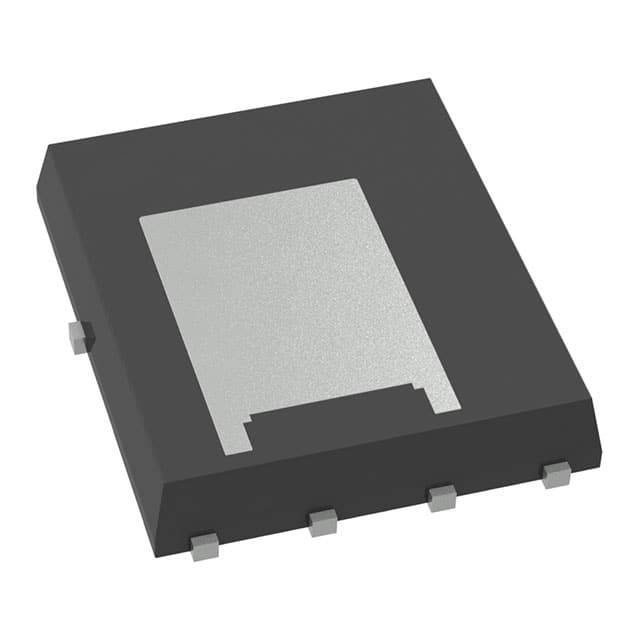

FDMS2508SDCMOSFET N-CH 25V 34A/49A DLCOOL56 |
31,736 | 1.32 |
RFQ |
Datasheet |
Bulk | Dual Cool™, PowerTrench®, SyncFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 34A (Ta), 49A (Tc) | 4.5V, 10V | 1.95mOhm @ 28A, 10V | 3V @ 1mA | 69 nC @ 10 V | ±20V | 4515 pF @ 13 V | - | 3.3W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDB6035ALN-CHANNEL POWER MOSFET |
172,290 | 1.34 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Ta) | 4.5V, 10V | 12mOhm @ 24A, 10V | 3V @ 250µA | 18 nC @ 5 V | ±20V | 1250 pF @ 15 V | - | 52W (Tc) | -65°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD2570MOSFET N-CH 150V 4.7A TO252 |
84,908 | 1.34 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 4.7A (Ta) | 6V, 10V | 80mOhm @ 4.7A, 10V | 4V @ 250µA | 62 nC @ 10 V | ±20V | 1907 pF @ 75 V | - | 3.2W (Ta), 70W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDP6035ALMOSFET N-CH 30V 48A TO220-3 |
106,637 | 1.36 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Ta) | 4.5V, 10V | 12mOhm @ 24A, 10V | 3V @ 250µA | 18 nC @ 5 V | ±20V | 1250 pF @ 15 V | - | 52W (Tc) | -65°C ~ 175°C (TJ) | Through Hole |
|
|
FDW258PMOSFET P-CH 12V 9A 8TSSOP |
92,624 | 1.36 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 9A (Ta) | 1.8V, 4.5V | 11mOhm @ 9A, 4.5V | 1.5V @ 250µA | 73 nC @ 4.5 V | ±8V | 5049 pF @ 5 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDU6644N-CHANNEL POWER MOSFET |
41,002 | 1.36 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 67A (Ta) | 4.5V, 10V | 8.5mOhm @ 16A, 10V | 3V @ 250µA | 35 nC @ 5 V | ±16V | 3087 pF @ 15 V | - | 1.6W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
|
HUFA75639S3ST56A, 100V, 0.025OHM, N-CHANNEL |
33,987 | 33987.00 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 10V | 25mOhm @ 56A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 2000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | |
|
|
FQB6N60TMMOSFET N-CH 600V 6.2A D2PAK |
19,325 | 1.36 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Tc) | 10V | 1.5Ohm @ 3.1A, 10V | 5V @ 250µA | 25 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 3.13W (Ta), 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
HUF75639S3SMOSFET N-CH 100V 56A D2PAK |
20,586 | 1.37 |
RFQ |
Datasheet |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 56A (Tc) | 10V | 25mOhm @ 56A, 10V | 4V @ 250µA | 130 nC @ 20 V | ±20V | 2000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMS8570SDC28A, 25V, 0.0028OHM, N-CHANNEL |
11,053 | 11053.00 |
RFQ |
Datasheet |
Bulk | PowerTrench®, SyncFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta), 60A (Tc) | 4.5V, 10V | 2.8mOhm @ 28A, 10V | 2.2V @ 1mA | 42 nC @ 10 V | ±12V | 2825 pF @ 13 V | Schottky Diode (Body) | 3.3W (Ta), 59W (Tc) | -55°C ~ 150°C (TJ) | |
|
|
FQB25N33TMMOSFET N-CH 330V 25A D2PAK |
17,500 | 1.38 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 330 V | 25A (Tc) | 10V | 230mOhm @ 12.5A, 10V | 5V @ 250µA | 75 nC @ 15 V | ±30V | 2010 pF @ 25 V | - | 3.1W (Ta), 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMS0308CSMOSFET N-CH 30V 22A 8PQFN |
14,783 | 1.38 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta) | - | 3mOhm @ 21A, 10V | 3V @ 1mA | 66 nC @ 10 V | - | 4225 pF @ 15 V | - | 2.5W (Ta), 65W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD6680AMOSFET N-CH 30V 14A/56A DPAK |
209,395 | 1.41 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta), 56A (Tc) | 4.5V, 10V | 9.5mOhm @ 14A, 10V | 3V @ 250µA | 20 nC @ 5 V | ±20V | 1425 pF @ 15 V | - | 2.8W (Ta), 60W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
