| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCHD190N65S3R0-F155MOSFET N-CH 650V 17A TO247 |
3,947 | 5.01 |
RFQ |
Datasheet |
Tube | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17A (Tc) | 10V | 190mOhm @ 8.5A, 10V | 4.5V @ 390µA | 33 nC @ 10 V | ±30V | 1350 pF @ 400 V | - | 144W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTMTS0D6N04CLTXGMOSFET N-CH 40V 554.5A |
2,469 | 9.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 554.5A (Tc) | 4.5V, 10V | 0.42mOhm @ 50A, 10V | 2V @ 250µA | 126 nC @ 4.5 V | ±20V | 16013 pF @ 20 V | - | 5W | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTMJS1D4N06CLTWGMOSFET N-CH 60V 39A/262A 8LFPAK |
3,006 | 9.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 39A (Ta), 262A (Tc) | 4.5V, 10V | 1.3mOhm @ 50A, 10V | 2V @ 280µA | 103 nC @ 10 V | ±20V | 7430 pF @ 30 V | - | 4W (Ta), 180W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

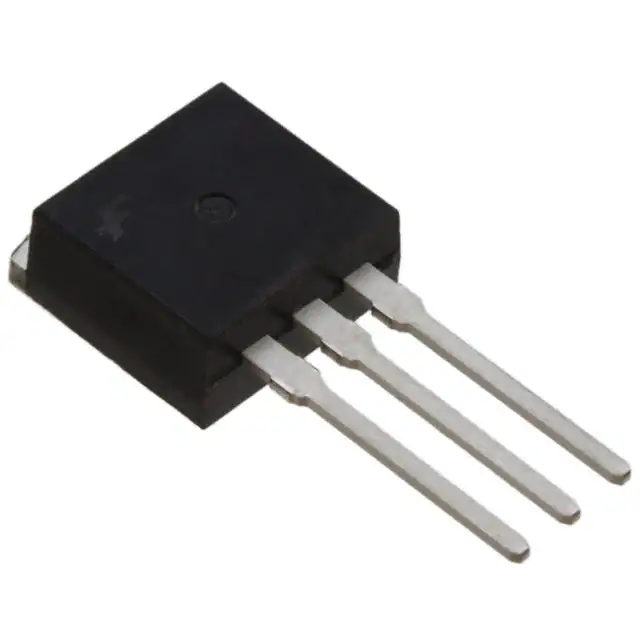

FDI030N06MOSFET N-CH 60V 120A I2PAK |
3,533 | 5.20 |
RFQ |
Datasheet |
Tube,Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.2mOhm @ 75A, 10V | 4.5V @ 250µA | 151 nC @ 10 V | ±20V | 9815 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FQAF16N50MOSFET N-CH 500V 11.3A TO3PF |
3,364 | 5.37 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 500 V | 11.3A (Tc) | 10V | 320mOhm @ 5.65A, 10V | 5V @ 250µA | 75 nC @ 10 V | ±30V | 3000 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDPF2710TMOSFET N-CH 250V 25A TO220F |
3,316 | 5.37 |
RFQ |
Datasheet |
Bulk,Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 25A (Tc) | 10V | 42.5mOhm @ 25A, 10V | 5V @ 250µA | 101 nC @ 10 V | ±30V | 7280 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NVMFS5C404NT1GMOSFET N-CH 40V 49A 5DFN |
3,013 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 378A (Tc) | 10V | 0.7mOhm @ 50A, 10V | 4V @ 250µA | 128 nC @ 10 V | ±20V | 8400 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDP054N10MOSFET N-CH 100V 120A TO220-3 |
2,579 | 5.62 |
RFQ |
Datasheet |
Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4.5V @ 250µA | 203 nC @ 10 V | ±20V | 13280 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FCP110N65FMOSFET N-CH 650V 35A TO220-3 |
3,417 | 4.55 |
RFQ |
Datasheet |
Tube | FRFET®, SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 110mOhm @ 17.5A, 10V | 5V @ 3.5mA | 145 nC @ 10 V | ±20V | 4895 pF @ 100 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDH45N50F-F133MOSFET N-CH 500V 45A TO247-3 |
2,723 | 6.81 |
RFQ |
Datasheet |
Bulk,Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 45A (Tc) | 10V | 120mOhm @ 22.5A, 10V | 5V @ 250µA | 137 nC @ 10 V | ±30V | 6630 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQA140N10MOSFET N-CH 100V 140A TO3PN |
3,290 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 140A (Tc) | 10V | 10mOhm @ 70A, 10V | 4V @ 250µA | 285 nC @ 10 V | ±25V | 7900 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NTMFS011N15MCMOSFET N-CH 150V 10.7A/78A 8PQFN |
3,496 | 12.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 10.7A (Ta), 78A (Tc) | 8V, 10V | 11.5mOhm @ 35A, 10V | 4.5V @ 194µA | 46 nC @ 10 V | ±20V | 3592 pF @ 75 V | - | 2.7W (Ta), 147W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTHL160N120SC1SICFET N-CH 1200V 17A TO247-3 |
450 | 8.41 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17A (Tc) | 20V | 224mOhm @ 12A, 20V | 4.3V @ 2.5mA | 34 nC @ 20 V | +25V, -15V | 665 pF @ 800 V | - | 119W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NVR5198NLT3GMOSFET N-CH 60V 1.7A SOT23-3 |
3,331 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.7A (Ta) | 4.5V, 10V | 155mOhm @ 1A, 10V | 2.5V @ 250µA | 5.1 nC @ 10 V | ±20V | 182 pF @ 25 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTHL095N65S3HFMOSFET N-CH 650V 36A TO247-3 |
3,260 | 10.12 |
RFQ |
Datasheet |
Tube | FRFET®, SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 36A (Tc) | 10V | 95mOhm @ 18A, 10V | 5V @ 860µA | 66 nC @ 10 V | ±30V | 2930 pF @ 400 V | - | 272W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCH47N60F-F133MOSFET N-CH 600V 47A TO247-3 |
3,507 | 10.82 |
RFQ |
Datasheet |
Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 70mOhm @ 23.5A, 10V | 5V @ 250µA | 270 nC @ 10 V | ±30V | 8000 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCH041N60FMOSFET N-CH 600V 76A TO247-3 |
2,079 | 11.62 |
RFQ |
Datasheet |
Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 250µA | 360 nC @ 10 V | ±20V | 14365 pF @ 100 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NTHL060N090SC1SICFET N-CH 900V 46A TO247-3 |
2,937 | 11.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 900 V | 46A (Tc) | 15V | 84mOhm @ 20A, 15V | 4.3V @ 5mA | 87 nC @ 15 V | +19V, -10V | 1770 pF @ 450 V | - | 221W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NTHL040N65S3FMOSFET N-CH 650V 65A TO247-3 |
2,788 | 11.72 |
RFQ |
Datasheet |
Tube | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 65A (Tc) | 10V | 40mOhm @ 32.5A, 10V | 5V @ 6.5mA | 158 nC @ 10 V | ±30V | 5940 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NVH4L080N120SC1SICFET N-CH 1200V 29A TO247-4 |
3,775 | 12.30 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 29A (Tc) | 20V | 110mOhm @ 20A, 20V | 4.3V @ 5mA | 56 nC @ 20 V | +25V, -15V | 1670 pF @ 800 V | - | 170mW (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
