| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQD3N60CTM-WSMOSFET N-CH 600V 2.4A DPAK |
3,630 | 1.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.4A (Tc) | 10V | 3.4Ohm @ 1.2A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 565 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVMYS014N06CLTWGMOSFET N-CH 60V 12A/36A 4LFPAK |
3,548 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta), 36A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2V @ 25µA | 9.7 nC @ 10 V | ±20V | 620 pF @ 25 V | - | 3.8W (Ta), 37W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FCD7N60TM-WSMOSFET N-CH 600V 7A DPAK |
2,152 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

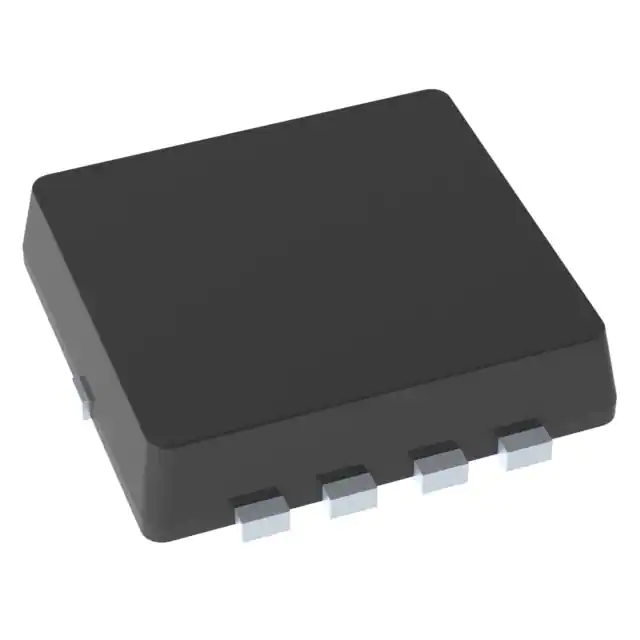

NVTFS5C670NLTAGMOSFET N-CH 60V 16A/70A 8WDFN |
2,355 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 16A (Ta), 70A (Tc) | 4.5V, 10V | 6.8mOhm @ 35A, 10V | 2V @ 250µA | 20 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.2W (Ta), 63W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVMFS4C05NT3GMOSFET N-CH 30V 24.7A/116A 5DFN |
2,659 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 24.7A (Ta), 116A (Tc) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.2V @ 250µA | 30 nC @ 10 V | ±20V | 1972 pF @ 15 V | - | 3.61W (Ta), 79W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS4C05NTAGMOSFET N-CH 30V 22A/102A 8WDFN |
2,784 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 102A (Tc) | 4.5V, 10V | 3.6mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 1988 pF @ 15 V | - | 3.2W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTTFS4C02NTAGMOSFET N-CH 30V 170A 8WDFN |
2,144 | 1.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 170A (Tc) | 4.5V, 10V | 2.25mOhm @ 20A, 10V | 2.2V @ 250µA | 20 nC @ 4.5 V | ±20V | 2980 pF @ 15 V | - | 91W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS5H419NLT1GMOSFET N-CH 40V 29A/155A 5DFN |
3,910 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 29A (Ta), 155A (Tc) | 4.5V, 10V | 2.1mOhm @ 20A, 10V | 2V @ 250µA | 45 nC @ 10 V | ±20V | 2900 pF @ 20 V | - | 3.1W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVMFS5C460NLAFT1GMOSFET N-CH 40V 21A/78A 5DFN |
3,512 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 21A (Ta), 78A (Tc) | 4.5V, 10V | 4.5mOhm @ 35A, 10V | 2V @ 250µA | 23 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.6W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTTFS010N10MCLTAGMOSFET N-CH 100V 10.7A/50A 8WDFN |
3,874 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10.7A (Ta), 50A (Tc) | 4.5V, 10V | 10.6mOhm @ 15A, 10V | 3V @ 85µA | 30 nC @ 10 V | ±20V | 2150 pF @ 50 V | - | 2.3W (Ta),52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTD5802NT4GMOSFET N-CH 40V 16.4A/101A DPAK |
2,167 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16.4A (Ta), 101A (Tc) | 5V, 10V | 4.4mOhm @ 50A, 10V | 3.5V @ 250µA | 100 nC @ 10 V | ±20V | 5025 pF @ 25 V | - | 2.5W (Ta), 93.75W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTTFS4C05NTAGMOSFET N-CH 30V 12A/75A 8WDFN |
2,371 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 75A (Tc) | 4.5V, 10V | 3.6mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 1988 pF @ 15 V | - | 820mW (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVD5C684NLT4GMOSFET N-CHANNEL 60V 38A DPAK |
3,643 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 38A (Tc) | 4.5V, 10V | 16.5mOhm @ 15A, 10V | 2.1V @ 250µA | 4.6 nC @ 4.5 V | ±20V | 700 pF @ 25 V | - | 27W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS5C454NLWFTAGMOSFET N-CHANNEL 40V 85A 8WDFN |
2,743 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 85A (Tc) | 4.5V, 10V | 4mOhm @ 20A, 10V | 2.2V @ 250µA | 8.2 nC @ 4.5 V | ±20V | 1600 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS5C673NLWFAFT1GMOSFET N-CHANNEL 60V 50A 5DFN |
2,768 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 9.2mOhm @ 25A, 10V | 2V @ 35µA | 9.5 nC @ 10 V | ±20V | 880 pF @ 25 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTD6414ANT4GMOSFET N-CH 100V 32A DPAK |
3,505 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 32A (Tc) | 10V | 37mOhm @ 32A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC7660MOSFET N-CH 30V 20A/40A POWER33 |
3,217 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 40A (Tc) | 4.5V, 10V | 2.2mOhm @ 20A, 10V | 2.5V @ 250µA | 86 nC @ 10 V | ±20V | 4830 pF @ 15 V | - | 2.3W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS5C468NLT1GMOSFET N-CH 40V 5DFN |
195 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 37A (Tc) | 4.5V, 10V | 10.3mOhm @ 20A, 10V | 2V @ 250µA | 7.3 nC @ 10 V | ±20V | 570 pF @ 20 V | - | 3.5W (Ta), 28W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD9409L-F085MOSFET N-CH 40V 90A TO252 |
2,485 | 1.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 90A (Tc) | 4.5V, 10V | 2.6mOhm @ 80A, 10V | 3V @ 250µA | 68 nC @ 10 V | ±20V | 3360 pF @ 20 V | - | 150W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTTFS1D2N02P1EMOSFET N-CH 25V 23A/180A 8PQFN |
3,600 | 1.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 23A (Ta), 180A (Tc) | 4.5V, 10V | 1mOhm @ 38A, 10V | 2V @ 934µA | 24 nC @ 4.5 V | +16V, -12V | 4040 pF @ 13 V | - | 820mW (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
