| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCH3375-TL-W-ZMOSFET P-CH 30V 1.6A SC-70FL |
3,798 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | 4V, 10V | - | - | - | ±20V | - | - | - | - | - | |
|
|
MCH3478-TL-W-ZMOSFET P-CH 30V 1.6A SC-70FL |
2,984 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | 1.8V, 4.5V | - | - | - | ±12V | - | - | - | - | - | |
|

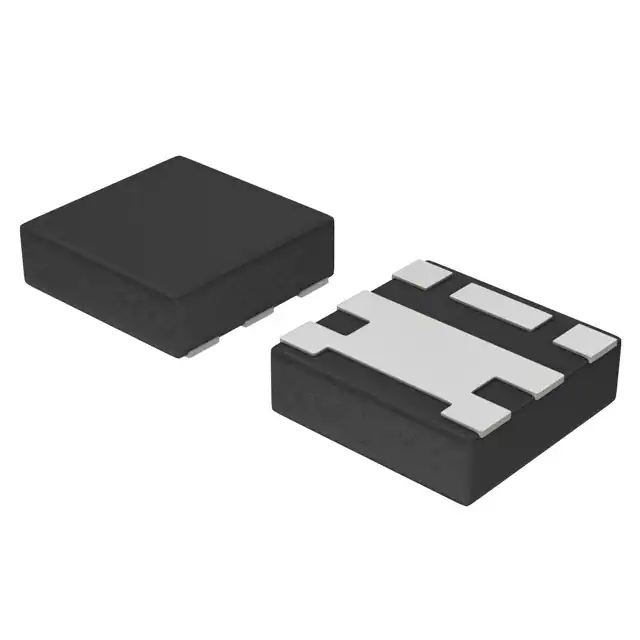

NTLUS3A39PZCTAGMOSFET P-CH 20V 3.4A 6UDFN |
69,000 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | µCool™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta) | 1.5V, 4.5V | 39mOhm @ 4A, 4.5V | 1V @ 250µA | 10.4 nC @ 4.5 V | ±8V | 920 pF @ 15 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS3A39PZCTBGMOSFET P-CH 20V 3.4A 6UDFN |
3,523 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | µCool™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta) | 1.5V, 4.5V | 39mOhm @ 4A, 4.5V | 1V @ 250µA | 10.4 nC @ 4.5 V | ±8V | 920 pF @ 15 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS3A90PZCTAGMOSFET P-CH 20V 2.6A 6UDFN |
2,664 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | µCool™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.5V, 4.5V | 62mOhm @ 4A, 4.5V | 1V @ 250µA | 12.3 nC @ 4.5 V | ±8V | 950 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS3A90PZCTBGMOSFET P-CH 20V 2.6A 6UDFN |
2,749 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | µCool™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.5V, 4.5V | 62mOhm @ 4A, 4.5V | 1V @ 250µA | 12.3 nC @ 4.5 V | ±8V | 950 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS4H013NFT1GMOSFET N-CH 25V 43A/269A 5DFN |
1,500 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 43A (Ta), 269A (Tc) | 4.5V, 10V | 0.9mOhm @ 30A, 10V | 2.1V @ 250µA | 56 nC @ 10 V | ±20V | 3923 pF @ 12 V | - | 2.7W (Ta), 104W (Tc) | 150°C (TJ) | Surface Mount |
|
|
NTMFS5C410NLTWFT1GMOSFET N-CH 40V 50A/330A 5DFN |
3,754 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 330A (Tc) | 4.5V, 10V | 0.9mOhm @ 50A, 10V | 2V @ 250µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTTFS4985NFTWGMOSFET N-CH 30V 16.3A/64A 8WDFN |
24,000 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16.3A (Ta), 64A (Tc) | 4.5V, 10V | 3.5mOhm @ 20A, 10V | 2.3V @ 250µA | 29.4 nC @ 10 V | ±20V | 2075 pF @ 15 V | - | 1.47W (Ta), 22.73W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTFS5824NLTAGMOSFET N-CH 60V 20A 8WDFN |
2,525 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS5824NLTWGMOSFET N-CH 60V 20A 8WDFN |
3,364 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS5824NLWFTAGMOSFET N-CH 60V 20A 8WDFN |
3,243 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS5824NLWFTWGMOSFET N-CH 60V 20A 8WDFN |
2,122 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
2SK4094-1EMOSFET N-CH 60V 100A TO220-3 |
5,292 | 2.20 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 5mOhm @ 50A, 10V | - | 220 nC @ 10 V | ±20V | 12500 pF @ 20 V | - | 1.75W (Ta), 90W (Tc) | 150°C (TJ) | Through Hole |
|
EFC4612R-W-TRMOSFET N-CH 24V 6A EFCP |
20,000 | 0.11 |
RFQ |
Tape & Reel (TR),Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
SCH1439-TL-WMOSFET N-CH 30V 3.5A SOT563/SCH6 |
19,895 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 4V, 10V | 72mOhm @ 1.5A, 10V | 2.6V @ 1mA | 5.6 nC @ 10 V | ±20V | 280 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
SCH1433-TL-WMOSFET N-CH 20V 3.5A SOT563/SCH6 |
30,000 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 1.8V, 4.5V | 64mOhm @ 1.5A, 4.5V | 1.3V @ 1mA | 2.8 nC @ 4.5 V | ±10V | 260 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SCH1332-TL-WMOSFET P-CH 20V 2.5A SOT563/SCH6 |
17,524 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk,Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 1.8V, 4.5V | 95mOhm @ 1.5A, 4.5V | 1.3V @ 1mA | 4.6 nC @ 4.5 V | ±10V | 375 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
SCH1436-TL-WMOSFET N-CH 30V 1.8A SOT563/SCH6 |
19,995 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.8A (Ta) | 4V, 10V | 180mOhm @ 900mA, 10V | 2.6V @ 1mA | 2 nC @ 10 V | ±20V | 88 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SCH1330-TL-WMOSFET P-CH 20V 1.5A SOT563/SCH6 |
19,373 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 1.8V, 4.5V | 241mOhm @ 750mA, 4.5V | 1.4V @ 1mA | 1.7 nC @ 4.5 V | ±10V | 120 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
