| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFS5C423NLT1GMOSFET N-CH 40V 126A 5DFN |
3,707 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 4.5V, 10V | 2mOhm @ 50A, 10V | 2V @ 250µA | 50 nC @ 10 V | ±20V | 3100 pF @ 20 V | - | 3.7W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS5C670NLT3GMOSFET N-CH 60V 17A/71A 5DFN |
2,654 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 17A (Ta), 71A (Tc) | 4.5V, 10V | 6.1mOhm @ 35A, 10V | 2V @ 250µA | 20 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.6W (Ta), 61W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
2SK4196LS-1EMOSFET N-CH 500V 5A TO220F-3FS |
2,148 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.56Ohm @ 2.8A, 10V | - | 14.6 nC @ 10 V | ±30V | 360 pF @ 30 V | - | 2W (Ta), 30W (Tc) | 150°C (TJ) | Through Hole |
|
3LP01C-TB-EMOSFET P-CH 30V 100MA 3CP |
217,421 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 1.5V, 4V | 10.4Ohm @ 50mA, 4V | - | 1.43 nC @ 10 V | ±10V | 7.5 pF @ 10 V | - | 250mW (Ta) | 150°C (TJ) | Surface Mount |
|
BBL4001-1EMOSFET N-CH 60V 74A TO220-3 FP |
2,778 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 74A (Ta) | 4V, 10V | 6.1mOhm @ 37A, 10V | 2.6V @ 1mA | 135 nC @ 10 V | ±20V | 6900 pF @ 20 V | - | 2W (Ta), 35W (Tc) | 150°C (TJ) | Through Hole |
|
CPH6355-TL-WMOSFET P-CH 30V 3A 6CPH |
3,446 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 4V, 10V | 169mOhm @ 1.5A, 10V | 2.6V @ 1mA | 3.9 nC @ 10 V | ±20V | 172 pF @ 10 V | - | 1.6W (Ta) | 150°C (TJ) | Surface Mount |
|
ECH8315-TL-WMOSFET P-CH 30V 7.5A SOT28FL |
2,899 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4V, 10V | 25mOhm @ 3.5A, 10V | 2.6V @ 1mA | 18 nC @ 10 V | ±20V | 875 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
MCH3475-TL-WMOSFET N-CH 30V 1.8A SC70 |
2,154 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.8A (Ta) | 4V, 10V | 180mOhm @ 900mA, 10V | 2.6V @ 1mA | 2 nC @ 10 V | ±20V | 88 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH3476-TL-WMOSFET N-CH 20V 2A SC70FL/MCPH3 |
114,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.8V, 4.5V | 125mOhm @ 1A, 4.5V | 1.3V @ 1mA | 1.8 nC @ 4.5 V | ±12V | 128 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH3477-TL-WMOSFET N-CH 20V 4.5A SC70 |
94,846 | 0.14 |
RFQ |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 1.8V, 4.5V | 38mOhm @ 2A, 4.5V | 1.3V @ 1mA | 5.1 nC @ 4.5 V | ±12V | 410 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount | |
|
MCH6320-TL-WMOSFET P-CH 12V 3.5A MCPH6 |
2,074 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 1.8V, 4.5V | 70mOhm @ 1.5A, 4.5V | 1.4V @ 1mA | 5.6 nC @ 4.5 V | ±10V | 405 pF @ 6 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH6336-TL-WMOSFET P-CH 12V 5A SC88FL/MCPH6 |
3,907 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 5A (Ta) | 1.8V, 4.5V | 43mOhm @ 3A, 4.5V | 1.4V @ 1mA | 6.9 nC @ 4.5 V | ±10V | 660 pF @ 6 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
MCH6337-TL-WMOSFET P-CH 20V 4.5A 6MCPH |
3,316 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 1.8V, 4.5V | 49mOhm @ 3A, 4.5V | 1.3V @ 1mA | 7.3 nC @ 4.5 V | ±10V | 670 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|

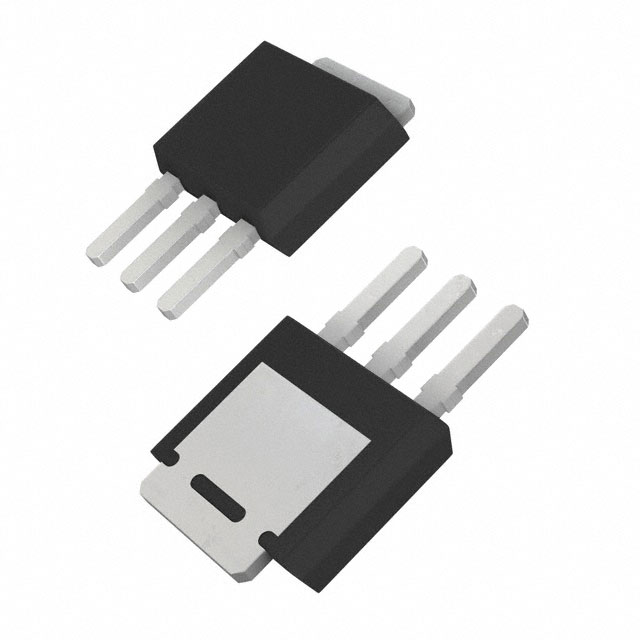

NDD60N745U1-35GMOSFET N-CH 600V 6.6A IPAK |
22,175 | 0.70 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.6A (Tc) | 10V | 745mOhm @ 3.25A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±25V | 440 pF @ 50 V | - | 84W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NDD60N745U1T4GMOSFET N-CH 600V 6.6A DPAK |
13,565 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.6A (Tc) | 10V | 745mOhm @ 3.25A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±25V | 440 pF @ 50 V | - | 84W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NDD60N900U1-1GMOSFET N-CH 600V 5.7A IPAK |
29,100 | 0.59 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.7A (Tc) | 10V | 900mOhm @ 2.5A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±25V | 360 pF @ 50 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NDD60N900U1-35GMOSFET N-CH 600V 5.7A IPAK |
2,855 | 0.00 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.7A (Tc) | 10V | 900mOhm @ 2.5A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±25V | 360 pF @ 50 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NDD60N900U1T4GMOSFET N-CH 600V 5.7A DPAK |
1,922 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.7A (Tc) | 10V | 900mOhm @ 2.5A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±25V | 360 pF @ 50 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NDF04N60ZG-001MOSFET N-CH 600V 4.8A TO-220FP |
900 | 0.41 |
RFQ |
Bulk,Tube | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
NDF06N60ZG-001MOSFET N-CH 600V 7.1A TO-220FP |
2,330 | 0.00 |
RFQ |
Tube,Tube | * | Obsolete | - | - | - | - | 10V | - | - | - | ±30V | - | - | - | - | - |
