| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

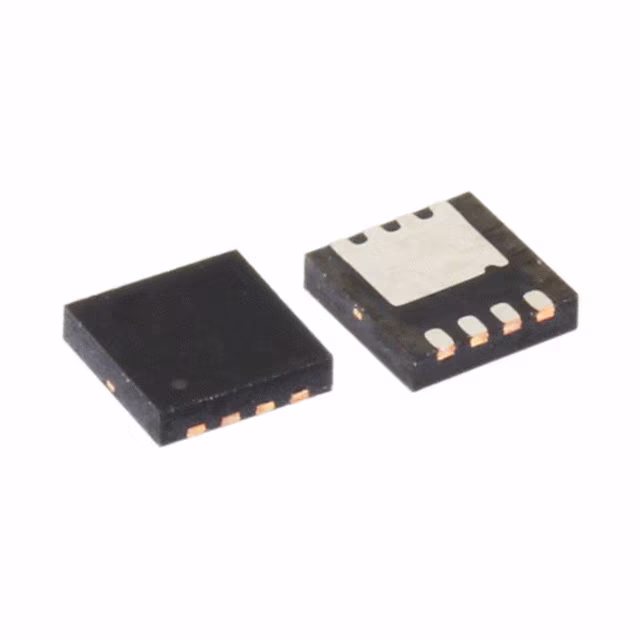

FDMC8878_F126MOSFET N-CH 30V 9.6A/16.5A 8MLP |
2,737 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.6A (Ta), 16.5A (Tc) | 4.5V, 10V | 14mOhm @ 9.6A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1230 pF @ 15 V | - | 2.1W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

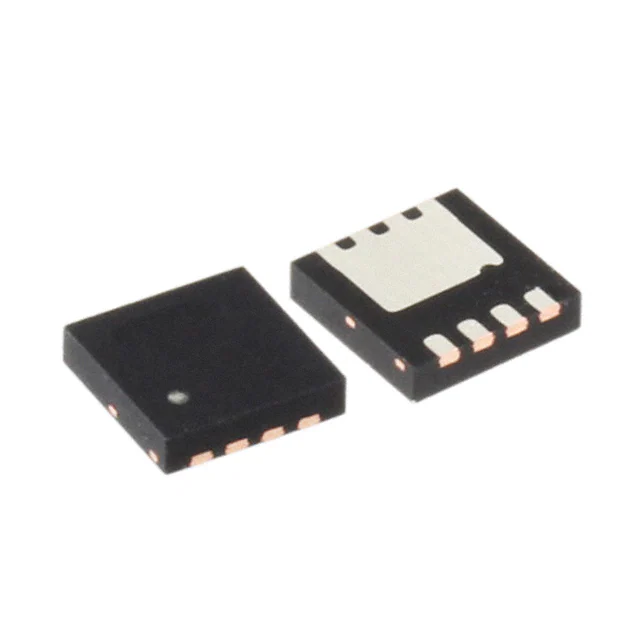

FDMC8884-F126MOSFET N-CH 30V 9A/15A 8MLP |
2,371 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 15A (Tc) | 4.5V, 10V | 19mOhm @ 9A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 685 pF @ 15 V | - | 2.3W (Ta), 18W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQB8N60CTM-WSMOSFET N-CH 600V 7.5A D2PAK |
3,645 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.5A (Tc) | 10V | 1.2Ohm @ 3.75A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±30V | 1255 pF @ 25 V | - | 3.13W (Ta), 147W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQD2N60CTM-WSMOSFET N-CH 600V 1.9A DPAK |
3,113 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.9A (Tc) | 10V | 4.7Ohm @ 950mA, 10V | 4V @ 250µA | 12 nC @ 10 V | ±30V | 235 pF @ 25 V | - | 2.5W (Ta), 44W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQD4P40TM-AM002MOSFET P-CH 400V 2.7A DPAK |
2,629 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 400 V | 2.7A (Tc) | 10V | 3.1Ohm @ 1.35A, 10V | 5V @ 250µA | 23 nC @ 10 V | ±30V | 680 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
FDMA0104MOSFET N-CH 20V 9.4A 6MICROFET |
3,806 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 9.4A (Ta) | - | 14.5mOhm @ 9.4A, 4.5V | 1V @ 250µA | 17.5 nC @ 4.5 V | - | 1680 pF @ 10 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N7002WST1GMOSFET N-CH 60V 0.115A SC70 |
2,169 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | - | - | - | 310mA (Ta) | 4.5V, 10V | - | - | - | ±20V | - | - | - | -55°C ~ 150°C (TJ) | Surface Mount | |
.jpg)
|
2SJ652-1EMOSFET P-CH 60V 28A TO220F-3SG |
2,433 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 28A (Ta) | 4V, 10V | 38mOhm @ 14A, 10V | - | 80 nC @ 10 V | ±20V | 4360 pF @ 20 V | - | 2W (Ta), 30W (Tc) | 150°C (TJ) | Through Hole |
|
2SJ661-1EMOSFET P-CH 60V 38A TO262-3 |
3,659 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 38A (Ta) | 4V, 10V | 39mOhm @ 19A, 10V | - | 80 nC @ 10 V | ±20V | 4360 pF @ 20 V | - | 1.65W (Ta), 65W (Tc) | 150°C (TJ) | Through Hole |
|
|
2SK3703-1EMOSFET N-CH 60V 30A TO220F-3SG |
2,996 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Ta) | 4V, 10V | 26mOhm @ 15A, 10V | - | 40 nC @ 10 V | ±20V | 1780 pF @ 20 V | - | 2W (Ta), 25W (Tc) | 150°C (TJ) | Through Hole |
|
|
2SK3707-1EMOSFET N-CH 100V 20A TO220F-3SG |
721 | 0.58 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Ta) | 4V, 10V | 60mOhm @ 10A, 10V | - | 44 nC @ 10 V | ±20V | 2150 pF @ 20 V | - | 2W (Ta), 25W (Tc) | 150°C (TJ) | Through Hole |
|
|
2SK3745LS-1EMOSFET N-CH 1500V 2A TO220F-3FS |
2,001 | 0.00 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±20V | 380 pF @ 30 V | - | 2W (Ta), 35W (Tc) | 150°C (TJ) | Through Hole |
|

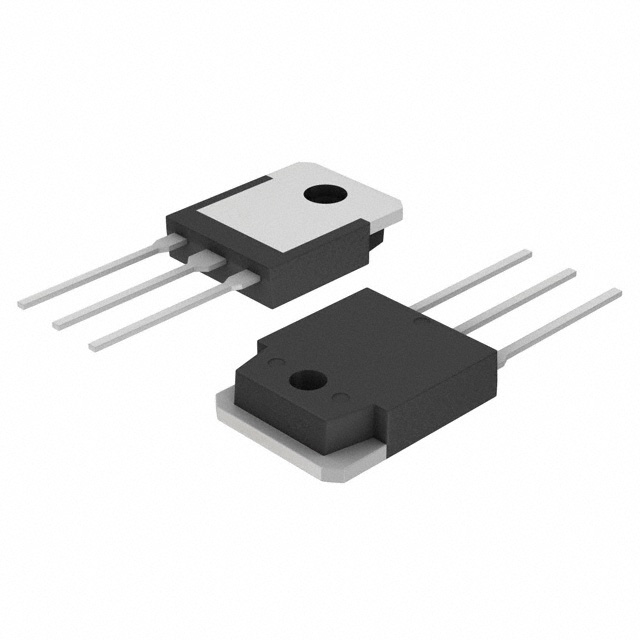

2SK3746-1EMOSFET N-CH 1500V 2A TO3P-3L |
3,018 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±20V | 380 pF @ 30 V | - | 2.5W (Ta), 110W (Tc) | 150°C (TJ) | Through Hole |
|
2SK3747-1EMOSFET N-CH 1500V 2A TO3PF-3 |
3,088 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Ta) | 10V | 13Ohm @ 1A, 10V | - | 37.5 nC @ 10 V | ±35V | 380 pF @ 30 V | - | 3W (Ta), 50W (Tc) | 150°C (TJ) | Through Hole |
|
|
2SK3748-1EMOSFET N-CH 1500V 4A TO3PF-3 |
2,385 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 4A (Ta) | 10V | 7Ohm @ 2A, 10V | - | 80 nC @ 10 V | ±20V | 790 pF @ 30 V | - | 3W (Ta), 65W (Tc) | 150°C (TJ) | Through Hole |
|
2SK3816-DL-1EMOSFET N-CH 60V 40A TO263-2 |
2,039 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Ta) | 4V, 10V | 26mOhm @ 20A, 10V | - | 40 nC @ 10 V | ±20V | 1780 pF @ 20 V | - | 1.65W (Ta), 50W (Tc) | 150°C (TJ) | Surface Mount |
|
|
2SK3820-DL-1EMOSFET N-CH 100V 26A TO263-2 |
2,661 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 26A (Ta) | 4V, 10V | 60mOhm @ 13A, 10V | - | 44 nC @ 10 V | ±20V | 2150 pF @ 20 V | - | 1.65W (Ta), 50W (Tc) | 150°C (TJ) | Surface Mount |
|
|
2SK4065-DL-1EMOSFET N-CH 75V 100A TO263-2 |
2,149 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 100A (Ta) | 4V, 10V | 6mOhm @ 50A, 10V | - | 220 nC @ 10 V | ±20V | 12200 pF @ 20 V | - | 1.65W (Ta), 90W (Tc) | 150°C (TJ) | Surface Mount |
|
|
2SK4066-1EMOSFET N-CH 60V 100A TO262-3 |
14,483 | 1.81 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 4.7mOhm @ 50A, 10V | - | 220 nC @ 10 V | ±20V | 12500 pF @ 20 V | - | 1.65W (Ta), 90W (Tc) | 150°C (TJ) | Through Hole |
|
2SK4066-DL-1EMOSFET N-CH 60V 100A TO263-2 |
2,762 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 4.7mOhm @ 50A, 10V | - | 220 nC @ 10 V | ±20V | 12500 pF @ 20 V | - | 1.65W (Ta), 90W (Tc) | 150°C (TJ) | Surface Mount |
