| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

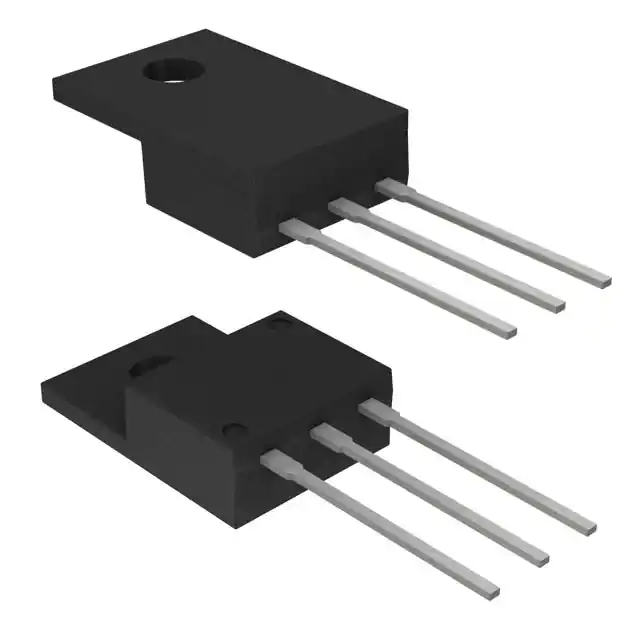

BMS3003MOSFET P-CH 60V 78A TO220ML |
2,440 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 78A (Ta) | 4V, 10V | 6.5mOhm @ 39A, 10V | 2.6V @ 1mA | 285 nC @ 10 V | ±20V | 13200 pF @ 20 V | - | 2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
BMS4003MOSFET N-CH 100V 18A TO220ML |
3,473 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Ta) | 10V | 65mOhm @ 9A, 10V | 5V @ 1mA | 11.4 nC @ 10 V | ±30V | 680 pF @ 20 V | - | 2W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
BXL4001MOSFET N-CH 75V 85A TO220 |
2,044 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 85A (Ta) | 10V | 12.4mOhm @ 43A, 10V | 4V @ 1mA | 115 nC @ 10 V | ±20V | 6700 pF @ 20 V | - | 1.75W (Ta), 75W (Tc) | 150°C (TJ) | Through Hole |
|
CPH6337-TL-EMOSFET P-CH 12V 3.5A 6CPH |
53,950 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 1.8V, 4.5V | 70mOhm @ 1.5A, 4.5V | 1.4V @ 1mA | 5.6 nC @ 4.5 V | ±10V | 405 pF @ 6 V | - | 1.6W (Ta) | 150°C (TJ) | Surface Mount |
|
ECH8419-TL-HMOSFET N-CH 35V 9A 8ECH |
92,980 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 35 V | 9A (Ta) | 4V, 10V | 17mOhm @ 5A, 10V | 2.6V @ 1mA | 19 nC @ 10 V | ±20V | 960 pF @ 20 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
ECH8656-TL-HMOSFET N-CH 20V 7.5A 8ECH |
3,801 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.5A (Ta) | 1.8V, 4.5V | 17mOhm @ 4A, 4.5V | 1.3V @ 1mA | 10.8 nC @ 4.5 V | ±10V | 1060 pF @ 10 V | - | 1.3W (Ta) | 150°C (TJ) | Surface Mount |
|
MCH3474-TL-EMOSFET N-CH 30V 4A SC70FL/MCPH3 |
2,872 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 1.8V, 4.5V | 50mOhm @ 2A, 4.5V | - | 4.7 nC @ 4.5 V | ±12V | 430 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH3478-TL-HMOSFET N-CH 30V 2A 3MCPH |
127,439 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 1.8V, 4.5V | 165mOhm @ 1A, 4.5V | - | 1.7 nC @ 4.5 V | ±12V | 130 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
MCH6320-TL-EMOSFET P-CH 12V 3.5A 6MCPH |
2,959 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 1.8V, 4.5V | 70mOhm @ 1.5A, 4.5V | 1.4V @ 1mA | 5.6 nC @ 4.5 V | ±10V | 405 pF @ 6 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
NTMFS5830NLT1GMOSFET N-CH 40V 28A/172A 5DFN |
2,177 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 28A (Ta), 172A (Tc) | 4.5V, 10V | 2.3mOhm @ 20A, 10V | 3V @ 250µA | 113 nC @ 10 V | ±20V | 5880 pF @ 25 V | - | 3.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVTFS4824NTWGMOSFET N-CH 30V 18.2A 8WDFN |
2,008 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.2A (Ta) | 4.5V, 10V | 4.7mOhm @ 23A, 10V | 2.5V @ 250µA | 14 nC @ 4.5 V | ±20V | 1740 pF @ 12 V | - | 3.2W (Ta), 21W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SCH1330-TL-HMOSFET P-CH 20V 1.5A 6SCH |
716,826 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 1.8V, 4.5V | 241mOhm @ 750mA, 4.5V | 1.4V @ 1mA | 1.7 nC @ 4.5 V | ±10V | 120 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
SCH1332-TL-HMOSFET P-CH 20V 2.5A 6SCH |
10,000 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 1.8V, 4.5V | 95mOhm @ 1.5A, 4.5V | 1.3V @ 1mA | 4.6 nC @ 4.5 V | ±10V | 375 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
SCH1334-TL-HMOSFET P-CH 12V 1.6A 6SCH |
45,000 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 1.6A (Ta) | 1.8V, 4.5V | 215mOhm @ 800mA, 4.5V | 1.3V @ 1mA | 1.6 nC @ 4.5 V | ±10V | 120 pF @ 6 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
SFT1446-HMOSFET N-CH 60V 20A TP |
3,509 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Ta) | 4V, 10V | 51mOhm @ 10A, 10V | 2.6V @ 1mA | 16 nC @ 10 V | ±20V | 750 pF @ 20 V | - | 1W (Ta), 23W (Tc) | 150°C (TJ) | Through Hole |
|
SFT1450-TL-HMOSFET N-CH 40V 21A TP-FA |
220,099 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 21A (Ta) | 10V | 28mOhm @ 10.5A, 10V | 2.6V @ 1mA | 14.4 nC @ 10 V | ±20V | 715 pF @ 20 V | - | 1W (Ta), 23W (Tc) | 150°C (TJ) | Surface Mount |
|
WPB4002MOSFET N-CH 600V 23A TO3PB |
700 | 7.72 |
RFQ |
Tray,Tray | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Ta) | 10V | 360mOhm @ 11.5A, 10V | - | 84 nC @ 10 V | ±30V | 2200 pF @ 30 V | - | 2.5W (Ta), 220W (Tc) | 150°C (TJ) | Through Hole | |
|
FCA20N60FSMOSFET N-CH 600V 20A TO3PN |
2,817 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCP20N60FSMOSFET N-CH 600V 20A TO220F |
2,856 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCP25N60N-F102MOSFET N-CH 600V 25A TO220-3 |
3,833 | 0.00 |
RFQ |
Datasheet |
Tube,Tube,Tube | SupreMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 125mOhm @ 12.5A, 10V | 4V @ 250µA | 74 nC @ 10 V | ±30V | 3352 pF @ 100 V | - | 216W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
