| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMFS4935NBT1GMOSFET N-CH 30V 13A/93A 5DFN |
28,500 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 93A (Tc) | 4.5V, 10V | 3.2mOhm @ 30A, 10V | 2V @ 250µA | 49.4 nC @ 10 V | ±20V | 4850 pF @ 15 V | - | 930mW (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4939NT3GMOSFET N-CH 30V 9.3A/53A 5DFN |
2,459 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.3A (Ta), 53A (Tc) | 4.5V, 10V | 5.5mOhm @ 30A, 10V | 2.2V @ 250µA | 28.5 nC @ 10 V | ±20V | 1954 pF @ 15 V | - | 920mW (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4945NT3GMOSFET N-CH 30V 7.4A/35A 5DFN |
10,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.4A (Ta), 35A (Tc) | 4.5V, 10V | 9mOhm @ 30A, 10V | 2.2V @ 250µA | 17.6 nC @ 10 V | ±20V | 1205 pF @ 15 V | - | 910mW (Ta), 19.8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4936NT3GMOSFET N-CH 30V 11.6A/79A 5DFN |
3,383 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.6A (Ta), 79A (Tc) | 4.5V, 10V | 3.8mOhm @ 30A, 10V | 2.2V @ 250µA | 43 nC @ 10 V | ±20V | 3044 pF @ 15 V | - | 920mW (Ta), 43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4935NBT3GMOSFET N-CH 30V 13A/93A 5DFN |
3,540 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 93A (Tc) | 4.5V, 10V | 3.2mOhm @ 30A, 10V | 2V @ 250µA | 49.4 nC @ 10 V | ±20V | 4850 pF @ 15 V | - | 930mW (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4943NT3GMOSFET N-CH 30V 8.3A/41A 5DFN |
3,551 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.3A (Ta), 41A (Tc) | 4.5V, 10V | 7.2mOhm @ 30A, 10V | 2.2V @ 250µA | 20.9 nC @ 10 V | ±20V | 1401 pF @ 15 V | - | 910mW (Ta), 22.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4941NT3GMOSFET N-CH 30V 9A/47A 5DFN |
3,133 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta), 47A (Tc) | 4.5V, 10V | 6.2mOhm @ 30A, 10V | 2.2V @ 250µA | 25.5 nC @ 10 V | ±20V | 1650 pF @ 15 V | - | 910mW (Ta), 25.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTR4170NT3GMOSFET N-CH 30V 3.2A SOT23-3 |
3,012 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.4A (Ta) | 2.5V, 10V | 55mOhm @ 3.2A, 10V | 1.4V @ 250µA | 4.76 nC @ 4.5 V | ±12V | 432 pF @ 15 V | - | 480mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTR4171PT3GMOSFET P-CH 30V 2.2A SOT23-3 |
3,660 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.2A (Ta) | 2.5V, 10V | 75mOhm @ 2.2A, 10V | 1.4V @ 250µA | 15.6 nC @ 10 V | ±12V | 720 pF @ 15 V | - | 480mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4937NT3GMOSFET N-CH 30V 10.2A/70A 5DFN |
3,265 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.2A (Ta), 70A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 2516 pF @ 15 V | - | 920mW (Ta), 43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTLUS4195PZTAGMOSFET P-CH 30V 2A 6UDFN |
45,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4.5V, 10V | 90mOhm @ 3A, 10V | 3V @ 250µA | 5 nC @ 4.5 V | ±20V | 250 pF @ 15 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTLUF4189NZTBGMOSFET N-CH 30V 1.2A 6UDFN |
353,750 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.2A (Ta) | 2.5V, 4.5V | 200mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 3 nC @ 4.5 V | ±8V | 95 pF @ 15 V | Schottky Diode (Isolated) | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS3192PZTAGMOSFET P-CH 20V 2.2A 6UDFN |
54,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 1.5V, 4.5V | 85mOhm @ 3A, 4.5V | 1V @ 250µA | 8.5 nC @ 4.5 V | ±8V | 450 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

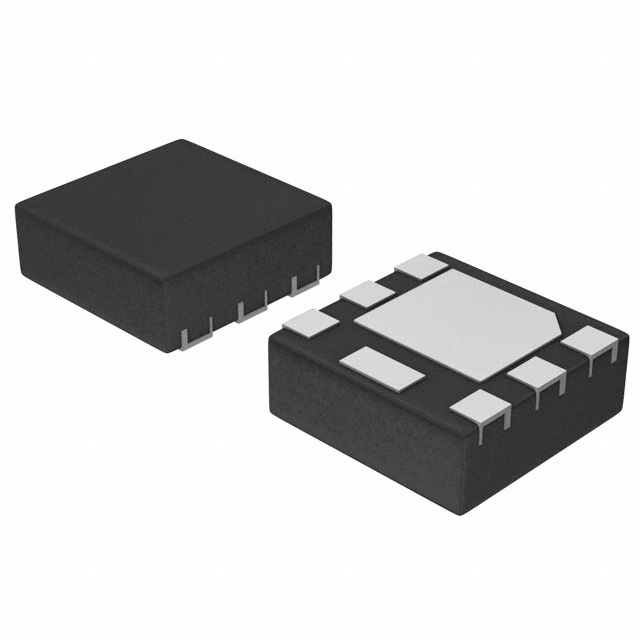

NTLJS4149PTBGMOSFET P-CH 30V 2.7A 6WDFN |
308,000 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Ta) | 2.5V, 4.5V | 62mOhm @ 4.5A, 4.5V | 1V @ 250µA | 15 nC @ 4.5 V | ±12V | 960 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS3192PZTBGMOSFET P-CH 20V 2.2A 6UDFN |
35,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 1.5V, 4.5V | 86mOhm @ 3A, 4.5V | 1V @ 250µA | 8.5 nC @ 4.5 V | ±8V | 450 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS4195PZTBGMOSFET P-CH 30V 2A 6UDFN |
21,000 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4.5V, 10V | 90mOhm @ 3A, 10V | 3V @ 250µA | 5 nC @ 4.5 V | ±20V | 250 pF @ 15 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

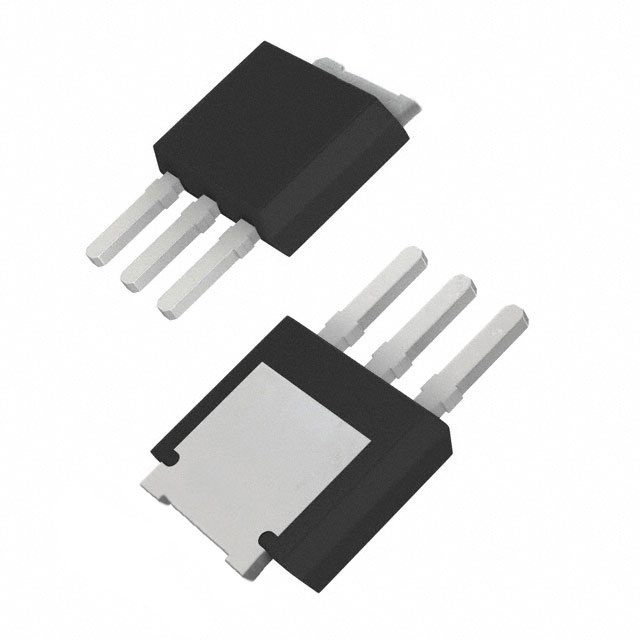

NTD4863NA-35GMOSFET N-CH 25V 9.2A/49A IPAK |
3,345 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 9.2A (Ta), 49A (Tc) | - | 9.3mOhm @ 30A, 10V | 2.5V @ 250µA | 17.8 nC @ 10 V | - | 990 pF @ 12 V | - | 1.27W (Ta), 36.6W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
NTD4906N-35GMOSFET N-CH 30V 10.3A/54A IPAK |
676,661 | 0.20 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.3A (Ta), 54A (Tc) | 4.5V, 10V | 5.5mOhm @ 30A, 10V | 2.2V @ 250µA | 24 nC @ 10 V | ±20V | 1932 pF @ 15 V | - | 1.38W (Ta), 37.5W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NTD4906N-1GMOSFET N-CH 30V 10.3A/54A IPAK |
17,450 | 0.20 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.3A (Ta), 54A (Tc) | 4.5V, 10V | 5.5mOhm @ 30A, 10V | 2.2V @ 250µA | 24 nC @ 10 V | ±20V | 1932 pF @ 15 V | - | 1.38W (Ta), 37.5W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
NTD4909NA-35GMOSFET N-CH 30V 8.8A/41A IPAK |
23,773 | 0.25 |
RFQ |
Bulk,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.8A (Ta), 41A (Tc) | - | 8mOhm @ 30A, 10V | 2.2V @ 250µA | 17.5 nC @ 10 V | - | 1314 pF @ 15 V | - | - | - | Through Hole |
