| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDU8580MOSFET N-CH 20V 35A I-PAK |
2,527 | 0.00 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 4.5V, 10V | 9mOhm @ 35A, 10V | 2.5V @ 250µA | 27 nC @ 10 V | ±20V | 1445 pF @ 10 V | - | 49.5W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FDU8586MOSFET N-CH 20V 35A I-PAK |
2,754 | 0.00 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 4.5V, 10V | 5.5mOhm @ 35A, 10V | 2.5V @ 250µA | 48 nC @ 10 V | ±20V | 2480 pF @ 10 V | - | 77W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FCD4N60TFMOSFET N-CH 600V 3.9A DPAK |
2,187 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.9A (Tc) | 10V | 1.2Ohm @ 2A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 540 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD8580MOSFET N-CH 20V 35A DPAK |
2,672 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 4.5V, 10V | 9mOhm @ 35A, 10V | 2.5V @ 250µA | 27 nC @ 10 V | ±20V | 1445 pF @ 10 V | - | 49.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD8586MOSFET N-CH 20V 35A TO252AA |
2,801 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 4.5V, 10V | 5.5mOhm @ 35A, 10V | 2.5V @ 250µA | 48 nC @ 10 V | ±20V | 2480 pF @ 10 V | - | 77W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDFS6N754MOSFET N-CH 30V 4A 8SOIC |
3,990 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4.5V, 10V | 56mOhm @ 4A, 10V | 2.5V @ 250µA | 6 nC @ 10 V | ±20V | 299 pF @ 15 V | Schottky Diode (Isolated) | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMS8660SMOSFET N-CH 30V 25A/40A 8PQFN |
3,547 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta), 40A (Tc) | 4.5V, 10V | 2.4mOhm @ 25A, 10V | 2V @ 250µA | 113 nC @ 10 V | ±20V | 4345 pF @ 15 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCH47N60FMOSFET N-CH 600V 47A TO247-3 |
2,525 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 73mOhm @ 23.5A, 10V | 5V @ 250µA | 270 nC @ 10 V | ±30V | 8000 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDP8860MOSFET N-CH 30V 80A TO220-3 |
2,229 | 0.00 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 2.5mOhm @ 80A, 10V | 2.5V @ 250µA | 222 nC @ 10 V | ±20V | 12240 pF @ 15 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FQU3N60CTUMOSFET N-CH 600V 2.4A IPAK |
3,571 | 0.00 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.4A (Tc) | 10V | 3.4Ohm @ 1.2A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 565 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDD6670ASMOSFET N-CH 30V 76A TO252 |
3,166 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 76A (Ta) | 4.5V, 10V | 8mOhm @ 13.8A, 10V | 3V @ 1mA | 40 nC @ 10 V | ±20V | 1580 pF @ 15 V | - | 70W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDA75N28MOSFET N-CH 280V 75A TO3PN |
2,444 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 280 V | 75A (Tc) | 10V | 41mOhm @ 37.5A, 10V | 5V @ 250µA | 144 nC @ 10 V | ±30V | 6700 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

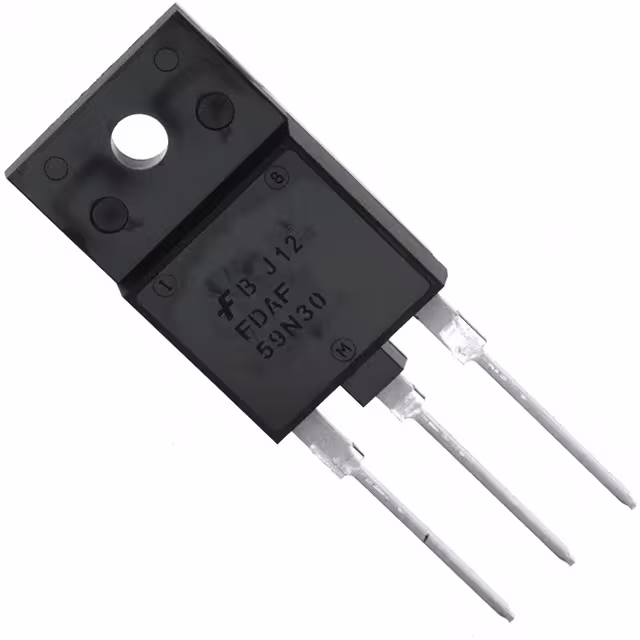

FDAF59N30MOSFET N-CH 300V 34A TO3PF |
2,293 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 34A (Tc) | 10V | 56mOhm @ 17A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 4670 pF @ 25 V | - | 161W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

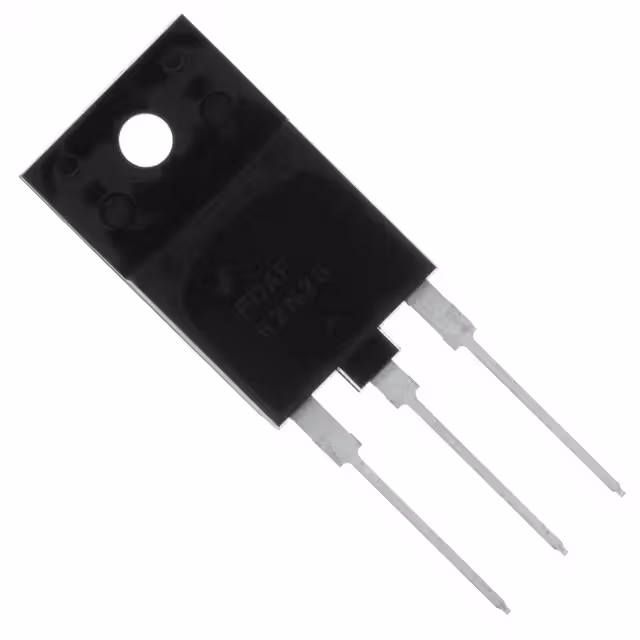

FDAF62N28MOSFET N-CH 280V 36A TO3PF |
2,134 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 280 V | 36A (Tc) | 10V | 51mOhm @ 18A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 4630 pF @ 25 V | - | 165W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDAF75N28MOSFET N-CH 280V 46A TO3PF |
3,788 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 280 V | 46A (Tc) | 10V | 41mOhm @ 23A, 10V | 5V @ 250µA | 144 nC @ 10 V | ±30V | 6700 pF @ 25 V | - | 215W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
,TO-226_straightlead.jpg)
|
FQN1N50CBUMOSFET N-CH 500V 380MA TO92-3 |
2,539 | 0.00 |
RFQ |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 380mA (Tc) | 10V | 6Ohm @ 190mA, 10V | 4V @ 250µA | 6.4 nC @ 10 V | ±30V | 195 pF @ 25 V | - | 890mW (Ta), 2.08W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
FDD6N50TFMOSFET N-CH 500V 6A DPAK |
3,333 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 6A (Tc) | 10V | 900mOhm @ 3A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 940 pF @ 25 V | - | 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS2P753ZMOSFET P-CH 30V 3A 8SOIC |
3,047 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 3A (Ta) | 4.5V, 10V | 115mOhm @ 3A, 10V | 3V @ 250µA | 9.3 nC @ 10 V | ±25V | 455 pF @ 10 V | Schottky Diode (Isolated) | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQB25N33TMMOSFET N-CH 330V 25A D2PAK |
3,238 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 330 V | 25A (Tc) | 10V | 230mOhm @ 12.5A, 10V | 5V @ 250µA | 75 nC @ 15 V | ±30V | 2010 pF @ 25 V | - | 3.1W (Ta), 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQB7N65CTMMOSFET N-CH 650V 7A D2PAK |
3,046 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 1.4Ohm @ 3.5A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±30V | 1245 pF @ 25 V | - | 173W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
