| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMS4503NR2MOSFET N-CH 28V 9A 8SOIC |
3,520 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 28 V | 9A (Ta) | 4.5V, 10V | 8mOhm @ 14A, 10V | 2V @ 250µA | 23 nC @ 4.5 V | ±20V | 2400 pF @ 16 V | - | 930mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMS4700NR2MOSFET N-CH 30V 8.6A 8SOIC |
35,000 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.6A (Ta) | 4.5V, 10V | 7.2mOhm @ 13A, 10V | 3V @ 250µA | 24 nC @ 4.5 V | ±20V | 1600 pF @ 24 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDN336P-NLMOSFET P-CH 20V 1.3A SUPERSOT3 |
3,218 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.3A (Ta) | 2.5V, 4.5V | 200mOhm @ 1.3A, 4.5V | 1.5V @ 250µA | 5 nC @ 4.5 V | ±8V | 330 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NDS8426AMOSFET N-CH 20V 10.5A 8SOIC |
2,403 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Ta) | 2.7V, 4.5V | 13.5mOhm @ 10.5A, 4.5V | 1V @ 250µA | 60 nC @ 4.5 V | ±8V | 2150 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NIF9N05CLT1MOSFET N-CH 52V 2.6A SOT223 |
2,204 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 52 V | 2.6A (Ta) | 3V, 10V | 125mOhm @ 2.6A, 10V | 2.5V @ 100µA | 7 nC @ 4.5 V | ±15V | 250 pF @ 35 V | - | 1.69W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NDS0610_NLMOSFET P-CH 60V 120MA SOT23-3 |
2,619 | 0.00 |
RFQ |
Datasheet |
- | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 120mA (Ta) | 4.5V, 10V | 10Ohm @ 500mA, 10V | 3.5V @ 1mA | 2.5 nC @ 10 V | ±20V | 79 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCH20N60MOSFET N-CH 600V 20A TO247-3 |
3,677 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDC3616NMOSFET N-CH 100V 3.7A SUPERSOT6 |
2,743 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.7A (Ta) | 6V, 10V | 70mOhm @ 3.7A, 10V | 4V @ 250µA | 32 nC @ 10 V | ±20V | 1215 pF @ 50 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDC6392SMOSFET P-CH 20V 2.2A SUPERSOT6 |
2,687 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.2A (Ta) | 2.5V, 4.5V | 150mOhm @ 2.2A, 4.5V | 1.5V @ 250µA | 5.2 nC @ 4.5 V | ±12V | 369 pF @ 10 V | Schottky Diode (Isolated) | 960mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDC697P_F077MOSFET P-CH 20V 8A SUPERSOT6 |
3,206 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Ta) | 1.8V, 4.5V | 20mOhm @ 8A, 4.5V | 1.5V @ 250µA | 55 nC @ 4.5 V | ±8V | 3524 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDC699PMOSFET P-CH 20V 7A SUPERSOT6 |
3,968 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 7A (Ta) | 2.5V, 4.5V | 22mOhm @ 7A, 4.5V | 1.5V @ 250µA | 38 nC @ 5 V | ±12V | 2640 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDC796NMOSFET N-CH 30V 12.5A SUPERSOT6 |
2,220 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta) | 4.5V, 10V | 9mOhm @ 12.5A, 10V | 3V @ 250µA | 20 nC @ 5 V | ±20V | 1444 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS2P102AMOSFET P-CH 20V 3.3A 8SOIC |
3,199 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 4.5V, 10V | 125mOhm @ 3.3A, 10V | 3V @ 250µA | 3 nC @ 5 V | ±20V | 182 pF @ 10 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS2P102MOSFET P-CH 20V 3.3A 8SOIC |
3,332 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 4.5V, 10V | 125mOhm @ 3.3A, 10V | 2V @ 250µA | 10 nC @ 10 V | ±20V | 270 pF @ 10 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS2P103AMOSFET P-CH 30V 5.3A 8SOIC |
3,066 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.3A (Ta) | 4.5V, 10V | 59mOhm @ 5.3A, 10V | 3V @ 250µA | 8 nC @ 5 V | ±25V | 535 pF @ 15 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS2P103MOSFET P-CH 30V 5.3A 8SOIC |
3,334 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.3A (Ta) | 4.5V, 10V | 59mOhm @ 5.3A, 10V | 3V @ 250µA | 8 nC @ 5 V | ±25V | 528 pF @ 15 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS6N303MOSFET N-CH 30V 6A 8SOIC |
3,471 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 35mOhm @ 6A, 10V | 3V @ 250µA | 17 nC @ 10 V | ±20V | 350 pF @ 15 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

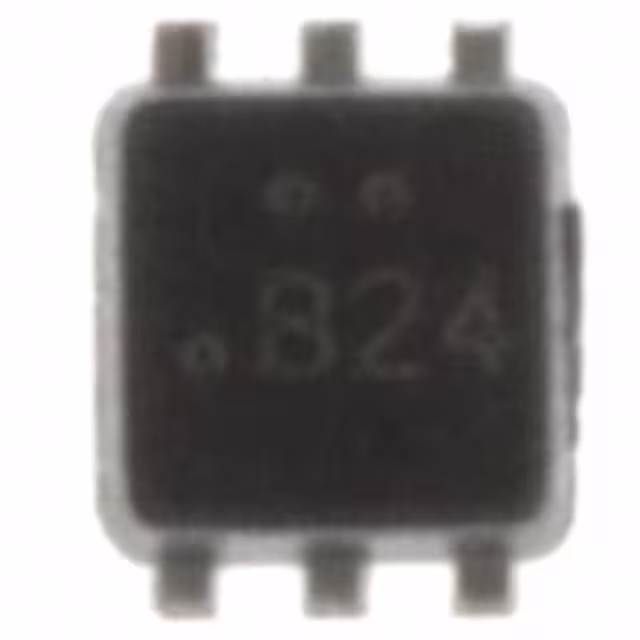

FDJ128NMOSFET N-CH 20V 5.5A SC75-6 FLMP |
3,355 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.5A (Ta) | 2.5V, 4.5V | 35mOhm @ 5.5A, 4.5V | 1.5V @ 250µA | 8 nC @ 5 V | ±12V | 543 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDJ129PMOSFET P-CH 20V 4.2A SC75-6 FLMP |
2,361 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 2.5V, 4.5V | 70mOhm @ 4.2A, 4.5V | 1.5V @ 250µA | 6 nC @ 4.5 V | ±12V | 780 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS2070N3MOSFET N-CH 150V 4.1A 8SO |
3,741 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 4.1A (Ta) | 6V, 10V | 78mOhm @ 4.1A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 1884 pF @ 75 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
