| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFS5C466NLWFT1GMOSFET N-CH 40V 16A/52A 5DFN |
2,675 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16A (Ta), 52A (Tc) | 4.5V, 10V | 7.3mOhm @ 10A, 10V | 2.2V @ 30µA | 16 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 3.5W (Ta), 37W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVD5C464NLT4GT6 40V DPAK EXPANSION AND |
2,511 | 0.79 |
RFQ |
Tape & Reel (TR),Tape & Reel (TR) | Automotive, AEC-Q101 | Active | - | - | - | 18A (Ta), 64A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|
|
NVMYS020N08LHTWGT8 80V LL LFPAK |
2,529 | 0.79 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.7A (Ta), 30A (Tc) | 4.5V, 10V | 19.5mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 623 pF @ 40 V | - | 3.5W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVTFWS010N10MCLTAGMOSFET N-CH 100V 11.7A 8WDFN |
3,114 | 0.79 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11.7A (Ta), 57.8A (Tc) | 4.5V, 10V | 10.6mOhm @ 15A, 10V | 3V @ 85µA | 30 nC @ 10 V | ±20V | 2150 pF @ 50 V | - | 3.2W (Ta), 77.8W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
NVTFS4C06NWFTWGMOSFET N-CH 30V 21A 8WDFN |
2,895 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 4.2mOhm @ 30A, 10V | 2.2V @ 250µA | 26 nC @ 10 V | ±20V | 1683 pF @ 15 V | - | 3.1W (Ta), 37W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS016N06CT1GMOSFET N-CH 60V 10A/33A 5DFN |
2,264 | 0.80 |
RFQ |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 33A (Tc) | 10V | 15.6mOhm @ 5A, 10V | 4V @ 25µA | 6.9 nC @ 10 V | ±20V | 489 pF @ 30 V | - | 3.4W (Ta), 36W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
FQD12N20LTM-F085PMOSFET N-CH 200V 9A TO252 |
2,686 | 0.80 |
RFQ |
Tape & Reel (TR) | QFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 200 V | 9A (Tc) | 5V, 10V | 280mOhm @ 4.5A, 10V | 2V @ 250µA | 21 nC @ 5 V | ±20V | 1080 pF @ 25 V | - | 2.5W (Ta), 55W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
NVTFS5C658NLTAGMOSFET N-CH 60V 109A 8WDFN |
3,163 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 109A (Tc) | 4.5V, 10V | 5mOhm @ 50A, 10V | 2.2V @ 250µA | 12 nC @ 4.5 V | ±20V | 1935 pF @ 25 V | - | 114W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS5C670NLWFAFT3GMOSFET N-CH 60V 17A/71A 5DFN |
2,795 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 17A (Ta), 71A (Tc) | 4.5V, 10V | 6.1mOhm @ 35A, 10V | 2V @ 53µA | 20 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 61W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

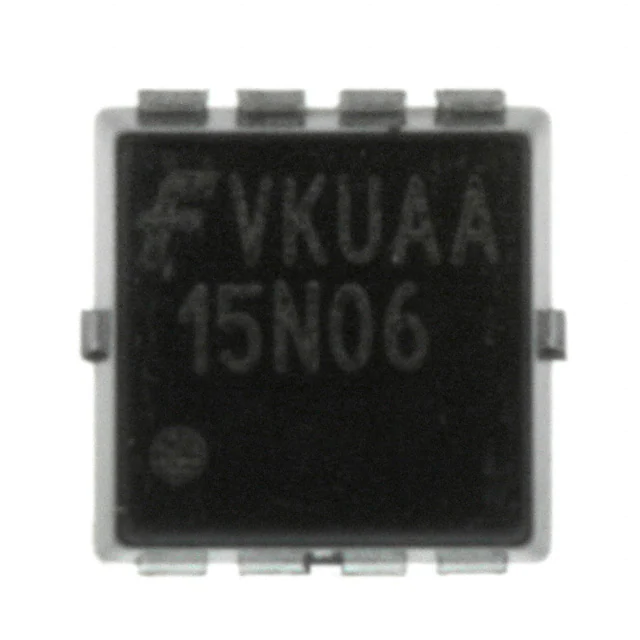

FDMC15N06MOSFET N-CH 55V 2.4A/15A 8MLP |
1,000 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.4A (Ta), 15A (Tc) | 10V | 900mOhm @ 15A, 10V | 4V @ 250µA | 11.5 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.3W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCU2250N80ZMOSFET N-CH 800V 2.6A IPAK |
3,811 | 0.82 |
RFQ |
Datasheet |
Tube | SuperFET® II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 800 V | 2.6A (Tc) | 10V | 2.25Ohm @ 1.3A, 10V | 4.5V @ 260µA | 14 nC @ 10 V | ±20V | 585 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVMFS5C442NLAFT3GMOSFET N-CH 40V 29A/130A 5DFN |
3,482 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 29A (Ta), 130A (Tc) | 4.5V, 10V | 2.5mOhm @ 50A, 10V | 2V @ 250µA | 50 nC @ 10 V | ±20V | 3100 pF @ 25 V | - | 3.7W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FCPF600N60ZL1-F154MOSFET N-CH 600V 7.4A TO220F |
3,262 | 0.82 |
RFQ |
Tube | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.4A (Tj) | - | 600mOhm @ 3.7A, 10V | 3.5V @ 250µA | 26 nC @ 10 V | ±20V | 1120 pF @ 25 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
NVMFS5C423NLAFT3GMOSFET N-CH 40V 31A/150A 5DFN |
2,193 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 31A (Ta), 150A (Tc) | 4.5V, 10V | 2mOhm @ 50A, 10V | 2V @ 250µA | 50 nC @ 10 V | ±20V | 3100 pF @ 20 V | - | 3.7W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVD5C460NLT4GMOSFET N-CH 40V 18A/73A DPAK |
3,776 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 73A (Tc) | 4.5V, 10V | 4.6mOhm @ 25A, 10V | 2.2V @ 60µA | 36 nC @ 10 V | ±20V | 2100 pF @ 25 V | - | 3W (Ta), 47W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTD4860NT4GMOSFET N-CH 25V 10.4A/65A DPAK |
2,978 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 10.4A (Ta), 65A (Tc) | 4.5V, 10V | 7.5mOhm @ 30A, 10V | 2.5V @ 250µA | 16.5 nC @ 4.5 V | ±20V | 1308 pF @ 12 V | - | 1.28W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS4841NHT1GMOSFET N-CH 30V 8.6A/59A 5DFN |
2,953 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.6A (Ta), 59A (Tc) | 4.5V, 10V | 7mOhm @ 30A, 10V | 2.5V @ 250µA | 33 nC @ 11.5 V | ±20V | 2113 pF @ 12 V | - | 870mW (Ta), 41.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVMFS5C456NLWFAFT3GMOSFET N-CH 40V 22A/87A 5DFN |
3,722 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 22A (Ta), 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 50µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 3.6W (Ta), 55W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVTYS010N06CLTWGT6 60V N-CH LL IN LFPAK33 |
2,548 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 13A (Ta), 51A (Tc) | 4.5V, 10V | 9.8mOhm @ 25A, 10V | 2V @ 35µA | 13 nC @ 10 V | ±20V | 910 pF @ 25 V | - | 3.1W (Ta), 47W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMYS013N08LHTWGT8 80V LL LFPAK |
2,826 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 11A (Ta), 42A (Tc) | 4.5V, 10V | 13.1mOhm @ 10A, 10V | 2V @ 45µA | 17 nC @ 10 V | ±20V | 906 pF @ 40 V | - | 3.6W (Ta), 54W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
