| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFS6H858NLT1GMOSFET N-CH 80V 8.7A/30A 5DFN |
2,889 | 0.35 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.7A (Ta), 30A (Tc) | 4.5V, 10V | 19.5mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 623 pF @ 40 V | - | 3.5W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
FDMA410NZT-F130PT4 NCH 20/8V ZENER IN |
2,037 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 9.5A (Ta) | 1.5V, 4.5V | 23mOhm @ 9.5A, 4.5V | 1V @ 250µA | 14 nC @ 4.5 V | ±8V | 1310 pF @ 10 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTFS015P03P8ZTAGPT8P PORTFOLIO EXPANSION |
2,208 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 17A (Ta), 88.6A (Tc) | 4.5V, 10V | 7.5mOhm @ 12A, 10V | 3V @ 250µA | 105 nC @ 10 V | ±25V | 2706 pF @ 15 V | - | 3.2W (Ta), 88.2W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTNS3A92PZT5GMOSFET P-CH 20V SPCL XLLGA3 |
816,000 | 0.34 |
RFQ |
Tape & Reel (TR),Tape & Reel (TR),Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SVD5865NLT4GMOSFET N-CH 60V 10A/46A DPAK |
3,701 | 1.00 |
RFQ |
Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 46A (Tc) | 4.5V, 10V | 16mOhm @ 19A, 10V | 2V @ 250µA | 29 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.1W (Ta), 71W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
SSU1N50BTUMOSFET N-CH 520V 1.3A IPAK |
3,025 | 0.37 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 520 V | 1.3A (Tc) | 10V | 5.3Ohm @ 650mA, 10V | 4V @ 250µA | 11 nC @ 10 V | ±30V | 340 pF @ 25 V | - | 2.5W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVTFWS070N10MCLTAGPTNG 100V LL U8FL |
3,081 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.5A (Ta), 13A (Tc) | 4.5V, 10V | 65mOhm @ 3A, 10V | 3V @ 15µA | 5.5 nC @ 10 V | ±20V | 305 pF @ 50 V | - | 2.9W (Ta), 25W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS4937NT1GMOSFET N-CH 30V 10.2A/70A 5DFN |
98,488 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.2A (Ta), 70A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 2516 pF @ 15 V | - | 920mW (Ta), 43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTTFS080N10GTAG100V MVSOA IN U8FL PACKAGE |
2,579 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.1A (Ta), 16A (Tc) | 10V | 72mOhm @ 4A, 10V | 4V @ 22µA | 8.6 nC @ 10 V | ±20V | 560.5 pF @ 50 V | - | 2.5W (Ta), 39W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVTYS029N08HTWGT8 80V N-CH SG IN LFPAK33 |
2,342 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 6.4A (Ta), 21A (Tc) | 10V | 32.4mOhm @ 5A, 10V | 4V @ 20µA | 6.3 nC @ 10 V | ±20V | 369 pF @ 40 V | - | 3.1W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTYS029N08HLTWGT8 80V N-CH LL IN LFPAK33 PACKAG |
2,666 | 0.38 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 6.6A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 5A, 10V | 2V @ 20µA | 9 nC @ 10 V | ±20V | 431 pF @ 40 V | - | 3.1W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |

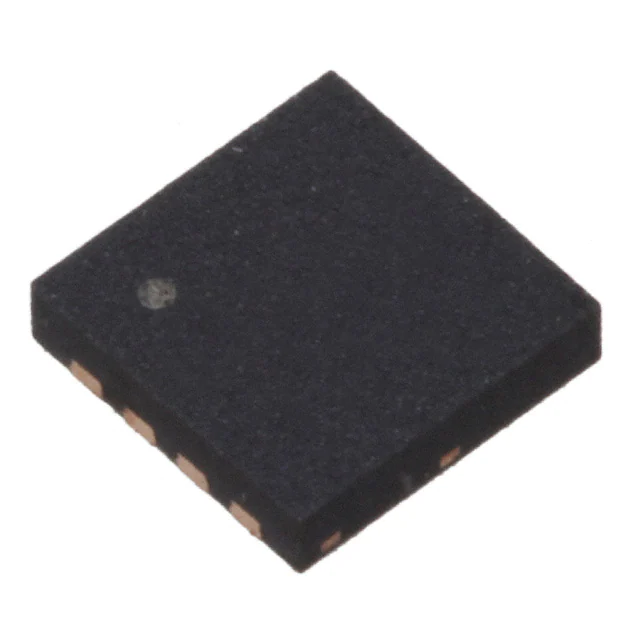

.JPG)
|
FDMC5614PMOSFET P-CH 60V 5.7A/13.5A 8MLP |
3,549 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 5.7A (Ta), 13.5A (Tc) | 4.5V, 10V | 100mOhm @ 5.7A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 1055 pF @ 30 V | - | 2.1W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTFWS015P03P8ZTAGPT8P PORTFOLIO EXPANSION |
2,912 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 17A (Ta), 88.6A (Tc) | 4.5V, 10V | 7.5mOhm @ 12A, 10V | 3V @ 250µA | 105 nC @ 10 V | ±25V | 2706 pF @ 15 V | - | 3.2W (Ta), 88.2W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTTFS4985NFTAGMOSFET N-CH 30V 16.3A/64A 8WDFN |
264,267 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16.3A (Ta), 64A (Tc) | 4.5V, 10V | 3.5mOhm @ 20A, 10V | 2.3V @ 250µA | 29.4 nC @ 10 V | ±20V | 2075 pF @ 15 V | - | 1.47W (Ta), 22.73W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTFS6H860NWFTAGMOSFET N-CH 80V 8A/30A 8WDFN |
3,317 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8A (Ta), 30A (Tc) | 10V | 21.1mOhm @ 5A, 10V | 4V @ 30µA | 8.7 nC @ 10 V | ±20V | 510 pF @ 40 V | - | 3.1W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTYS025P04M8LTWGMV8 40V P-CH LL IN LFPAK |
3,122 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 9.4A (Ta), 32A (Tc) | 4.5V, 10V | 25mOhm @ 25A, 10V | 3V @ 255µA | 16 nC @ 10 V | ±20V | 1080 pF @ 25 V | - | 3.8W (Ta), 44.1W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVD3055-094T4G-VF01MOSFET N-CH 60V 12A DPAK |
2,218 | 0.40 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta) | 10V | 94mOhm @ 6A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 450 pF @ 25 V | - | 1.5W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
FDS5690MOSFET N-CH 60V 7A 8SOIC |
3,799 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7A (Ta) | 6V, 10V | 28mOhm @ 7A, 10V | 4V @ 250µA | 32 nC @ 10 V | ±20V | 1107 pF @ 30 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVMFS021N10MCLT1GPTNG 100V LL SO8FL |
3,246 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 8.4A (Ta), 31A (Tc) | 4.5V, 10V | 23mOhm @ 7A, 10V | 3V @ 42µA | 13 nC @ 10 V | ±20V | 850 pF @ 50 V | - | 3.6W (Ta), 49W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTLJS4D9N03HTAGMOSFET N-CH 30V 9.5A 6PQFN |
2,522 | 0.40 |
RFQ |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V | 6.1mOhm @ 10A, 4.5V | 2.1V @ 250µA | 6.8 nC @ 4.5 V | ±12V | 1020 pF @ 15 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
