| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP14NF10MOSFET N-CH 100V 15A TO220AB |
3,245 | 1.67 |
RFQ |
Datasheet |
Tube | STripFET™ II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 10V | 130mOhm @ 7A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 460 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STF3LN80K5MOSFET N-CH 800V 2A TO220FP |
910 | 1.68 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 2A (Tc) | 10V | 3.25Ohm @ 1A, 10V | 5V @ 100µA | 2.63 nC @ 10 V | ±30V | 102 pF @ 100 V | - | 20W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP100N8F6MOSFET N-CH 80V 100A TO220 |
38,227 | 1.69 |
RFQ |
Datasheet |
Tube | STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 10V | 9mOhm @ 50A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 5955 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STL7LN65K5AGMOSFET N-CH 650V 5A PWRFLAT VHV |
3,902 | 3.14 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5A (Tc) | 10V | 1.5Ohm @ 2.5A, 10V | 5V @ 100µA | 11.7 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 79W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
STFU10NK60ZMOSFET N-CH 600V 10A TO220FP |
465 | 1.74 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 4.5A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 1370 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP17NF25MOSFET N-CH 250V 17A TO220AB |
2,379 | 1.75 |
RFQ |
Datasheet |
Tube | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 17A (Tc) | 10V | 165mOhm @ 8.5A, 10V | 4V @ 250µA | 29.5 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP30N10F7MOSFET N-CH 100V 32A TO220AB |
307 | 1.77 |
RFQ |
Datasheet |
Tube | STripFET™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 32A (Tc) | 10V | 24mOhm @ 16A, 10V | 4.5V @ 250µA | 19 nC @ 10 V | ±20V | 1270 pF @ 50 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STB8NM60DMOSFET N-CH 600V 8A D2PAK |
2,945 | 2.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Tc) | 10V | 1Ohm @ 2.5A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 380 pF @ 25 V | - | 100W (Tc) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
STB7NK80ZT4MOSFET N-CH 800V 5.2A D2PAK |
2,681 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.2A (Tc) | 10V | 1.8Ohm @ 2.6A, 10V | 4.5V @ 100µA | 56 nC @ 10 V | ±30V | 1138 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STF10N65K3MOSFET N-CH 650V 10A TO220FP |
1,739 | 1.89 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 1Ohm @ 3.6A, 10V | 4.5V @ 100µA | 42 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
;;2.jpg)
|
STD120N4F6MOSFET N-CH 40V 80A DPAK |
2,191 | 2.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 4mOhm @ 40A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±20V | 3850 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STP90NF03LMOSFET N-CH 30V 90A TO220AB |
167 | 1.93 |
RFQ |
Datasheet |
Tube | STripFET™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 5V, 10V | 6.5mOhm @ 45A, 10V | 2.5V @ 250µA | 47 nC @ 5 V | ±20V | 2700 pF @ 25 V | - | 150W (Tc) | -65°C ~ 175°C (TJ) | Through Hole |
|
|
STP7NK40ZMOSFET N-CH 400V 5.4A TO220AB |
10,791 | 1.98 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 5.4A (Tc) | 10V | 1Ohm @ 2.7A, 10V | 4.5V @ 50µA | 26 nC @ 10 V | ±30V | 535 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP4NK60ZFPMOSFET N-CH 600V 4A TO220FP |
2,792 | 1.99 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2Ohm @ 2A, 10V | 4.5V @ 50µA | 26 nC @ 10 V | ±30V | 510 pF @ 25 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|
STL24N60DM2MOSFET N-CH 600V 15A PWRFLAT HV |
3,677 | 3.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 220mOhm @ 9A, 10V | 5V @ 250µA | 29 nC @ 10 V | ±25V | 1055 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STB18N65M5MOSFET N-CH 650V 15A D2PAK |
3,622 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 220mOhm @ 7.5A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1240 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STP60NF06LMOSFET N-CH 60V 60A TO220AB |
3,655 | 2.25 |
RFQ |
Datasheet |
Tube | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V, 5V | 14mOhm @ 30A, 10V | 1V @ 250µA | 66 nC @ 4.5 V | ±15V | 2000 pF @ 25 V | - | 110W (Tc) | -65°C ~ 175°C (TJ) | Through Hole |
|
|
STB30NF20LMOSFET N CH 200V 30A D2PAK |
3,074 | 3.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 30A (Tc) | 10V | 75mOhm @ 15A, 5V | 3V @ 250µA | 65 nC @ 10 V | ±20V | 1990 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

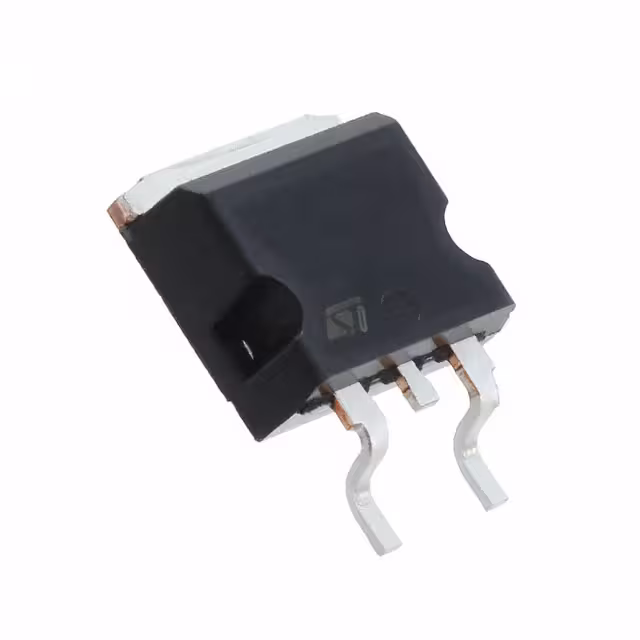

STB8N90K5MOSFET N-CH 900V 8A D2PAK |
3,153 | 3.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 8A (Tc) | 10V | 800mOhm @ 1.17A, 10V | 5V @ 100µA | - | ±30V | - | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STP75NS04ZMOSFET N-CH 33V 80A TO220AB |
2,569 | 2.34 |
RFQ |
Datasheet |
Tube | MESH OVERLAY™ III | Active | N-Channel | MOSFET (Metal Oxide) | 33 V | 80A (Tc) | 10V | 11mOhm @ 40A, 10V | 4V @ 250µA | 50 nC @ 10 V | - | 1860 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
