| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP5NK65ZMOSFET N-CH 650V 5A TO220 |
2,750 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5A (Tc) | 10V | 1.8Ohm @ 2.1A, 10V | 4.5V @ 50µA | 35 nC @ 10 V | ±30V | 680 pF @ 25 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB16NF25MOSFET N-CH 30V 14.5A D2PAK |
2,337 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14.5A (Tc) | - | 4mOhm @ 30A, 10V | 2.5V @ 250µA | 40 nC @ 4.5 V | - | 4490 pF @ 12 V | - | - | - | Surface Mount | |
|
STD150N2LH5MOSFET N-CH DPAK |
3,437 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
STF11N52K3MOSFET N-CH 525V 10A TO220FP |
3,814 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 10A (Tc) | 10V | 510mOhm @ 5A, 10V | 4.5V @ 50µA | 51 nC @ 10 V | ±30V | 1400 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF20NM65NMOSFET N-CH 650V 15A TO220FP |
2,066 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 270mOhm @ 7.5A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±25V | 1280 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP15NM65NMOSFET N-CH 650V 12A TO220 |
2,890 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 33.3 nC @ 10 V | ±25V | 983 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP20NM65NMOSFET N-CH 650V 15A TO220 |
2,252 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 270mOhm @ 7.5A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±25V | 1280 pF @ 50 V | - | 125W (Tc) | 150°C (TJ) | Through Hole |
|
STH180N10F3-6MOSFET N-CH 100V 180A H2PAK-6 |
2,590 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 4.5mOhm @ 60A, 10V | 4V @ 250µA | 114.6 nC @ 10 V | ±20V | 6665 pF @ 25 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

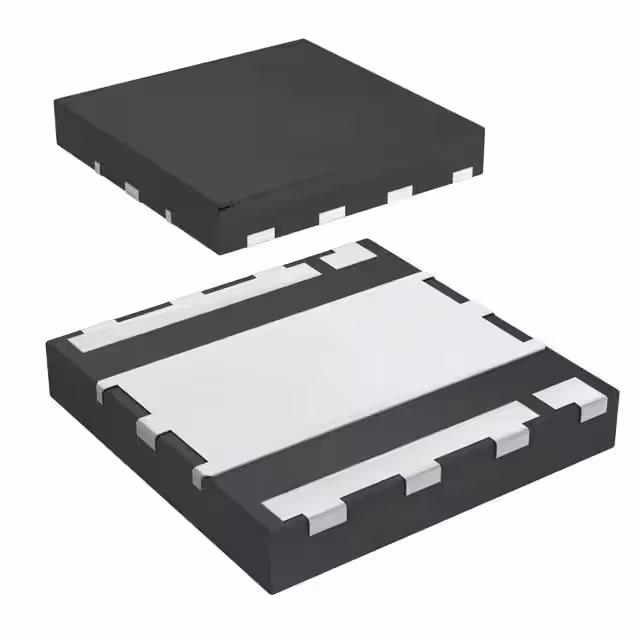

STL35N6F3MOSFET N-CH 60V 35A POWERFLAT |
2,192 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 35A (Tc) | 10V | 22mOhm @ 3A, 10V | 4V @ 250µA | - | ±20V | - | - | 5W (Ta), 80W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STL16N1VH5MOSFET N-CH 12V 16A POWERFLAT |
3,191 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 16A (Tc) | 2.5V, 4.5V | 3mOhm @ 8A, 4.5V | 500mV @ 250µA (Min) | 26.5 nC @ 4.5 V | ±8V | 2085 pF @ 12 V | - | 2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STL8N65M5MOSFET N-CH 650V 7A POWERFLAT |
3,377 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 1.4A (Ta), 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±25V | 690 pF @ 100 V | - | 2.5W (Ta), 70W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STP10N65K3MOSFET N-CH 650V 10A TO220 |
3,324 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 1Ohm @ 3.6A, 10V | 4.5V @ 100µA | 42 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB6N62K3MOSFET N-CH 620V 5.5A D2PAK |
3,633 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 5.5A (Tc) | 10V | 1.2Ohm @ 2.8A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 875 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Surface Mount |
|
STFW6N120K3MOSFET N-CH 1200V 6A ISOWATT |
3,820 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.4Ohm @ 2.5A, 10V | 5V @ 100µA | 34 nC @ 10 V | ±30V | 1050 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP6N120K3MOSFET N-CH 1200V 6A TO220 |
3,843 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.4Ohm @ 2.5A, 10V | 5V @ 100µA | 34 nC @ 10 V | ±30V | 1050 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STW6N120K3MOSFET N-CH 1200V 6A TO247 |
3,756 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.4Ohm @ 2.5A, 10V | 5V @ 100µA | 34 nC @ 10 V | ±30V | 1050 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
;;2.jpg)
|
STD3PK50ZMOSFET P-CH 500V 2.8A DPAK |
3,249 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 500 V | 2.8A (Tc) | 10V | 4Ohm @ 1.4A, 10V | 4.5V @ 100µA | 20 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STS12N3LLH5MOSFET N-CH 30V 12A 8SO |
3,232 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Tc) | 4.5V, 10V | 7.5mOhm @ 6A, 10V | 1V @ 250µA | 8 nC @ 4.5 V | +22V, -20V | 1290 pF @ 25 V | - | 2.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STS26N3LLH6MOSFET N-CH 30V 26A 8SO |
2,588 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Tc) | 4.5V, 10V | 4.4mOhm @ 13A, 10V | 1V @ 250µA | 40 nC @ 4.5 V | ±20V | 4040 pF @ 25 V | - | 2.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STI5N52UMOSFET N-CH 525V 4.4A I2PAK |
3,245 | 0.00 |
RFQ |
Datasheet |
Tube | UltraFASTmesh™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 4.4A (Tc) | 10V | 1.5Ohm @ 2.2A, 10V | 4.5V @ 50µA | 16.9 nC @ 10 V | ±30V | 529 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
