| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

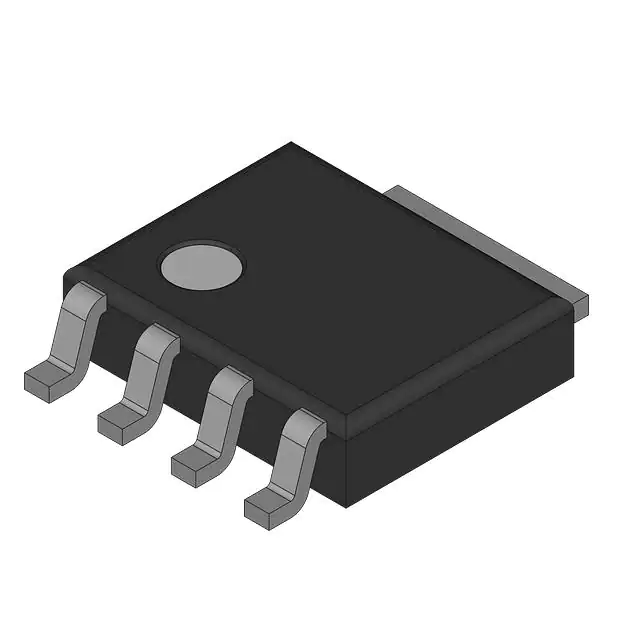

PH6930DL115SMALL SIGNAL N-CHANNEL MOSFET |
342,000 | 0.06 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PMXB65ENE147SMALL SIGNAL FET |
1,230,000 | 0.09 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BUK4D110-20PXSMALL SIGNAL MOSFET FOR AUTOMOTI |
3,000 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta), 6.7A (Tc) | 2.5V, 8V | 96mOhm @ 3.4A, 8V | 1.3V @ 250µA | 5 nC @ 4.5 V | ±12V | 365 pF @ 10 V | - | 2W (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMN40XPEAAXSMALL SIGNAL MOSFET FOR AUTOMOTI |
3,000 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.7A (Ta) | 2.5V, 8V | 46mOhm @ 4.7A, 8V | 1.3V @ 250µA | 16 nC @ 4.5 V | ±12V | 1025 pF @ 10 V | - | 660mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMN40XPEAXSMALL SIGNAL MOSFET FOR AUTOMOTI |
3,000 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.7A (Ta) | 2.5V, 8V | 46mOhm @ 4.7A, 8V | 1.3V @ 250µA | 16 nC @ 4.5 V | ±12V | 1025 pF @ 10 V | - | 660mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
PXP012-30QLJP-CHANNEL TRENCH MOSFET |
9,975 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.9A (Ta), 38.8A (Tc) | 4.5V, 10V | 12.8mOhm @ 9A, 10V | 2V @ 250µA | 43.4 nC @ 10 V | ±25V | 1400 pF @ 15 V | - | 1.7W (Ta), 32W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMCB60XNZPMCB60XN/NAX000/NONE |
17,110 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 1.8V, 4.5V | 50mOhm @ 4A, 4.5V | 1.1V @ 250µA | 2.7 nC @ 4.5 V | ±12V | 241 pF @ 15 V | - | 480mW (Ta), 7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMPB16R5XNEXPMPB16R5XNE - 30 V, N-CHANNEL TR |
9,000 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 1.5V, 4.5V | 19mOhm @ 4.5A, 4.5V | 900mV @ 250µA | 18 nC @ 4.5 V | ±12V | 1150 pF @ 15 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMPB50ENEA115SMALL SIGNAL FET |
15,000 | 0.12 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMPB16XNEA115N-CHANNEL POWER MOSFET |
12,000 | 0.12 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BUK4D38-20PXSMALL SIGNAL MOSFET FOR AUTOMOTI |
3,000 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta), 18A (Tc) | 2.5V, 8V | 33mOhm @ 6A, 8V | 1.3V @ 250µA | 16 nC @ 4.5 V | ±12V | 1025 pF @ 10 V | - | 2W (Ta), 19W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMPB09R5VPXPMPB09R5VP - 12 V, P-CHANNEL TRE |
5,989 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 10.5A (Ta) | 1.5V, 4.5V | 12mOhm @ 10.5A, 4.5V | 900mV @ 250µA | 46 nC @ 4.5 V | ±8V | 2700 pF @ 6 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMCA14UNYLSMALL SIGNAL MOSFET FOR MOBILE |
5,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 11A (Ta) | 1.8V, 4.5V | 16mOhm @ 5A, 4.5V | 900mV @ 250µA | 12 nC @ 3.3 V | ±8V | 855 pF @ 6 V | - | 1.2W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK4D60-30XSMALL SIGNAL MOSFET FOR AUTOMOTI |
3,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.2A (Ta), 8.3A (Tc) | 2.5V, 8V | 57mOhm @ 4.2A, 8V | 1.25V @ 250µA | 5 nC @ 4.5 V | ±12V | 296 pF @ 15 V | - | 2W (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMPB12R7EPXPMPB12R7EP - 30 V, P-CHANNEL TRE |
8,372 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.7A (Ta) | 4.5V, 10V | 15.5mOhm @ 8.7A, 10V | 2.5V @ 250µA | 49 nC @ 10 V | ±20V | 1638 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK4D16-20XSMALL SIGNAL MOSFET FOR AUTOMOTI |
3,000 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 8.5A (Ta), 26A (Tc) | 2.5V, 8V | 14mOhm @ 9A, 8V | 1.3V @ 250µA | 15 nC @ 4.5 V | ±12V | 931 pF @ 10 V | - | 2W (Ta), 19W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMPB07R0UNAXSMALL SIGNAL MOSFET FOR MOBILE |
3,000 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 11.6A (Ta) | 1.5V, 4.5V | 9mOhm @ 11.6A, 4.5V | 900mV @ 250µA | 30 nC @ 4.5 V | ±12V | 1696 pF @ 10 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMPB08R5XNXPMPB08R5XN/SOT1220-2/DFN2020M- |
3,000 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 1.8V, 4.5V | 10mOhm @ 11A, 4.5V | 1V @ 250µA | 30 nC @ 4.5 V | ±12V | 1774 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMPB25ENEA115SMALL SIGNAL N-CHANNEL MOSFET |
33,000 | 0.14 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMPB07R3ENAXSMALL SIGNAL MOSFET FOR MOBILE |
3,000 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 8.6mOhm @ 12A, 10V | 2.2V @ 250µA | 19 nC @ 10 V | ±20V | 914 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
