| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMN1R5-40PS,127MOSFET N-CH 40V 120A TO220AB |
2,978 | 4.86 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.6mOhm @ 25A, 10V | 4V @ 1mA | 136 nC @ 10 V | ±20V | 9710 pF @ 20 V | - | 338W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

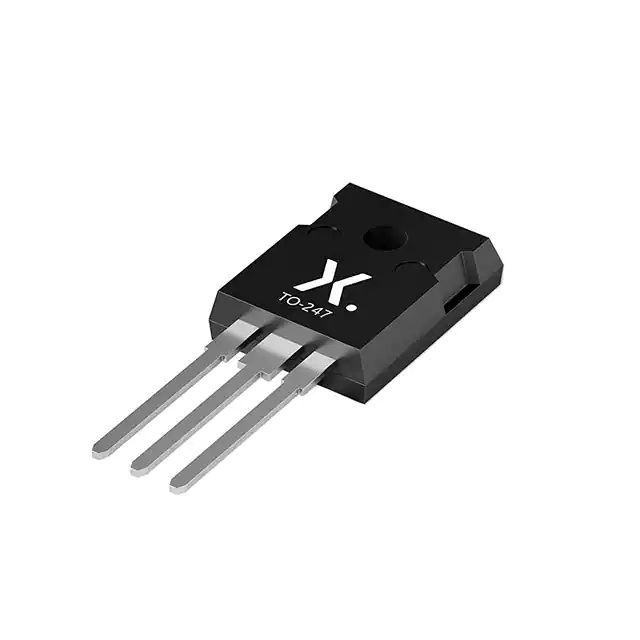

GAN063-650WSAQGANFET N-CH 650V 34.5A TO247-3 |
2,905 | 15.04 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 650 V | 34.5A (Ta) | 10V | 60mOhm @ 25A, 10V | 4.5V @ 1mA | 15 nC @ 10 V | ±20V | 1000 pF @ 400 V | - | 143W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
|
GAN041-650WSBQGAN041-650WSB/SOT429/TO-247 |
2,381 | 18.19 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 650 V | 47.2A | 10V | 41mOhm @ 32A, 10V | 4.5V @ 1mA | 22 nC @ 10 V | ±20V | 1500 pF @ 400 V | - | 187W | -55°C ~ 175°C (TJ) | Through Hole |
|
NX138BKRMOSFET N-CH 60V 265MA TO236AB |
2,741 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 265mA (Ta) | 2.5V, 10V | 3.5Ohm @ 200mA, 10V | 1.5V @ 250µA | 0.49 nC @ 4.5 V | ±20V | 20.2 pF @ 30 V | - | 310mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMZB290UN,315MOSFET N-CH 20V 1A DFN1006B-3 |
3,394 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.8V, 4.5V | 380mOhm @ 500mA, 4.5V | 950mV @ 250µA | 0.68 nC @ 4.5 V | ±8V | 83 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMZB1200UPEYLMOSFET P-CH 30V 410MA DFN1006B-3 |
46,352 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 410mA (Ta) | 1.5V, 4.5V | 1.4Ohm @ 410mA, 4.5V | 950mV @ 250µA | 1.2 nC @ 4.5 V | ±8V | 43.2 pF @ 15 V | - | 310mW (Ta), 1.67W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMZ950UPEYLMOSFET P-CH 20V 500MA DFN1006-3 |
3,599 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.2V, 4.5V | 1.4Ohm @ 500mA, 4.5V | 950mV @ 250µA | 2.1 nC @ 4.5 V | ±8V | 43 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMZ350UPEYLMOSFET P-CH 20V 1A DFN1006-3 |
2,460 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.8V, 4.5V | 450mOhm @ 300mA, 4.5V | 950mV @ 250µA | 1.9 nC @ 4.5 V | ±8V | 127 pF @ 10 V | - | 360mW (Ta), 3.125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV28UNEARMOSFET N-CH 20V 4.7A TO236AB |
3,260 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.7A (Ta) | 1.8V, 4.5V | 32mOhm @ 4.7A, 4.5V | 1V @ 250µA | 10 nC @ 4.5 V | ±8V | 490 pF @ 10 V | - | 510mW (Ta), 3.9W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV74EPERMOSFET P-CH 30V 2.8A TO236AB |
2,811 | 0.51 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Ta) | 4.5V, 10V | 90mOhm @ 2.8A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 356 pF @ 15 V | - | 510mW (Ta), 6.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
NX7002BKSXMOSFET N-CH 60V 270MA 6TSSOP |
2,072 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 270mA (Ta) | 5V, 10V | 2.8Ohm @ 200mA, 10V | 2.1V @ 250µA | 1 nC @ 10 V | ±20V | 23.6 pF @ 10 V | - | 310mW (Ta), 1.67W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMZB350UPE,315MOSFET P-CH 20V 1A DFN1006B-3 |
2,457 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.8V, 4.5V | 450mOhm @ 300mA, 4.5V | 950mV @ 250µA | 1.9 nC @ 4.5 V | ±8V | 127 pF @ 10 V | - | 360mW (Ta), 3.125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMZ200UNEYLMOSFET N-CH 30V 1.4A DFN1006-3 |
2,981 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 1.5V, 4.5V | 250mOhm @ 1.4A, 4.5V | 950mV @ 250µA | 2.7 nC @ 4.5 V | ±8V | 89 pF @ 15 V | - | 350mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMN230ENEAXMOSFET N-CH 60V 1.8A 6TSOP |
2,259 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.8A (Ta) | 4.5V, 10V | 222mOhm @ 1.8A, 10V | 2.7V @ 250µA | 3.8 nC @ 10 V | ±20V | 110 pF @ 30 V | - | 625mW (Ta), 5.4W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
PMXB350UPEZMOSFET P-CH 20V 1.2A DFN1010D-3 |
2,468 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.2A (Ta) | 1.2V, 4.5V | 447mOhm @ 1.2A, 4.5V | 950mV @ 250µA | 2.3 nC @ 4.5 V | ±8V | 116 pF @ 10 V | - | 360mW (Ta), 5.68W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV42ENERMOSFET N-CH 30V 4.4A TO236AB |
2,997 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.4A (Ta) | 4.5V, 10V | 36mOhm @ 4.4A, 10V | 2V @ 250µA | 9 nC @ 10 V | ±20V | 281 pF @ 15 V | - | 500mW (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMZ390UNEYLMOSFET N-CH 30V 900MA DFN1006-3 |
2,320 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Ta) | 1.5V, 4.5V | 470mOhm @ 900mA, 4.5V | 950mV @ 250µA | 1.3 nC @ 4.5 V | ±8V | 41 pF @ 15 V | - | 350mW (Ta), 5.43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMXB56ENZMOSFET N-CH 30V 3.2A DFN1010D-3 |
160,000 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.2A (Ta) | 4.5V, 10V | 55mOhm @ 3.2A, 10V | 2V @ 250µA | 6.3 nC @ 10 V | ±20V | 209 pF @ 15 V | - | 400mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV48XPA2RMOSFET P-CH 20V 4A TO236AB |
3,174 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 8V | 49mOhm @ 4A, 8V | 1.3V @ 250µA | 10 nC @ 4.5 V | ±12V | 679 pF @ 10 V | - | 610mW (Ta), 8.3W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMV52ENEARMOSFET N-CH 30V 3.2A TO236AB |
3,268 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.2A (Ta) | 4.5V, 10V | 70mOhm @ 3.2A, 10V | 2.5V @ 250µA | 3.3 nC @ 10 V | ±20V | 100 pF @ 15 V | - | 630mW (Ta), 5.7W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
