| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMV240SPRMOSFET P-CH 100V 1.2A TO236AB |
2,210 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 1.2A (Ta) | - | 365mOhm @ 1.2A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±25V | 549 pF @ 50 V | - | 710mW (Ta), 8.3W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BUK6D30-40EXMOSFET N-CH 40V 6A/18A 6DFN |
3,724 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta), 18A (Tc) | 4.5V, 10V | 30mOhm @ 6A, 10V | 2.5V @ 250µA | 12 nC @ 10 V | ±20V | 440 pF @ 20 V | - | 2W (Ta), 19W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMV27UPERMOSFET P-CH 20V 4.5A TO236AB |
1,942 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 1.8V, 4.5V | 32mOhm @ 4.5A, 4.5V | 950mV @ 250µA | 22.1 nC @ 4.5 V | ±8V | 1820 pF @ 10 V | - | 490mW (Ta), 4.15W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMPB20XPEZMOSFET P-CH 20V 7.2A DFN2020MD-6 |
2,921 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.2A (Ta) | 1.8V, 4.5V | 23.5mOhm @ 7.2A, 4.5V | 900mV @ 250µA | 45 nC @ 4.5 V | ±12V | 2945 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMN20ENAXMOSFET N-CH 40V 6.2A 6TSOP |
2,009 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 6.2A (Ta) | 4.5V, 10V | 23mOhm @ 6.2A, 10V | 2.7V @ 250µA | 17 nC @ 10 V | ±20V | 582 pF @ 20 V | - | 652mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PMV48XP,215MOSFET P-CH 20V 3.5A TO236AB |
3,160 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 2.5V, 4.5V | 55mOhm @ 2.4A, 4.5V | 1.25V @ 250µA | 11 nC @ 4.5 V | ±12V | 1000 pF @ 10 V | - | 510mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BUK7880-55A/CUXMOSFET N-CH 55V 7A SOT223 |
3,854 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 7A (Tc) | 10V | 80mOhm @ 10A, 10V | 4V @ 1mA | 12 nC @ 10 V | ±20V | 500 pF @ 25 V | - | 8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV32UP,215MOSFET P-CH 20V 4A TO236AB |
3,491 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.8V, 4.5V | 36mOhm @ 2.4A, 4.5V | 950mV @ 250µA | 15.5 nC @ 4.5 V | ±8V | 1890 pF @ 10 V | - | 510mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMPB14R0EPXMOSFET P-CH 30V 9A DFN2020M-6 |
2,394 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | - | 16mOhm @ 8.5A, 10V | 2V @ 250µA | 40 nC @ 10 V | ±20V | 227 pF @ 15 V | - | 1.9W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV33UPE,215MOSFET P-CH 20V 4.4A TO236AB |
3,326 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 1.8V, 4.5V | 36mOhm @ 3A, 4.5V | 950mV @ 250µA | 22.1 nC @ 4.5 V | ±8V | 1820 pF @ 10 V | - | 490mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

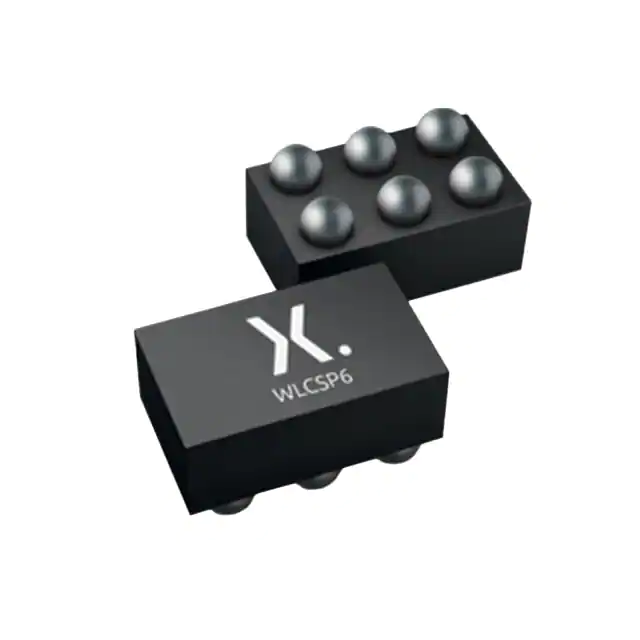

PMCM6501UPEZMOSFET P-CH 20V 6WLCSP |
3,080 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.3A (Tj) | 2.5V, 4.5V | - | - | 19.1 nC @ 4.5 V | - | - | - | 556mW | 150°C (TJ) | Surface Mount |
|
|
BSP230,135MOSFET P-CH 300V 210MA SOT223 |
3,852 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk,Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 300 V | 210mA (Ta) | 10V | 17Ohm @ 170mA, 10V | 2.55V @ 1mA | - | ±20V | 90 pF @ 25 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
PXP400-100QSJMOSFET P-CH 100V 1.4A MLPAK33 |
3,954 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 1.4A (Ta), 3.5A (Tc) | 6V, 10V | 400mOhm @ 1.4A, 10V | 4V @ 250µA | 15.2 nC @ 10 V | ±20V | 544 pF @ 50 V | - | 1.7W (Ta), 10.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PSMN045-80YS,115MOSFET N-CH 80V 24A LFPAK56 |
3,280 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 24A (Tc) | 10V | 45mOhm @ 5A, 10V | 4V @ 1mA | 12.5 nC @ 10 V | ±20V | 675 pF @ 40 V | - | 56W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
PMN100EPAXMOSFET P-CH 60V 2.5A 6TSOP |
3,000 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.5A (Ta) | 4.5V, 10V | 130mOhm @ 2.5A, 10V | 3.2V @ 250µA | 17 nC @ 10 V | ±20V | 616 pF @ 30 V | - | 660mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BUK9Y21-40E,115MOSFET N-CH 40V 33A LFPAK56 |
2,314 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 33A (Tc) | 5V | 17mOhm @ 10A, 10V | 2.1V @ 1mA | 7 nC @ 5 V | ±10V | 824 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PSMN014-40YS,115MOSFET N-CH 40V 46A LFPAK56 |
3,512 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Tc) | 10V | 14mOhm @ 5A, 10V | 4V @ 1mA | 12 nC @ 10 V | ±20V | 702 pF @ 20 V | - | 56W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
PSMN011-30YLC,115MOSFET N-CH 30V 37A LFPAK56 |
3,895 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 37A (Tc) | 4.5V, 10V | 11.6mOhm @ 10A, 10V | 1.95V @ 1mA | 10.3 nC @ 10 V | ±20V | 641 pF @ 15 V | - | 29W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
PSMN012-60MSXMOSFET N-CH 60V 53A LFPAK33 |
3,019 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 53A (Ta) | 10V | 12mOhm @ 15A, 10V | 4V @ 1mA | 24.8 nC @ 10 V | ±20V | 1625 pF @ 25 V | - | 75W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BUK9875-100A/CUXMOSFET N-CH 100V 7A SOT223 |
2,931 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7A (Tc) | 4.5V, 10V | 72mOhm @ 8A, 10V | 2V @ 1mA | - | ±10V | 1690 pF @ 25 V | - | 8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
