| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

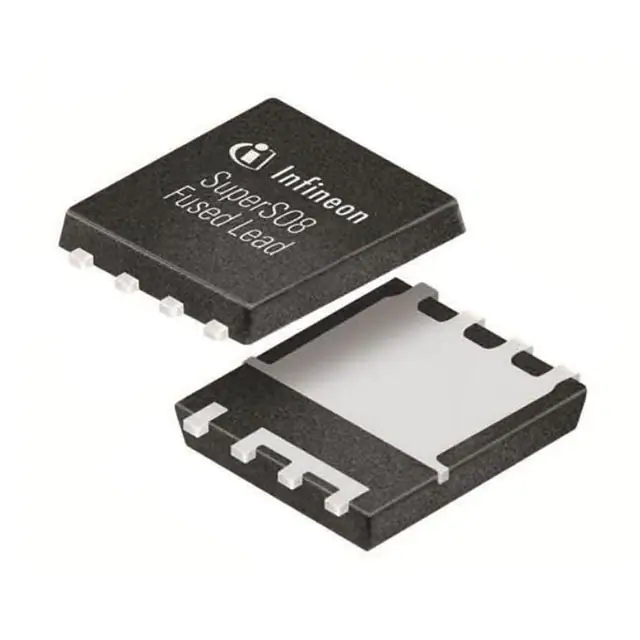

BSC005N03LS5ATMA1TRENCH <= 40V |
3,618 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 42A (Ta), 433A (Tc) | 4.5V, 10V | 0.55mOhm @ 50A, 10V | 2V @ 250µA | 122 nC @ 10 V | ±20V | 8900 pF @ 15 V | - | 3W (Ta), 188W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SPD03N60C3ATMA1MOSFET N-CH 600V 3.2A TO252-3 |
7,500 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.2A (Tc) | 10V | 1.4Ohm @ 2A, 10V | 3.9V @ 135µA | 17 nC @ 10 V | ±20V | 400 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLZ44ZPBFMOSFET N-CH 55V 51A TO220AB |
700 | 1.50 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 55 V | 51A (Tc) | 4.5V, 10V | 13.5mOhm @ 31A, 10V | 3V @ 250µA | 36 nC @ 5 V | ±16V | 1620 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPD025N06NATMA1MOSFET N-CH 60V 90A TO252-3 |
2,477 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 6V, 10V | 2.5mOhm @ 90A, 10V | 2.8V @ 95µA | 71 nC @ 10 V | ±20V | 5200 pF @ 30 V | - | 3W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRL7833STRLPBFMOSFET N-CH 30V 150A D2PAK |
2,747 | 2.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 3.8mOhm @ 38A, 10V | 2.3V @ 250µA | 47 nC @ 4.5 V | ±20V | 4170 pF @ 15 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF540ZPBFMOSFET N-CH 100V 36A TO220AB |
2,118 | 1.54 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 10V | 26.5mOhm @ 22A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
AUIRF7675M2TRMOSFET N-CH 150V 4.4A DIRECTFET |
2,715 | 3.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 4.4A (Ta), 18A (Tc) | 10V | 56mOhm @ 11A, 10V | 5V @ 100µA | 32 nC @ 10 V | ±20V | 1360 pF @ 25 V | - | 2.7W (Ta), 45W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPB65R660CFDAATMA1MOSFET N-CH 650V 6A D2PAK |
3,733 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101, CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Tc) | 10V | 660mOhm @ 3.2A, 10V | 4.5V @ 200µA | 20 nC @ 10 V | ±20V | 543 pF @ 100 V | - | 62.5W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
BSC030P03NS3GAUMA1MOSFET P-CH 30V 25.4/100A 8TDSON |
3,202 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 25.4A (Ta), 100A (Tc) | 6V, 10V | 3mOhm @ 50A, 10V | 3.1V @ 345µA | 186 nC @ 10 V | ±25V | 14000 pF @ 15 V | - | 2.5W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF8010STRLPBFMOSFET N-CH 100V 80A D2PAK |
2,124 | 2.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 15mOhm @ 45A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 3830 pF @ 25 V | - | 260W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFI530NPBFMOSFET N-CH 100V 12A TO220AB FP |
34,440 | 1.61 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Tc) | 10V | 110mOhm @ 6.6A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 640 pF @ 25 V | - | 41W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPB049NE7N3GATMA1MOSFET N-CH 75V 80A D2PAK |
3,687 | 3.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 4.9mOhm @ 80A, 10V | 3.8V @ 91µA | 68 nC @ 10 V | ±20V | 4750 pF @ 37.5 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPAW60R360P7SXKSA1MOSFET N-CH 650V 9A TO220 |
2,547 | 1.67 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Tc) | 10V | 360mOhm @ 2.7A, 10V | 4V @ 140µA | 13 nC @ 10 V | ±30V | 555 pF @ 400 V | - | 22W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
BSC060N10NS3GATMA1MOSFET N-CH 100V 14.9/90A 8TDSON |
2,397 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14.9A (Ta), 90A (Tc) | 6V, 10V | 6mOhm @ 50A, 10V | 3.5V @ 90µA | 68 nC @ 10 V | ±20V | 4900 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
AUIRFR5305TRMOSFET P-CH 55V 31A DPAK |
2,248 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | - | 65mOhm @ 16A, 10V | 4V @ 250µA | 63 nC @ 10 V | - | 1200 pF @ 25 V | - | - | - | Surface Mount |
|
IRF6614TRPBFMOSFET N-CH 40V 12.7A DIRECTFET |
2,052 | 3.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12.7A (Ta), 55A (Tc) | 4.5V, 10V | 8.3mOhm @ 12.7A, 10V | 2.25V @ 250µA | 29 nC @ 4.5 V | ±20V | 2560 pF @ 20 V | - | 2.1W (Ta), 42W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IPL60R285P7AUMA1MOSFET N-CH 600V 13A 4VSON |
3,515 | 3.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 285mOhm @ 3.8A, 10V | 4V @ 190µA | 18 nC @ 10 V | ±20V | 761 pF @ 400 V | - | 59W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IPP039N04LGXKSA1MOSFET N-CH 40V 80A TO220-3 |
3,418 | 1.71 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 4.5V, 10V | 3.9mOhm @ 80A, 10V | 2V @ 45µA | 78 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPB049N08N5ATMA1MOSFET N-CH 80V 80A D2PAK |
3,318 | 3.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 6V, 10V | 4.9mOhm @ 80A, 10V | 3.8V @ 66µA | 53 nC @ 10 V | ±20V | 3770 pF @ 40 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSC010N04LSTATMA1MOSFET N-CH 40V 39A/100A TDSON |
2,444 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 39A (Ta), 100A (Tc) | 4.5V, 10V | 1mOhm @ 50A, 10V | 2V @ 250µA | 133 nC @ 10 V | ±20V | 9520 pF @ 20 V | - | 3W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
