| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF640NPBFMOSFET N-CH 200V 18A TO220AB |
78,692 | 1.32 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 150mOhm @ 11A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1160 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRF3710ZSTRLPBFMOSFET N-CH 100V 59A D2PAK |
4,289 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 59A (Tc) | 10V | 18mOhm @ 35A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF6648TRPBFMOSFET N-CH 60V 86A DIRECTFET MN |
2,380 | 2.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 86A (Tc) | 10V | 7mOhm @ 17A, 10V | 4.9V @ 150µA | 50 nC @ 10 V | ±20V | 2120 pF @ 25 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF540NPBFMOSFET N-CH 100V 33A TO220AB |
98,583 | 1.35 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Tc) | 10V | 44mOhm @ 16A, 10V | 4V @ 250µA | 71 nC @ 10 V | ±20V | 1960 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRL540NSTRLPBFMOSFET N-CH 100V 36A D2PAK |
63,884 | 2.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 4V, 10V | 44mOhm @ 18A, 10V | 2V @ 250µA | 74 nC @ 5 V | ±16V | 1800 pF @ 25 V | - | 3.8W (Ta), 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPD80R450P7ATMA1MOSFET N-CH 800V 11A TO252 |
27,362 | 2.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 450mOhm @ 4.5A, 10V | 3.5V @ 220µA | 24 nC @ 10 V | ±20V | 770 pF @ 500 V | Super Junction | 73W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFZ46NPBFMOSFET N-CH 55V 53A TO220AB |
14,769 | 1.38 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 53A (Tc) | 10V | 16.5mOhm @ 28A, 10V | 4V @ 250µA | 72 nC @ 10 V | ±20V | 1696 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPD70N10S312ATMA1MOSFET N-CH 100V 70A TO252-3 |
14,510 | 2.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Tc) | 10V | 11.1mOhm @ 70A, 10V | 4V @ 83µA | 65 nC @ 10 V | ±20V | 4355 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF1310NSTRLPBFMOSFET N-CH 100V 42A D2PAK |
26,957 | 2.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 36mOhm @ 22A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 3.8W (Ta), 160W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSC027N06LS5ATMA1MOSFET N-CH 60V 100A TDSON |
15,808 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 2.7mOhm @ 50A, 10V | 2.3V @ 49µA | 30 nC @ 4.5 V | ±20V | 4400 pF @ 30 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

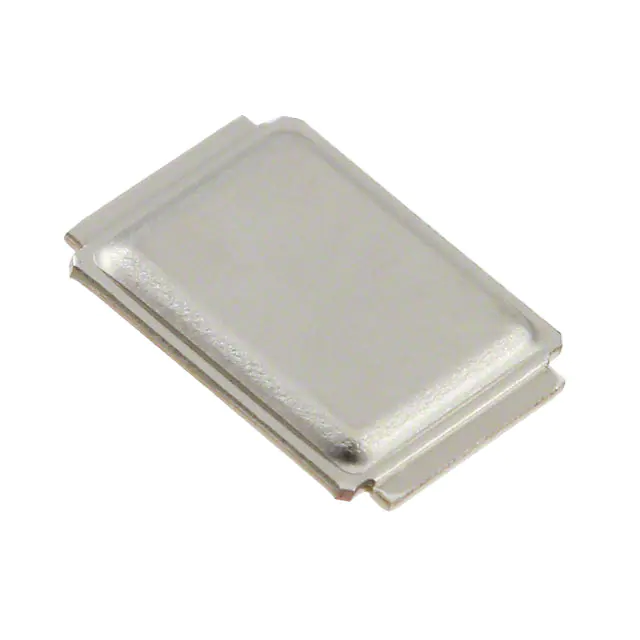

IRF7946TRPBFMOSFET N-CH 40V 90A DIRECTFET MX |
30,667 | 2.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 90A (Tc) | 6V, 10V | 1.4mOhm @ 90A, 10V | 3.9V @ 150µA | 212 nC @ 10 V | ±20V | 6852 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC019N06NSATMA1MOSFET N-CH 60V 100A TDSON-8 FL |
4,759 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 6V, 10V | 1.95mOhm @ 50A, 10V | 3.3V @ 74µA | 77 nC @ 10 V | ±20V | 5250 pF @ 30 V | - | 136W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRLZ44NPBFMOSFET N-CH 55V 47A TO220AB |
54,179 | 1.52 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 47A (Tc) | 4V, 10V | 22mOhm @ 25A, 10V | 2V @ 250µA | 48 nC @ 5 V | ±16V | 1700 pF @ 25 V | - | 3.8W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
BSC028N06NSTATMA1MOSFET N-CH 60V 24A/100A TDSON |
7,543 | 3.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Ta), 100A (Tc) | 6V, 10V | 2.8mOhm @ 50A, 10V | 3.3V @ 50µA | 49 nC @ 10 V | ±20V | 3375 pF @ 30 V | - | 3W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF9540NPBFMOSFET P-CH 100V 23A TO220AB |
20,840 | 1.55 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 10V | 117mOhm @ 11A, 10V | 4V @ 250µA | 97 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFZ44NPBFMOSFET N-CH 55V 49A TO220AB |
17,626 | 1.58 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 49A (Tc) | 10V | 17.5mOhm @ 25A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1470 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF5305PBFMOSFET P-CH 55V 31A TO220AB |
30,726 | 1.64 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | 10V | 60mOhm @ 16A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPD031N06L3GATMA1MOSFET N-CH 60V 100A TO252-3 |
8,635 | 3.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 3.1mOhm @ 100A, 10V | 2.2V @ 93µA | 79 nC @ 4.5 V | ±20V | 13000 pF @ 30 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPA60R360P7SXKSA1MOSFET N-CH 600V 9A TO220 |
31,752 | 1.67 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 360mOhm @ 2.7A, 10V | 4V @ 140µA | 13 nC @ 10 V | ±20V | 555 pF @ 400 V | - | 22W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IRFS4620TRLPBFMOSFET N-CH 200V 24A D2PAK |
11,313 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 77.5mOhm @ 15A, 10V | 5V @ 100µA | 38 nC @ 10 V | ±20V | 1710 pF @ 50 V | - | 144W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
