| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPAW60R280P7SXKSA1MOSFET N-CH 600V 12A TO220 |
2,037 | 1.80 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 280mOhm @ 3.8A, 10V | 4V @ 190µA | 18 nC @ 10 V | ±20V | 761 pF @ 400 V | - | 24W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPA80R1K4P7XKSA1MOSFET N-CH 800V 4A TO220-3F |
475 | 1.90 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.4Ohm @ 1.4A, 10V | 3.5V @ 700µA | 10 nC @ 10 V | ±20V | 250 pF @ 500 V | Super Junction | 24W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPP80R1K4P7XKSA1MOSFET N-CH 800V 4A TO220-3 |
412 | 1.90 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.4Ohm @ 1.4A, 10V | 3.5V @ 70µA | 10 nC @ 10 V | ±20V | 250 pF @ 500 V | Super Junction | 32W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF4104PBFMOSFET N-CH 40V 75A TO220AB |
998 | 2.39 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPS60R210PFD7SAKMA1MOSFET N-CH 650V 16A TO251-3 |
308 | 2.39 |
RFQ |
Tube | CoolMOS™PFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 210mOhm @ 4.9A, 10V | 4.5V @ 240µA | 23 nC @ 10 V | ±20V | 1015 pF @ 400 V | - | 64W (Tc) | -40°C ~ 150°C (TJ) | Through Hole | |
|
IPI029N06NAKSA1MOSFET N-CH 60V 24A/100A TO262-3 |
246 | 2.66 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Ta), 100A (Tc) | 6V, 10V | 2.9mOhm @ 100A, 10V | 2.8V @ 75µA | 56 nC @ 10 V | ±20V | 4100 pF @ 30 V | - | 3W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPAN60R210PFD7SXKSA1MOSFET N-CH 650V 16A TO220 |
840 | 2.67 |
RFQ |
Tube | CoolMOS™PFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 210mOhm @ 4.9A, 10V | 4.5V @ 240µA | 23 nC @ 10 V | ±20V | 1015 pF @ 400 V | - | 25W (Tc) | -40°C ~ 150°C (TJ) | Through Hole | |
|
|
IPP80R360P7XKSA1MOSFET N-CH 800V 13A TO220-3 |
2,241 | 3.25 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 360mOhm @ 5.6A, 10V | 3.5V @ 280µA | 30 nC @ 10 V | ±20V | 930 pF @ 500 V | - | 84W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPZA60R120P7XKSA1MOSFET N-CH 600V 26A TO247-4 |
2,555 | 7.27 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 120mOhm @ 8.2A, 10V | 4V @ 410µA | 36 nC @ 10 V | ±20V | 1544 pF @ 400 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SPW35N60C3FKSA1MOSFET N-CH 650V 34.6A TO247-3 |
3,156 | 12.87 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34.6A (Tc) | 10V | 100mOhm @ 21.9A, 10V | 3.9V @ 1.9mA | 200 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IMZA65R107M1HXKSA1MOSFET 650V NCH SIC TRENCH |
307 | 13.65 |
RFQ |
Tube | - | Active | - | - | - | 20A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|

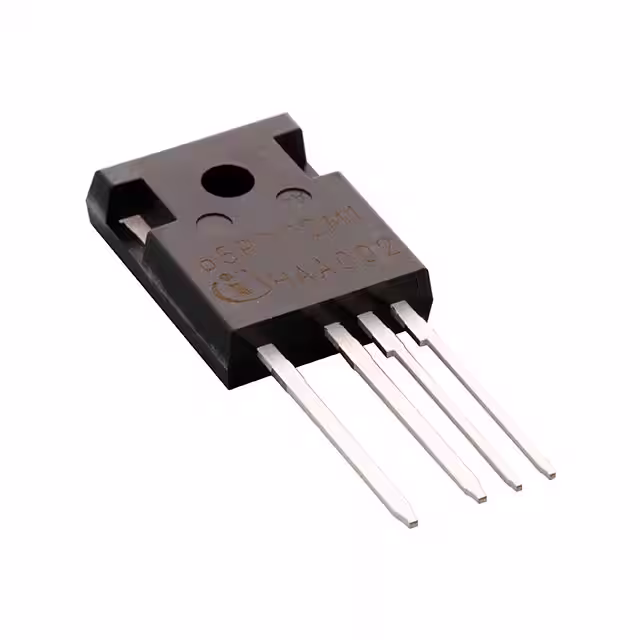

IMZA65R072M1HXKSA1MOSFET 650V NCH SIC TRENCH |
288 | 14.80 |
RFQ |
Tube | - | Active | - | - | - | 28A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|
BF2040RE6814RF N-CHANNEL MOSFET |
9,777 | 0.07 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BSS119N H7796SMALL SIGNAL N-CHANNEL MOSFET |
10,000 | 0.08 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BF2040E6814HTSARF N-CHANNEL MOSFET |
6,000 | 0.08 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BF20-40E6814RF N-CHANNEL MOSFET |
4,000 | 0.08 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BF5020WE6327N-CHANNEL POWER MOSFET |
2,615 | 0.13 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPU50R950CEBTMA1N-CHANNEL POWER MOSFET |
4,380 | 0.16 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPS135N03LGN-CHANNEL POWER MOSFET |
2,861 | 0.16 |
RFQ |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSO083N03N03MSGN-CHANNEL POWER MOSFET |
2,500 | 0.16 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
