| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPI08N80C3MOSFET N-CH 800V 8A TO262-3 |
24,755 | 0.92 |
RFQ |
Datasheet |
Bulk,Bulk | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 650mOhm @ 5.1A, 10V | 3.9V @ 470µA | 60 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

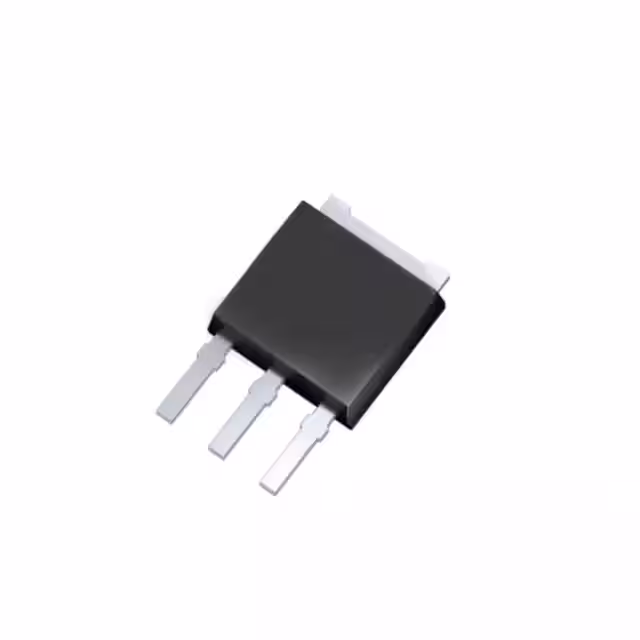

SPS03N60C3MOSFET N-CH 600V 3.2A TO251-3 |
3,127 | 0.00 |
RFQ |
Datasheet |
Bulk | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.2A (Tc) | 10V | 1.4Ohm @ 2A, 10V | 3.9V @ 135µA | 17 nC @ 10 V | ±20V | 400 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
AUXGMFR120ZTRLMOSFET N-CH 100V 8.7A DPAK |
3,732 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

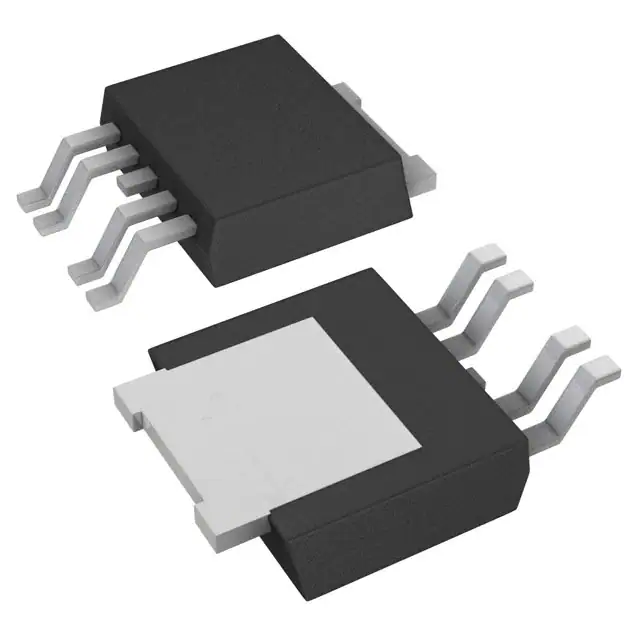

SPD50P03LGXTMOSFET P-CH 30V 50A TO252-5 |
2,113 | 0.00 |
RFQ |
Tape & Reel (TR) | OptiMOS®-P | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 7mOhm @ 50A, 10V | 2V @ 250µA | 126 nC @ 10 V | ±20V | 6880 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
IPI045N10N3GXKMOSFET N-CH 100V 137A TO262-3 |
2,775 | 0.00 |
RFQ |
Tube | OptiMOS™ 3 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 137A (Tc) | 6V, 10V | 4.5mOhm @ 100A, 10V | 3.5V @ 150µA | 117 nC @ 10 V | ±20V | 8410 pF @ 50 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
|
IPP023NE7N3GMOSFET N-CH 75V 120A TO220-3 |
3,537 | 0.00 |
RFQ |
Datasheet |
Tube | OptiMOS™ 3 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.8V @ 273µA | 206 nC @ 10 V | ±20V | 14400 pF @ 37.5 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SPP04N80C3XKMOSFET N-CH 800V 4A TO220-3 |
3,360 | 1.00 |
RFQ |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.3Ohm @ 2.5A, 10V | 3.9V @ 240µA | 31 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
SPP06N80C3XKMOSFET N-CH 800V 6A TO220-3 |
2,188 | 0.00 |
RFQ |
Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 900mOhm @ 3.8A, 10V | 3.9V @ 250µA | 41 nC @ 10 V | ±20V | 785 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
SPP08N80C3XKMOSFET N-CH 800V 8A TO220-3 |
2,861 | 0.00 |
RFQ |
Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 650mOhm @ 5.1A, 10V | 3.9V @ 470µA | 60 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
SPP80N06S08NKMOSFET N-CH 55V 80A TO220-3 |
2,489 | 0.00 |
RFQ |
Tube | Automotive, AEC-Q101, SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 8mOhm @ 80A, 10V | 4V @ 240µA | 187 nC @ 10 V | ±20V | 3660 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
|
IPW65R045C7300XKSA1MOSFET N-CH 650V 46A TO247 |
3,888 | 0.00 |
RFQ |
Tube | CoolMOS™ C7 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 45mOhm @ 24.9A, 10V | 4V @ 1.25mA | 93 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
IPB65R190C7ATMA1MOSFET N-CH 650V 13A D2PAK |
2,944 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ C7 | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tc) | 10V | 190mOhm @ 5.7A, 10V | 4V @ 290µA | 23 nC @ 10 V | ±20V | 1150 pF @ 400 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSL302SNH6327XTSA1MOSFET N-CH 30V 7.1A TSOP-6 |
2,307 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.1A (Ta) | 4.5V, 10V | 25mOhm @ 7.1A, 10V | 2V @ 30µA | 6.6 nC @ 5 V | ±20V | 750 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPI072N10N3GXKMOSFET N-CH 100V 80A TO262-3 |
3,437 | 0.00 |
RFQ |
Tube | OptiMOS™ 3 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 6V, 10V | 7.2mOhm @ 80A, 10V | 3.5V @ 90µA | 68 nC @ 10 V | ±20V | 4910 pF @ 50 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
|
|
SIHB33N60E-GE3MOSFET N-CH 600V D2PAK |
3,516 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
.jpg)
|
IPLU300N04S4R7XTMA2MOSFET N-CH 40V 300A 8HSOF |
2,562 | 0.00 |
RFQ |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 0.76mOhm @ 100A, 10V | 4V @ 230µA | 287 nC @ 10 V | ±20V | 22945 pF @ 25 V | - | 429W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
IRF100P218XKMA1MOSFET N-CH 100V 209A TO247AC |
2,874 | 0.00 |
RFQ |
Datasheet |
Tube | StrongIRFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 209A (Tc) | 6V, 10V | 1.28mOhm @ 100A, 10V | 3.8V @ 278µA | 555 nC @ 10 V | ±20V | 25000 pF @ 50 V | - | 556W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF100P219XKMA1MOSFET N-CH 100V TO247AC |
2,137 | 0.00 |
RFQ |
Datasheet |
Tube | StrongIRFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 203A (Tc) | 6V, 10V | 1.7mOhm @ 100A, 10V | 3.8V @ 278µA | 270 nC @ 10 V | ±20V | 12020 pF @ 50 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF150P220XKMA1MOSFET N-CH 150V 203A TO247-3 |
2,067 | 0.00 |
RFQ |
Datasheet |
Tube | StrongIRFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 203A (Tc) | 10V | 2.7mOhm @ 100A, 10V | 4.6V @ 265µA | 200 nC @ 10 V | ±20V | 12000 pF @ 75 V | - | 556W (Tc) | -55°C ~ 175°C | Through Hole |
|
|
IRF150P221XKMA1MOSFET N-CH 150V 186A TO247-3 |
3,921 | 0.00 |
RFQ |
Datasheet |
Tube | StrongIRFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 186A (Tc) | 10V | 4.5mOhm @ 100A, 10V | 4.6V @ 264µA | 100 nC @ 10 V | ±20V | 6000 pF @ 75 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
