| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

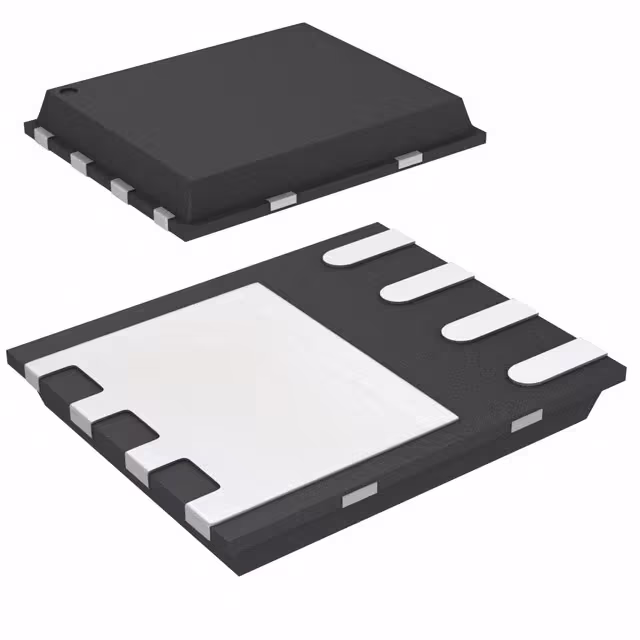

IRFH5255TR2PBFMOSFET N-CH 25V 15A 8VQFN |
2,751 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 15A (Ta), 51A (Tc) | - | 6mOhm @ 15A, 10V | 2.35V @ 25µA | 14.5 nC @ 10 V | - | 988 pF @ 13 V | - | - | - | Surface Mount |
|
IRFH5302DTR2PBFMOSFET N-CH 30V 29A 8VQFN |
2,659 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 29A (Ta), 100A (Tc) | - | 2.5mOhm @ 50A, 10V | 2.35V @ 100µA | 55 nC @ 10 V | - | 3635 pF @ 25 V | - | - | - | Surface Mount |
|
|
IRFH5304TR2PBFMOSFET N-CH 30V 22A 8VQFN |
3,040 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 79A (Tc) | - | 4.5mOhm @ 47A, 10V | 2.35V @ 50µA | 41 nC @ 10 V | - | 2360 pF @ 10 V | - | - | - | Surface Mount |
|
IRLH5030TR2PBFMOSFET N-CH 100V 13A 8PQFN |
3,223 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta), 100A (Tc) | - | 9mOhm @ 50A, 10V | 2.5V @ 150µA | 94 nC @ 10 V | - | 5185 pF @ 50 V | - | - | - | Surface Mount |
|
IPA60R520C6XKSA1MOSFET N-CH 600V 8.1A TO220-FP |
112,389 | 0.65 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 8.1A (Tc) | 10V | 520mOhm @ 2.8A, 10V | 3.5V @ 230µA | 23.4 nC @ 10 V | ±20V | 512 pF @ 100 V | - | 29W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPB120N06S402ATMA1MOSFET N-CH 60V 120A TO263-3 |
3,894 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | OptiMOS™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.4mOhm @ 100A, 10V | 4V @ 140µA | 195 nC @ 10 V | ±20V | 15750 pF @ 25 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPB120N06S403ATMA1MOSFET N-CH 60V 120A TO263-3 |
2,514 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | OptiMOS™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.8mOhm @ 100A, 10V | 4V @ 120µA | 160 nC @ 10 V | ±20V | 13150 pF @ 25 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPB120N06S4H1ATMA1MOSFET N-CH 60V 120A TO263-3 |
2,889 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.1mOhm @ 100A, 10V | 4V @ 200µA | 270 nC @ 10 V | ±20V | 21900 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSB019N03LX GMOSFET N-CH 30V 32A/174A 2WDSON |
2,545 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 32A (Ta), 174A (Tc) | 4.5V, 10V | 1.9mOhm @ 30A, 10V | 2.2V @ 250µA | 92 nC @ 10 V | ±20V | 8400 pF @ 15 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSB024N03LX GMOSFET N-CH 30V 27A/145A 2WDSON |
3,171 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Ta), 145A (Tc) | 4.5V, 10V | 2.4mOhm @ 30A, 10V | 2.2V @ 250µA | 72 nC @ 10 V | ±20V | 4900 pF @ 15 V | - | 2.8W (Ta), 78W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSB053N03LP GMOSFET N-CH 30V 17A/71A 2WDSON |
2,219 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 17A (Ta), 71A (Tc) | 4.5V, 10V | 5.3mOhm @ 30A, 10V | 2.2V @ 250µA | 29 nC @ 10 V | ±20V | 2700 pF @ 15 V | - | 2.3W (Ta), 42W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSF053N03LT GMOSFET N-CH 30V 16A/71A 2WDSON |
3,583 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 71A (Tc) | 4.5V, 10V | 5.3mOhm @ 30A, 10V | 2.2V @ 250µA | 29 nC @ 10 V | ±20V | 2700 pF @ 15 V | - | 2.2W (Ta), 42W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSF083N03LQ GMOSFET N-CH 30V 13A/53A 2WDSON |
3,258 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 53A (Tc) | 4.5V, 10V | 8.3mOhm @ 20A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±20V | 1800 pF @ 15 V | - | 2.2W (Ta), 36W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
BSS126H6327XTSA1MOSFET N-CH 600V 21MA SOT23-3 |
3,539 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 21mA (Ta) | 0V, 10V | 500Ohm @ 16mA, 10V | 1.6V @ 8µA | 2.1 nC @ 5 V | ±20V | 28 pF @ 25 V | Depletion Mode | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS127H6327XTSA1MOSFET N-CH 600V 21MA SOT23-3 |
3,922 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 21mA (Ta) | 4.5V, 10V | 500Ohm @ 16mA, 10V | 2.6V @ 8µA | 1 nC @ 10 V | ±20V | 28 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS159NH6327XTSA1MOSFET N-CH 60V 230MA SOT23-3 |
2,992 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 0V, 10V | 3.5Ohm @ 160mA, 10V | 2.4V @ 26µA | 2.9 nC @ 5 V | ±20V | 44 pF @ 25 V | Depletion Mode | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS314PEL6327HTSA1MOSFET P-CH 30V 1.5A SOT23-3 |
3,193 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 140mOhm @ 1.5A, 10V | 2V @ 6.3µA | 2.9 nC @ 10 V | ±20V | 294 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS806NL6327HTSA1MOSFET N-CH 20V 2.3A SOT23-3 |
2,989 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 1.8V, 2.5V | 57mOhm @ 2.3A, 2.5V | 750mV @ 11µA | 1.7 nC @ 2.5 V | ±8V | 529 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS816NW L6327MOSFET N-CH 20V 1.4A SOT323-3 |
3,367 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.4A (Ta) | 1.8V, 2.5V | 160mOhm @ 1.4A, 2.5V | 750mV @ 3.7µA | 0.6 nC @ 2.5 V | ±8V | 180 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSZ120P03NS3EGATMA1MOSFET P-CH 30V 11A/40A 8TSDSON |
3,870 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | OptiMOS™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 40A (Tc) | 6V, 10V | 12mOhm @ 20A, 10V | 3.1V @ 73µA | 45 nC @ 10 V | ±25V | 3360 pF @ 15 V | - | 2.1W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
