| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF6722MTRPBFMOSFET N-CH 30V 13A DIRECTFET |
3,153 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 56A (Tc) | 4.5V, 10V | 7.7mOhm @ 13A, 10V | 2.4V @ 50µA | 17 nC @ 4.5 V | ±20V | 1300 pF @ 15 V | - | 2.3W (Ta), 42W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRF6710S2TRPBFMOSFET N-CH 25V 12A DIRECTFET |
2,401 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 12A (Ta), 37A (Tc) | 4.5V, 10V | 5.9mOhm @ 12A, 10V | 2.4V @ 25µA | 13 nC @ 4.5 V | ±20V | 1190 pF @ 13 V | - | 1.8W (Ta), 15W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

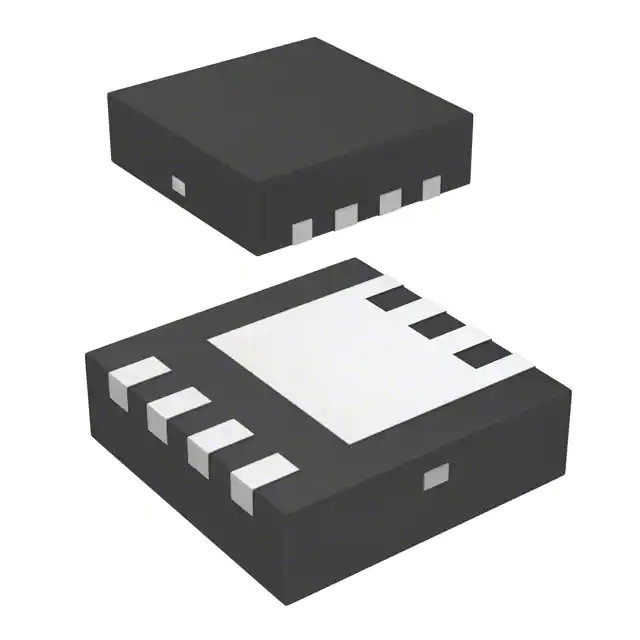

BSZ042N04NSGATMA1MOSFET N-CH 40V 40A TSDSON-8 |
2,227 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 10V | 4.2mOhm @ 20A, 10V | 4V @ 36µA | 46 nC @ 10 V | ±20V | 3700 pF @ 20 V | - | 2.1W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSZ105N04NSGATMA1MOSFET N-CH 40V 11A/40A 8TSDSON |
3,977 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 11A (Ta), 40A (Tc) | 10V | 10.5mOhm @ 20A, 10V | 4V @ 14µA | 17 nC @ 10 V | ±20V | 1300 pF @ 20 V | - | 2.1W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSZ165N04NSGATMA1MOSFET N-CH 40V 8.9A/31A TSDSON |
3,202 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 8.9A (Ta), 31A (Tc) | 10V | 16.5mOhm @ 20A, 10V | 4V @ 10µA | 10 nC @ 10 V | ±20V | 840 pF @ 20 V | - | 2.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BS7067N06LS3GMOSFET N-CH 60V 14A/20A 8TSDSON |
2,079 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta), 20A (Tc) | 4.5V, 10V | 6.7mOhm @ 20A, 10V | 2.2V @ 35µA | 62 nC @ 10 V | ±20V | 4800 pF @ 30 V | - | 2.1W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSZ076N06NS3GATMA1MOSFET N-CH 60V 20A 8TSDSON |
2,788 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 10V | 7.6mOhm @ 20A, 10V | 4V @ 35µA | 50 nC @ 10 V | ±20V | 4000 pF @ 30 V | - | 2.1W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPA90R1K2C3XKSA1MOSFET N-CH 900V 5.1A TO220-FP |
2,546 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 5.1A (Tc) | 10V | 1.2Ohm @ 2.8A, 10V | 3.5V @ 310µA | 28 nC @ 10 V | ±20V | 710 pF @ 100 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW90R120C3FKSA1MOSFET N-CH 900V 36A TO247-3 |
3,802 | 0.00 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 36A (Tc) | 10V | 120mOhm @ 26A, 10V | 3.5V @ 2.9mA | 270 nC @ 10 V | ±20V | 6800 pF @ 100 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF7703TRPBFMOSFET P-CH 40V 6A 8TSSOP |
2,214 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta) | 4.5V, 10V | 28mOhm @ 6A, 10V | 3V @ 250µA | 62 nC @ 4.5 V | ±20V | 5220 pF @ 25 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFS3006-7PPBFMOSFET N-CH 60V 240A D2PAK |
2,994 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 10V | 2.1mOhm @ 168A, 10V | 4V @ 250µA | 300 nC @ 10 V | ±20V | 8850 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFS3006PBFMOSFET N-CH 60V 195A D2PAK |
3,395 | 0.00 |
RFQ |
Datasheet |
Tube,Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 10V | 2.5mOhm @ 170A, 10V | 4V @ 250µA | 300 nC @ 10 V | ±20V | 8970 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS3107-7PPBFMOSFET N-CH 75V 240A D2PAK |
3,996 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 240A (Tc) | 10V | 2.6mOhm @ 160A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 9200 pF @ 50 V | - | 370W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS3107PBFMOSFET N-CH 75V 195A D2PAK |
3,793 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 75 V | 195A (Tc) | 10V | 3mOhm @ 140A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 9370 pF @ 50 V | - | 370W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS4010-7PPBFMOSFET N-CH 100V 190A D2PAK |
2,977 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 100 V | 190A (Tc) | 10V | 4mOhm @ 110A, 10V | 4V @ 250µA | 230 nC @ 10 V | ±20V | 9830 pF @ 50 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS4010PBFMOSFET N-CH 100V 180A D2PAK |
3,506 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 4.7mOhm @ 106A, 10V | 4V @ 250µA | 215 nC @ 10 V | ±20V | 9575 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF7706GTRPBFMOSFET P-CH 30V 7A 8TSSOP |
2,601 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 4.5V, 10V | 22mOhm @ 7A, 10V | 2.5V @ 250µA | 72 nC @ 10 V | ±20V | 2211 pF @ 25 V | - | 1.51W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF7707GTRPBFMOSFET P-CH 20V 7A 8TSSOP |
2,484 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 7A (Ta) | 2.5V, 4.5V | 22mOhm @ 7A, 4.5V | 1.2V @ 250µA | 47 nC @ 4.5 V | ±12V | 2361 pF @ 15 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF8252TRPBFMOSFET N-CH 25V 25A 8SO |
2,620 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 25A (Ta) | 4.5V, 10V | 2.7mOhm @ 25A, 10V | 2.35V @ 100µA | 53 nC @ 4.5 V | ±20V | 5305 pF @ 13 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF7704GTRPBFMOSFET P-CH 40V 4.6A 8TSSOP |
3,645 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 4.6A (Ta) | 4.5V, 10V | 46mOhm @ 4.6A, 10V | 3V @ 250µA | 38 nC @ 4.5 V | ±20V | 3150 pF @ 25 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
