| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPI21N50C3XKSA1MOSFET N-CH 560V 21A TO262-3 |
3,002 | 3.55 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 560 V | 21A (Tc) | 10V | 190mOhm @ 13.1A, 10V | 3.9V @ 1mA | 95 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
AUIRF2804STRL7PMOSFET N-CH 40V 240A D2PAK |
3,648 | 3.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1.6mOhm @ 160A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 6930 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFS8408-7TRLMOSFET N-CH 40V 240A D2PAK |
3,449 | 3.57 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 1mOhm @ 100A, 10V | 3.9V @ 250µA | 315 nC @ 10 V | ±20V | 10250 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPB65R125C7ATMA2MOSFET N-CH 650V 18A TO263-3 |
2,299 | 3.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 125mOhm @ 8.9A, 10V | 4V @ 440µA | 35 nC @ 10 V | ±20V | 1670 pF @ 400 V | - | 101W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

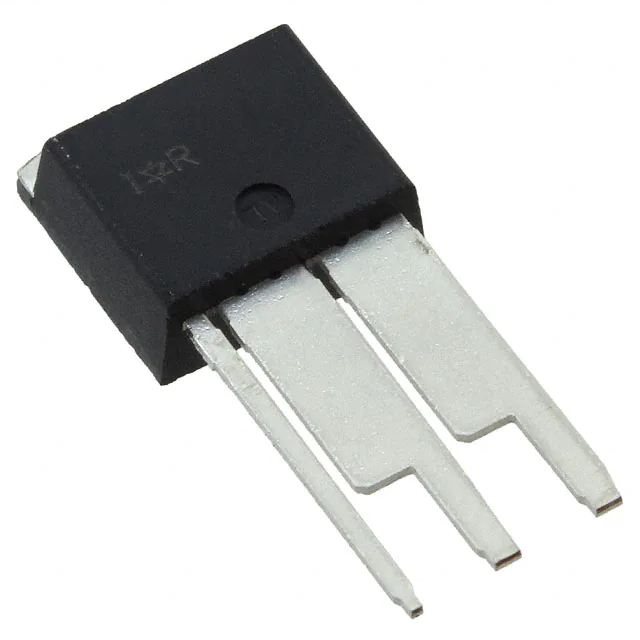

AUIRF1324WLMOSFET N-CH 24V 240A TO262-3 |
2,440 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 240A (Tc) | 10V | 1.3mOhm @ 195A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 7630 pF @ 19 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SPA15N60CFDXKSA1MOSFET N-CH 650V 13.4A TO220-FP |
2,366 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 13.4A (Tc) | 10V | 330mOhm @ 9.4A, 10V | 5V @ 750µA | 84 nC @ 10 V | ±20V | 1820 pF @ 25 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SPP15N60CFDXKSA1LOW POWER_LEGACY |
2,876 | 3.67 |
RFQ |
Datasheet |
Tube | * | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPP024N06N3GXKSA1MOSFET N-CH 60V 120A TO220-3 |
400 | 2.48 |
RFQ |
Datasheet |
Bulk,Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.4mOhm @ 100A, 10V | 4V @ 196µA | 275 nC @ 10 V | ±20V | 23000 pF @ 30 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPB025N10N3GE8187ATMA1MOSFET N-CH 100V 180A TO263-7 |
3,127 | 3.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | OptiMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 6V, 10V | 2.5mOhm @ 100A, 10V | 3.5V @ 275µA | 206 nC @ 10 V | ±20V | 14800 pF @ 50 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPI111N15N3GAKSA1MOSFET N-CH 150V 83A TO262-3 |
2,521 | 3.72 |
RFQ |
Datasheet |
Bulk,Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 83A (Tc) | 8V, 10V | 11.1mOhm @ 83A, 10V | 4V @ 160µA | 55 nC @ 10 V | ±20V | 3230 pF @ 75 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPB60R105CFD7ATMA1MOSFET N-CH 650V 21A TO263-3-2 |
2,854 | 3.65 |
RFQ |
Datasheet |
Tape & Reel (TR) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 21A (Tc) | 10V | 105mOhm @ 9.3A, 10V | 4.5V @ 470µA | 42 nC @ 10 V | ±20V | 1752 pF @ 400 V | - | 106W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
AUIRF1324STRLMOSFET N-CH 24V 195A D2PAK |
3,634 | 3.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 195A (Tc) | 10V | 1.65mOhm @ 195A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 7590 pF @ 24 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPT65R099CFD7XTMA1MOSFET N-CH 650V 8HSOF |
3,448 | 3.76 |
RFQ |
Tape & Reel (TR) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
|
IPB180N04S302ATMA1MOSFET N-CH 40V 180A TO263-7 |
2,962 | 5.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 10V | 1.5mOhm @ 80A, 10V | 4V @ 230µA | 210 nC @ 10 V | ±20V | 14300 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPC30S2SN08NX2MA1MV POWER MOS |
2,651 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPP120N10S403AKSA1MOSFET N-CH 100V 120A TO220-3 |
7,417 | 2.58 |
RFQ |
Datasheet |
Bulk,Tube | Automotive, AEC-Q101, OptiMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 3.9mOhm @ 100A, 10V | 3.5V @ 180µA | 140 nC @ 10 V | ±20V | 10120 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPB120N08S403ATMA1MOSFET N-CH 80V 120A TO263-3 |
3,114 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive, AEC-Q101, OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 2.5mOhm @ 100A, 10V | 4V @ 223µA | 167 nC @ 10 V | ±20V | 11550 pF @ 25 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRF2903ZSTRLMOSFET N-CH 30V 160A D2PAK |
3,779 | 3.91 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 160A (Tc) | 10V | 2.4mOhm @ 75A, 10V | 4V @ 150µA | 240 nC @ 10 V | ±20V | 6320 pF @ 25 V | - | 231W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFSL4127PBFMOSFET N-CH 200V 72A TO262 |
3,778 | 3.92 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 72A (Tc) | - | 22mOhm @ 44A, 10V | 5V @ 250µA | 150 nC @ 10 V | - | 5380 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
AUIRF2804STRLMOSFET N-CH 40V 195A D2PAK |
2,221 | 3.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 2mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
