| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZVP2110AMOSFET P-CH 100V 230MA TO92-3 |
3,949 | 0.95 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 230mA (Ta) | 10V | 8Ohm @ 375mA, 10V | 3.5V @ 1mA | - | ±20V | 100 pF @ 25 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMNH6012SPSQ-13MOSFET N-CH 60V 50A PWRDI5060-8 |
2,888 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 11mOhm @ 50A, 10V | 4V @ 250µA | 35.2 nC @ 10 V | ±20V | 1926 pF @ 30 V | - | 1.6W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMTH4004SCTBQ-13MOSFET N-CH 40V 100A TO263AB |
700 | 1.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 3mOhm @ 100A, 10V | 4V @ 250µA | 68.6 nC @ 10 V | ±20V | 4305 pF @ 25 V | - | 4.7W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMN90H8D5HCTMOSFET N-CH 900V 2.5A TO220AB |
2,169 | 1.23 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 2.5A (Tc) | 10V | 7Ohm @ 1A, 10V | 5V @ 250µA | 7.9 nC @ 10 V | ±30V | 470 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMN95H8D5HCTIMOSFET N-CHANNEL 950V ITO220AB |
3,684 | 1.38 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 2.5A (Tc) | 10V | 7Ohm @ 1A, 10V | 5V @ 250µA | 7.9 nC @ 10 V | ±30V | 470 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMTH6004SCTB-13MOSFET N-CH 60V 100A TO263AB |
3,209 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 3.4mOhm @ 100A, 10V | 4V @ 250µA | 95.4 nC @ 10 V | ±20V | 4556 pF @ 30 V | - | 4.7W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMTH10H010LCTMOSFET N-CH 100V 108A TO220AB |
2,321 | 1.70 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 108A (Tc) | 10V | 9.5mOhm @ 13A, 10V | 3.5V @ 250µA | 53.7 nC @ 10 V | ±20V | 2592 pF @ 50 V | - | 2.4W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
DMTH6010SCTMOSFET N-CH 60V 100A TO220-3 |
2,870 | 1.72 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 7.2mOhm @ 20A, 10V | 4V @ 250µA | 36.3 nC @ 10 V | ±20V | 1940 pF @ 30 V | - | 2.8W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
ZVN4306AMOSFET N-CH 60V 1.1A TO92-3 |
3,527 | 1.74 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.1A (Ta) | 5V, 10V | 330mOhm @ 3A, 10V | 3V @ 1mA | - | ±20V | 350 pF @ 25 V | - | 850mW (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
ZVP0545AMOSFET P-CH 450V 45MA TO92-3 |
3,200 | 1.75 |
RFQ |
Datasheet |
Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 450 V | 45mA (Ta) | 10V | 150Ohm @ 50mA, 10V | 4.5V @ 1mA | - | ±20V | 120 pF @ 25 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
ZVN0545AMOSFET N-CH 450V 90MA TO92-3 |
3,724 | 1.80 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 450 V | 90mA (Ta) | 10V | 50Ohm @ 100mA, 10V | 3V @ 1mA | - | ±20V | 70 pF @ 25 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMTH6004SCTBQ-13MOSFET N-CH 60V 100A TO263AB |
2,598 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 3.4mOhm @ 100A, 10V | 4V @ 250µA | 95.4 nC @ 10 V | ±20V | 4556 pF @ 30 V | - | 4.7W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMT6004SCTMOSFET N-CH 60V 100A TO220-3 |
3,599 | 2.08 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 3.65mOhm @ 100A, 10V | 4V @ 250µA | 95.4 nC @ 10 V | ±20V | 4556 pF @ 30 V | - | 2.3W (Ta), 113W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMT10H010LCTMOSFET N-CH 100V 98A TO220AB |
2,870 | 1.77 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 98A (Tc) | 4.5V, 10V | 9.5mOhm @ 13A, 10V | 3V @ 250µA | 71 nC @ 10 V | ±20V | 3000 pF @ 50 V | - | 2W (Ta), 139W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
DMN3021LFDF-7MOSFET N-CH 30V 11.8A 6UDFN |
3,200 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.8A (Ta) | 4.5V, 10V | 15mOhm @ 7A, 10V | 2.2V @ 250µA | 14 nC @ 10 V | ±20V | 706 pF @ 15 V | - | 2.03W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2075UDW-7MOSFET N-CH 20V 2.8A SOT363 |
2,421 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 1.5V, 4.5V | 48mOhm @ 3A, 4.5V | 1V @ 250µA | 7 nC @ 4.5 V | ±8V | 594.3 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3051LDM-7MOSFET N-CH 30V 4A SOT26 |
2,818 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4.5V, 10V | 38mOhm @ 6A, 10V | 2.2V @ 250µA | 8.6 nC @ 10 V | ±20V | 424 pF @ 5 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

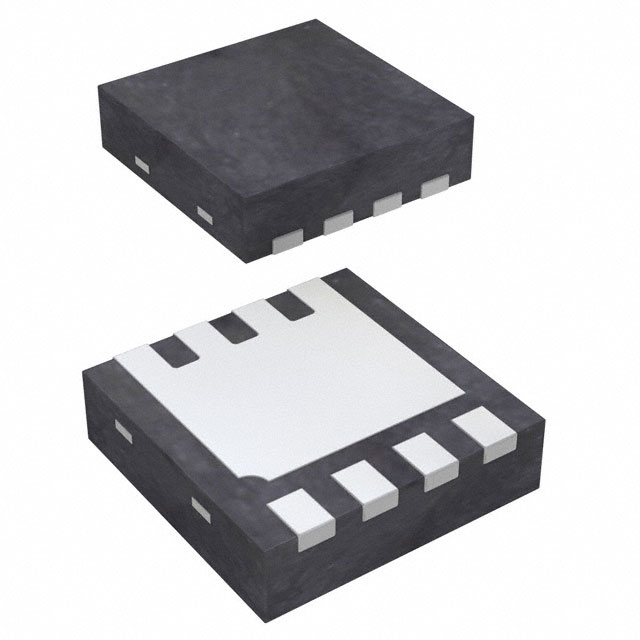

DMT3006LDK-7MOSFET N-CH 30V 17.1A/46.2A 8DFN |
3,838 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 17.1A (Ta), 46.2A (Tc) | 4.5V, 10V | 6.5mOhm @ 12A, 10V | 3V @ 250µA | 22.6 nC @ 10 V | ±20V | 1320 pF @ 15 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN6A07FQTAMOSFET N-CH 60V 1.2A SOT23 |
2,835 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.2A (Ta) | 4.5V, 10V | 250mOhm @ 1.8A, 10V | 3V @ 250µA | 3.2 nC @ 10 V | ±20V | 166 pF @ 40 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN62D0UT-7MOSFET N-CH 60V 0.32A SOT523 |
3,586 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 320mA (Ta) | 1.8V, 2.5V, 4.5V | 2Ohm @ 50mA, 4.5V | 1V @ 250A | 0.5 nC @ 4.5 V | ±20V | 32 pF @ 30 V | - | 230mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
