| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMP2067LVT-7MOSFET P-CH 20V 4.2A TSOT26 |
2,395 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 2.5V, 4.5V | 45mOhm @ 4.5A, 4.5V | 1.5V @ 250µA | 28 nC @ 8 V | ±8V | 1575 pF @ 10 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG4496SSS-13MOSFET N-CH 30V 10A 8SOP |
3,242 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 21.5mOhm @ 10A, 10V | 2V @ 250µA | 10.2 nC @ 10 V | ±25V | 493.5 pF @ 15 V | - | 1.42W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG4466SSS-13MOSFET N-CH 30V 10A 8SOP |
2,309 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 23mOhm @ 10A, 10V | 2.4V @ 250µA | 17 nC @ 10 V | ±25V | 478.9 pF @ 15 V | - | 1.42W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN1019UVT-7MOSFET N-CH 12V 10.7A TSOT26 |
3,363 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 10.7A (Ta) | 1.2V, 4.5V | 10mOhm @ 9.7A, 4.5V | 800mV @ 250µA | 50.4 nC @ 8 V | ±8V | 2588 pF @ 10 V | - | 1.73W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN1019USN-7MOSFET N-CH 12V 9.3A SC59 |
2,323 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 9.3A (Ta) | 1.2V, 2.5V | 10mOhm @ 9.7A, 4.5V | 800mV @ 250µA | 50.6 nC @ 8 V | ±8V | 2426 pF @ 10 V | - | 680mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2300U-7MOSFET N-CH 20V 1.24A SOT23 |
2,113 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.24A (Ta) | 1.8V, 4.5V | 175mOhm @ 300mA, 4.5V | 950mV @ 250µA | 1.6 nC @ 4.5 V | ±8V | 64.3 pF @ 25 V | - | 430mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3300U-7MOSFET N-CH 30V 2A SOT23-3 |
3,585 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 1.5V, 4.5V | 150mOhm @ 4.5A, 4.5V | 1V @ 250µA | - | ±12V | 193 pF @ 10 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN6070SFCL-7MOSFET N-CH 60V 3A X1-DFN1616-6 |
3,587 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 4V, 10V | 85mOhm @ 1.5A, 10V | 3V @ 250µA | 12.3 nC @ 10 V | ±20V | 606 pF @ 20 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP2018LFK-7MOSFET P-CH 20V 9.2A 6UDFN |
3,128 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 9.2A (Ta) | 1.5V, 4.5V | 16mOhm @ 3.6A, 4.5V | 1.2V @ 200µA | 113 nC @ 10 V | ±12V | 4748 pF @ 10 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3028LQ-7MOSFET BVDSS: 25V~30V,SOT23,T&R |
74,744 | 74744.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.2A (Ta) | 2.5V, 10V | 25mOhm @ 4A, 10V | 1.8V @ 250µA | 10.9 nC @ 10 V | ±20V | 680 pF @ 15 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | |
|

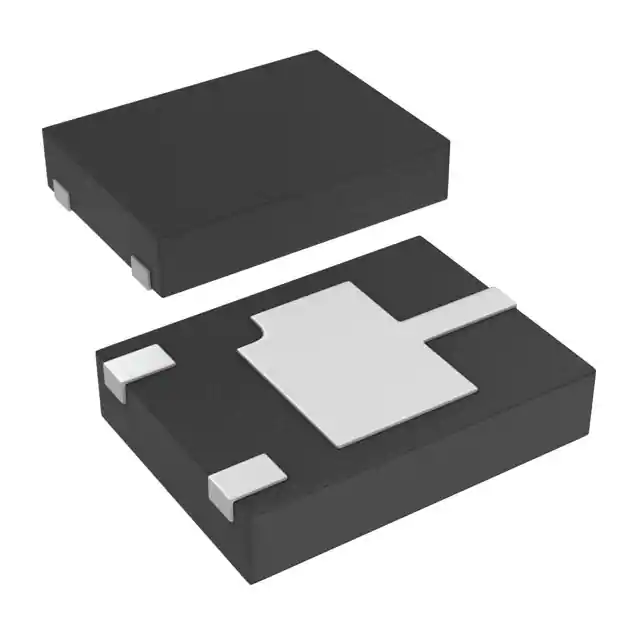

DMP1045UFY4-7MOSFET P-CH 12V 5.5A DFN2015H4-3 |
3,799 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 5.5A (Ta) | 1.8V, 4.5V | 32mOhm @ 4A, 4.5V | 1V @ 250µA | 23.7 nC @ 8 V | ±8V | 1291 pF @ 10 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3150LW-7MOSFET N-CH 28V 1.6A SOT323 |
3,205 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 28 V | 1.6A (Ta) | 2.5V, 4.5V | 88mOhm @ 1.6A, 4.5V | 1.4V @ 250µA | - | ±12V | 305 pF @ 5 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2028UFDF-7MOSFET N-CH 20V 7.9A 6UDFN |
3,120 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.9A (Ta) | 1.5V, 4.5V | 25mOhm @ 4A, 4.5V | 1V @ 250µA | 18 nC @ 8 V | ±8V | 907 pF @ 10 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3033LSN-7MOSFET N-CH 30V 6A SC59-3 |
3,719 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 30mOhm @ 6A, 10V | 2.1V @ 250µA | 10.5 nC @ 5 V | ±20V | 755 pF @ 10 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3050LVT-7MOSFET P CH 30V 4.5A TSOT26 |
2,860 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4.5V, 10V | 50mOhm @ 4.5A, 10V | 2V @ 250µA | 10.5 nC @ 10 V | ±25V | 620 pF @ 15 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN10H220LK3-13MOSFET N-CH 100V 7.5A TO252 |
2,227 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.5A (Tc) | 4.5V, 10V | 220mOhm @ 2A, 10V | 2.5V @ 250µA | 6.7 nC @ 10 V | ±20V | 384 pF @ 25 V | - | 18.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3016LFDF-7MOSFET N-CH 30V 12A 6UDFN |
2,452 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 12mOhm @ 11A, 10V | 2V @ 250µA | 25.1 nC @ 10 V | ±20V | 1415 pF @ 15 V | - | 2.02W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN6040SSS-13MOSFET N-CH 60V 5.5A 8SO |
2,817 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.5A (Ta) | 4.5V, 10V | 40mOhm @ 4.5A, 10V | 3V @ 250µA | 22.4 nC @ 10 V | ±20V | 1287 pF @ 25 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN66D0LT-7MOSFET N-CH 60V 115MA SOT-523 |
3,919 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 5Ohm @ 115mA, 10V | 2V @ 250µA | - | ±20V | 23 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3730UFB-7MOSFET N-CH 30V 750MA 3DFN |
3,339 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 750mA (Ta) | 1.8V, 4.5V | 460mOhm @ 200mA, 4.5V | 950mV @ 250µA | 1.6 nC @ 4.5 V | ±8V | 64.3 pF @ 25 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
