| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH72N30X3MOSFET N-CH 300V 72A TO247 |
3,590 | 12.13 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 72A (Tc) | 10V | 19mOhm @ 36A, 10V | 4.5V @ 1.5mA | 82 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFQ140N20X3MOSFET N-CH 200V 140A TO3P |
2,827 | 12.21 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 140A (Tc) | 10V | 9.6mOhm @ 70A, 10V | 4.5V @ 4mA | 127 nC @ 10 V | ±20V | 7660 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

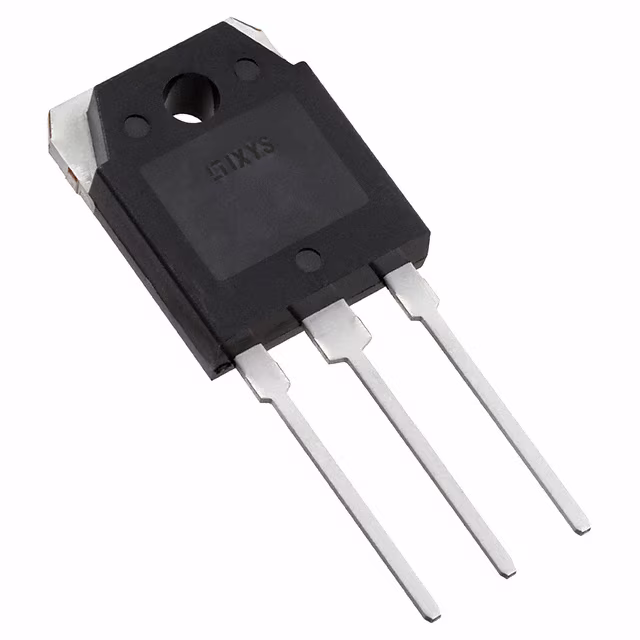

IXFQ120N25X3MOSFET N-CHANNEL 250V 120A TO3P |
2,218 | 12.21 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7870 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTH62N65X2MOSFET N-CH 650V 62A TO247 |
2,320 | 12.24 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 62A (Tc) | 10V | 52mOhm @ 31A, 10V | 4.5V @ 4mA | 104 nC @ 10 V | ±30V | 5940 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH88N30PMOSFET N-CH 300V 88A TO247 |
2,947 | 12.25 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 88A (Tc) | 10V | 40mOhm @ 44A, 10V | 5V @ 250µA | 180 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH120N20PMOSFET N-CH 200V 120A TO247AD |
2,035 | 12.31 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | 10V | 22mOhm @ 500mA, 10V | 5V @ 4mA | 152 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFH170N10PMOSFET N-CH 100V 170A TO247AD |
2,851 | 12.31 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170A (Tc) | 10V | 9mOhm @ 500mA, 10V | 5V @ 4mA | 198 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 715W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFK44N50PMOSFET N-CH 500V 44A TO264AA |
2,186 | 12.50 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 140mOhm @ 22A, 10V | 5V @ 4mA | 98 nC @ 10 V | ±30V | 5440 pF @ 25 V | - | 658W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH60N65X2MOSFET N-CH 650V 60A TO247 |
2,488 | 12.60 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 60A (Tc) | 10V | 52mOhm @ 30A, 10V | 5.5V @ 4mA | 107 nC @ 10 V | ±30V | 6180 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH69N30PMOSFET N-CH 300V 69A TO247AD |
3,883 | 12.68 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 69A (Tc) | 10V | 49mOhm @ 500mA, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 4960 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH130N15X4MOSFET N-CH 150V 130A TO247 |
2,101 | 12.75 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 8.5mOhm @ 70A, 10V | 4.5V @ 250µA | 87 nC @ 10 V | ±20V | 4770 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH24N80PMOSFET N-CH 800V 24A TO247AD |
2,653 | 12.79 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 24A (Tc) | 10V | 400mOhm @ 12A, 10V | 5V @ 4mA | 105 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 650W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH6N120MOSFET N-CH 1200V 6A TO247 |
3,404 | 12.95 |
RFQ |
Datasheet |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.6Ohm @ 3A, 10V | 5V @ 250µA | 56 nC @ 10 V | ±20V | 1950 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH20N100PMOSFET N-CH 1000V 20A TO247AD |
2,441 | 13.02 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 20A (Tc) | 10V | 570mOhm @ 10A, 10V | 6.5V @ 1mA | 126 nC @ 10 V | ±30V | 7300 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

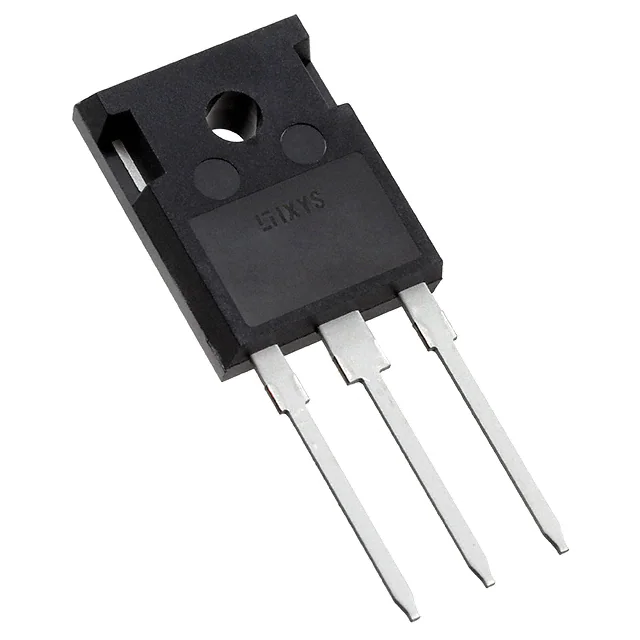

IXFH120N25X3MOSFET N-CH 250V 120A TO247 |
2,105 | 13.44 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7870 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXFH140N20X3MOSFET N-CH 200V 140A TO247 |
2,312 | 13.44 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 140A (Tc) | 10V | 9.6mOhm @ 70A, 10V | 4.5V @ 4mA | 127 nC @ 10 V | ±20V | 7660 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH80N65X2MOSFET N-CH 650V 80A TO247 |
2,238 | 13.89 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 80A (Tc) | 10V | 40mOhm @ 40A, 10V | 4.5V @ 4mA | 144 nC @ 10 V | ±30V | 7753 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH40N85XMOSFET N-CH 850V 40A TO247 |
3,038 | 13.98 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 40A (Tc) | 10V | 145mOhm @ 500mA, 10V | 5.5V @ 4mA | 98 nC @ 10 V | ±30V | 3700 pF @ 25 V | - | 860W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK64N60P3MOSFET N-CH 600V 64A TO264AA |
3,256 | 14.14 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 64A (Tc) | 10V | 95mOhm @ 32A, 10V | 5V @ 4mA | 145 nC @ 10 V | ±30V | 9900 pF @ 25 V | - | 1130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK220N17T2MOSFET N-CH 170V 220A TO264AA |
2,857 | 14.21 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 170 V | 220A (Tc) | 10V | 6.3mOhm @ 60A, 10V | 5V @ 8mA | 500 nC @ 10 V | ±20V | 31000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
