| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSD16570Q5BTMOSFET N-CH 25V 100A 8VSON |
3,120 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 100A (Ta) | 4.5V, 10V | 0.59mOhm @ 50A, 10V | 1.9V @ 250µA | 250 nC @ 10 V | ±20V | 14000 pF @ 12 V | - | 3.2W (Ta), 195W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD19532Q5BTMOSFET N-CH 100V 100A 8VSON |
1,214 | 2.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 100A (Ta) | 6V, 10V | 4.9mOhm @ 17A, 10V | 3.2V @ 250µA | 62 nC @ 10 V | ±20V | 4810 pF @ 50 V | - | 3.1W (Ta), 195W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD18532Q5BTMOSFET N-CH 60V 100A 8VSON |
3,742 | 3.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4.5V, 10V | 3.2mOhm @ 25A, 10V | 2.2V @ 250µA | 58 nC @ 10 V | ±20V | 5070 pF @ 30 V | - | 3.2W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
CSD17575Q3TMOSFET N-CH 30V 60A 8VSON |
3,395 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Ta) | 4.5V, 10V | 2.3mOhm @ 25A, 10V | 1.8V @ 250µA | 30 nC @ 4.5 V | ±20V | 4420 pF @ 15 V | - | 2.8W (Ta), 108W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CSD19536KCSMOSFET N-CH 100V 150A TO220-3 |
3,316 | 5.44 |
RFQ |
Datasheet |
Tube | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 150A (Ta) | 6V, 10V | 2.7mOhm @ 100A, 10V | 3.2V @ 250µA | 153 nC @ 10 V | ±20V | 12000 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
CSD19532KTTTMOSFET N-CH 100V 200A DDPAK |
2,515 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Ta) | 6V, 10V | 5.6mOhm @ 90A, 10V | 3.2V @ 250µA | 57 nC @ 10 V | ±20V | 5060 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
CSD19536KTTTMOSFET N-CH 100V 200A DDPAK |
3,095 | 6.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Ta) | 6V, 10V | 2.4mOhm @ 100A, 10V | 3.2V @ 250µA | 153 nC @ 10 V | ±20V | 12000 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
CSD15380F3MOSFET N-CH 20V 500MA 3PICOSTAR |
1,100 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FemtoFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 2.8V, 8V | 1190mOhm @ 100mA, 8V | 1.35V @ 2.5µA | 0.281 nC @ 10 V | 10V | 10.5 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD13380F3MOSFET N-CH 12V 3.6A 3PICOSTAR |
3,022 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FemtoFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.6A (Ta) | 1.8V, 4.5V | 76mOhm @ 400mA, 4.5V | 1.3V @ 250µA | 1.2 nC @ 4.5 V | 8V | 156 pF @ 6 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CSD25481F4MOSFET P-CH 20V 2.5A 3PICOSTAR |
2,959 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 1.8V, 4.5V | 88mOhm @ 500mA, 8V | 1.2V @ 250µA | 0.913 nC @ 4.5 V | -12V | 189 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD23382F4MOSFET P-CH 12V 3.5A 3PICOSTAR |
3,034 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | FemtoFET™ | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 1.8V, 4.5V | 76mOhm @ 500mA, 4.5V | 1.1V @ 250µA | 1.35 nC @ 6 V | ±8V | 235 pF @ 6 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CSD23202W10MOSFET P-CH 12V 2.2A 4DSBGA |
2,434 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.2A (Ta) | 1.5V, 4.5V | 53mOhm @ 500mA, 4.5V | 900mV @ 250µA | 3.8 nC @ 4.5 V | -6V | 512 pF @ 6 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CSD25485F5MOSFET P-CH 20V 3.2A 3PICOSTAR |
3,444 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FemtoFET™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 1.8V, 8V | 35mOhm @ 900mA, 8V | 1.3V @ 250µA | 3.5 nC @ 4.5 V | -12V | 533 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CSD17579Q3AMOSFET N-CH 30V 20A 8VSON |
3,064 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta) | 4.5V, 10V | 10.2mOhm @ 8A, 10V | 1.9V @ 250µA | 15 nC @ 10 V | ±20V | 998 pF @ 15 V | - | 3.2W (Ta), 29W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

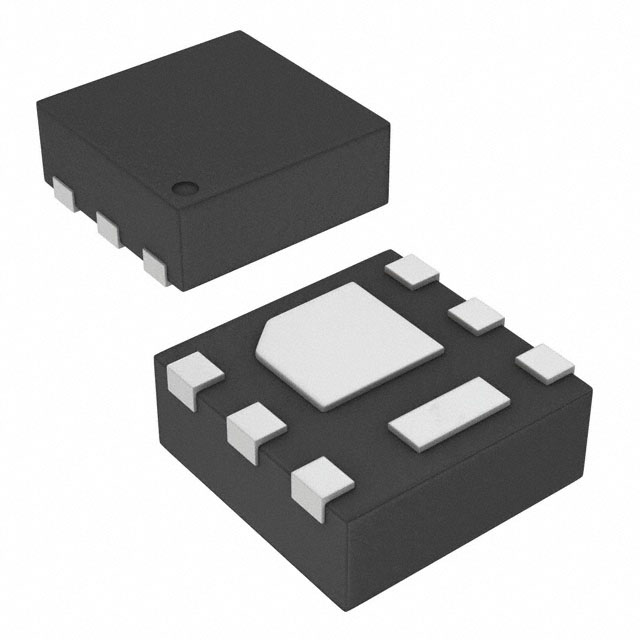

CSD19538Q2MOSFET N-CH 100V 14.4A 6WSON |
2,960 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14.4A (Ta) | 6V, 10V | 59mOhm @ 5A, 10V | 3.8V @ 250µA | 5.6 nC @ 10 V | ±20V | 454 pF @ 50 V | - | 2.5W (Ta), 20.2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CSD17551Q3AMOSFET N-CH 30V 12A 8SON |
3,635 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Tc) | 4.5V, 10V | 9mOhm @ 11A, 10V | 2.1V @ 250µA | 7.8 nC @ 4.5 V | ±20V | 1370 pF @ 15 V | - | 2.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD17507Q5AMOSFET N-CH 30V 13A/65A 8VSON |
3,155 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 65A (Tc) | 4.5V, 10V | 10.8mOhm @ 11A, 10V | 2.1V @ 250µA | 3.6 nC @ 4.5 V | ±20V | 530 pF @ 15 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD16412Q5AMOSFET N-CH 25V 14A/52A 8VSON |
2,601 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 14A (Ta), 52A (Tc) | 4.5V, 10V | 11mOhm @ 10A, 10V | 2.3V @ 250µA | 3.8 nC @ 4.5 V | +16V, -12V | 530 pF @ 12.5 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD18543Q3AMOSFET N-CH 60V 60A 8VSON |
2,828 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 4.5V, 10V | 9.9mOhm @ 12A, 10V | 2.7V @ 250µA | 14.5 nC @ 10 V | ±20V | 1150 pF @ 30 V | Standard | 66W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CSD18514Q5AMOSFET N-CH 40V 89A 8VSON |
3,040 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 89A (Tc) | 4.5V, 10V | 7.9mOhm @ 15A, 10V | 2.4V @ 250µA | - | ±20V | - | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
