| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF820APBF-BE3MOSFET N-CH 500V 2.5A TO220AB |
714 | 1.82 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.5A (Tc) | - | 3Ohm @ 1.5A, 10V | 4.5V @ 250µA | 17 nC @ 10 V | ±30V | 340 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF624PBF-BE3MOSFET N-CH 250V 4.4A TO220AB |
1,000 | 1.88 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 4.4A (Tc) | - | 1.1Ohm @ 2.6A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 260 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRL620PBF-BE3MOSFET N-CH 200V 5.2A TO220AB |
980 | 1.88 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 5.2A (Tc) | - | 800mOhm @ 3.1A, 5V | 2V @ 250µA | 16 nC @ 5 V | ±10V | 360 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF9Z34PBF-BE3MOSFET P-CH 60V 18A TO220AB |
123 | 1.92 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | - | 140mOhm @ 11A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±20V | 1100 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHP12N50E-BE3N-CHANNEL 500V |
1,000 | 1.95 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 10.5A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±30V | 886 pF @ 100 V | - | 114W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFZ34PBF-BE3MOSFET N-CH 60V 30A TO220AB |
921 | 1.97 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | - | 50mOhm @ 18A, 10V | 4V @ 250µA | 46 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFZ20PBF-BE3MOSFET N-CH 50V 15A TO220AB |
671 | 1.99 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 15A (Tc) | - | 100mOhm @ 10A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF9Z24PBF-BE3MOSFET P-CH 60V 11A TO220AB |
953 | 2.03 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | - | 280mOhm @ 6.6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFBE30PBF-BE3MOSFET N-CH 800V 4.1A TO220AB |
944 | 2.35 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.1A (Tc) | - | 3Ohm @ 2.5A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRL630PBF-BE3MOSFET N-CH 200V 9A TO220AB |
1,000 | 2.46 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 9A (Tc) | - | 400mOhm @ 5.4A, 5V | 2V @ 250µA | 40 nC @ 10 V | ±10V | 1100 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHP14N60E-BE3N-CHANNEL 600V |
995 | 2.48 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 309mOhm @ 7A, 10V | 4V @ 250µA | 64 nC @ 10 V | ±30V | 1205 pF @ 100 V | - | 147W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFBF20PBF-BE3MOSFET N-CH 900V 1.7A TO220AB |
975 | 2.52 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 1.7A (Tc) | - | 8Ohm @ 1A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 490 pF @ 25 V | - | 54W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHP6N80E-BE3N-CHANNEL 800V |
1,000 | 2.55 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.4A (Tc) | 10V | 940mOhm @ 3A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±30V | 827 pF @ 100 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFBC40APBF-BE3MOSFET N-CH 600V 6.2A TO220AB |
721 | 2.61 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.2A (Tc) | - | 1.2Ohm @ 3.7A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±30V | 1036 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHP12N60E-BE3MOSFET N-CH 600V 12A TO220AB |
994 | 2.82 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | - | 380mOhm @ 6A, 10V | 4V @ 250µA | 58 nC @ 10 V | ±30V | 937 pF @ 100 V | - | 147W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFZ40PBF-BE3MOSFET N-CH 60V 50A TO220AB |
766 | 2.91 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | - | 28mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFZ44RPBF-BE3MOSFET N-CH 60V 50A TO220AB |
966 | 2.92 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | - | 28mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRLZ44PBF-BE3MOSFET N-CH 60V 50A TO220AB |
796 | 3.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | - | 28mOhm @ 31A, 5V | 2V @ 250µA | 66 nC @ 5 V | ±10V | 3300 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB9N60APBF-BE3MOSFET N-CH 600V 9.2A TO220AB |
3,606 | 3.22 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.2A (Tc) | - | 750mOhm @ 5.5A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

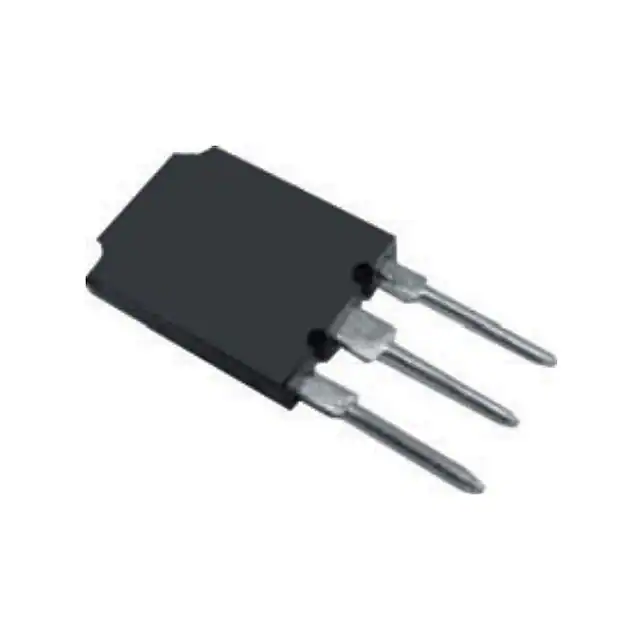

SIHFPS40N60K-GE3POWER MOSFET SUPER-247, 130 M @ |
100 | 7.56 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 130mOhm @ 24A, 10V | 5V @ 250µA | 330 nC @ 10 V | ±30V | 7970 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
